8

2.

Зафиксируйте сначала меньшую скобу на радиаторе за крепильную

рамку, далее, прямую скобу за выступ крепления. Прижмите радиатор

к процессору и зацепите его выгнутой скобой за крепильную рамку.

Убедитесь в том, что система надежно зафиксирована на своем месте.

3.

Подключите питание вентилятора к соответствующему разъему на
материнской плате (CPU Fan).

Installation of CPU cooling system:

Socket AMD AM2/AM2+/AM3/AM3+

Schema (B)

Attention!

Please, keep the original mounting for AMD on the motherboard.

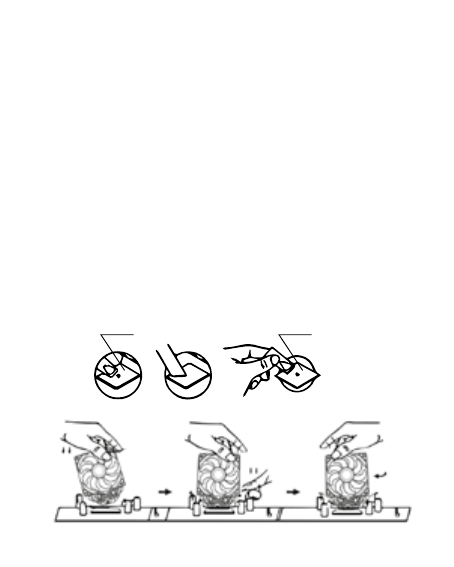

1.

Apply thermal grease to the processor, squeeze a small drop (4-5 mm

diameter) onto the center of the processor.

2.

First fix the smaller bracket on the radiator by the fixing frame, then the

straight bracket by the fixing tab. Press the heatsink onto the processor and

use the curved bracket to hook it onto the mounting frame. Make sure the

system is securely locked in place.

3.

Connect the fan power to the corresponding connector on the
motherboard (CPU Fan).

Step 1-  Installation

1. Remove the transparent label on cooler and CPU bottom, and spread thermal grease

    on the CPU surface evenly.

2. Clip two sides to each corresponding bracket.

3. Connect the cooler to power

4. Open the computer, once the cooler get power, it works then.

H120Z

Installation instruction

H120Z

Installation instruction

Step 2-  Fan and wire connection

1. A connects to Motherboard “CPU FAN”.

A

LGA775

LGA115X

CPU

THERMAL

GREASE

Intel

AMD

AMD AM2/AM2+/AM3/AM3+/AM4

Front

Back

LGA1136

Jinhua Building, Dalang Street, Longhua District, Shenzhen, China.
86-0755-23600230          support@alseyecorp.com
www.alseyecorp.com

© 2009-2020 ALSEYE CORPORATION LIMITED. All rights are reserved.

*All brand names and logos are trademarks of their respective companies and copyright belongs to them.

Thermal grease / Термопаста

CPU/Процесор/Процессор





Схема/
Schema (B)
