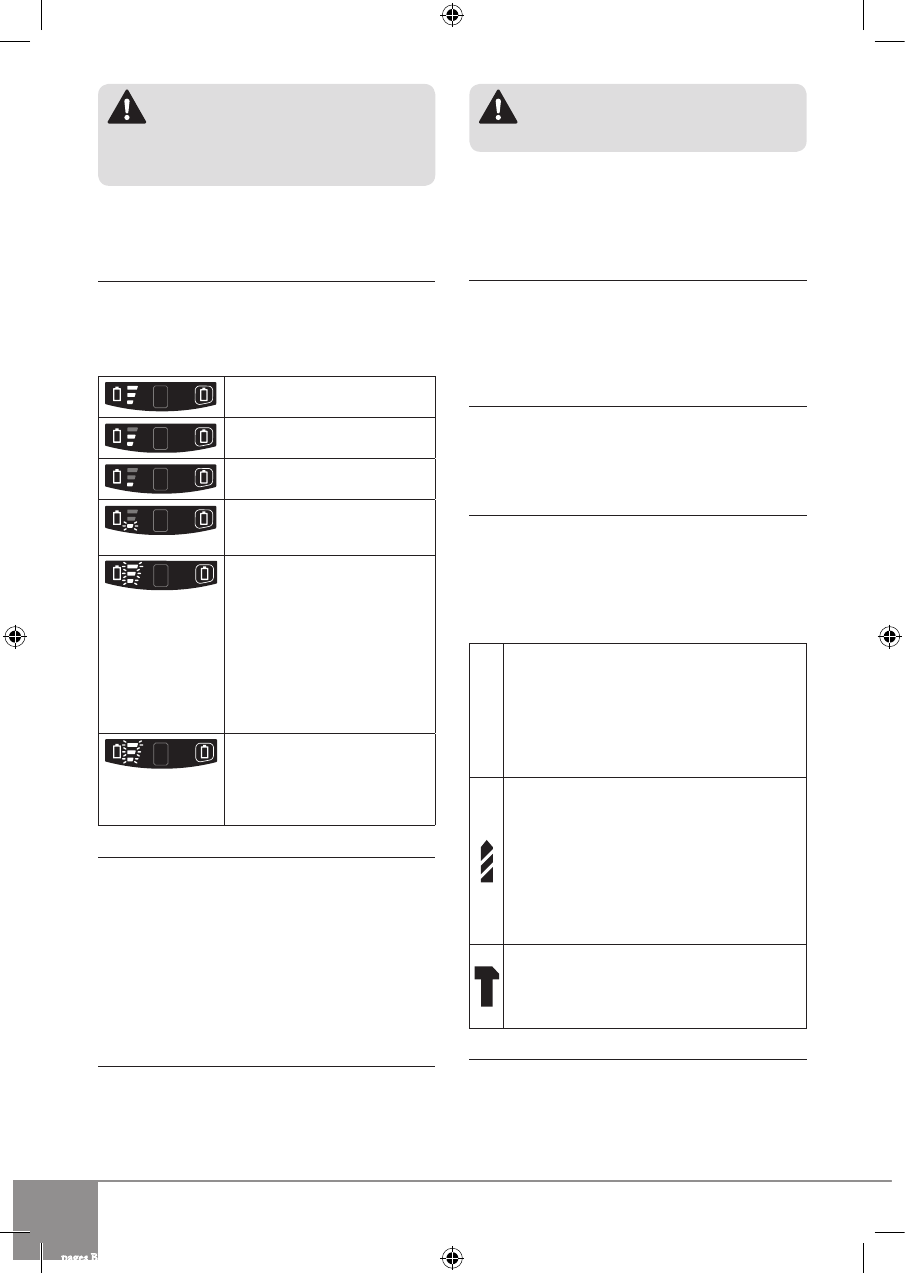

6

BR2 18Li HD • BUR2 18Li HD

EN

WARNING:

 Always set the forward/reverse

switch (6) in central position before any work on the

machine  e.  g.  fitting  and  removing  a  battery,  tool

change, transport, maintenance and storage.

To insert the battery:

 Place the battery into the base of

the machine and slide it until it locks with an audible click.
(C)

BATTERY STATE INDICATOR  (Fig.2)

Battery state can be checked on the LED display (4).

BUR2 18Li HD:

 To activate the indicator, press button

(8).

BR2 18Li HD:

 To activate the indicator, press ON/OFF

trigger switch (5).

Battery capacity: 60 - 100%

Battery capacity: 30 - 60%

Battery capacity: < 30%

Blinking light

Battery capacity: < 20%. The battery
must be recharged.

Blinking light

Problems with battery.

 The display is

activated upon pressing the trigger of
the switch. It may show one of the fol-
lowing battery states:

▪

Low  battery  ►

Battery has to be

recharged;

▪

Temperature protection has
been actuated

  ►  Battery  must

be cooled down prior to resuming
operation;

▪

Damaged or unrecognized bat-
tery

 ► Battery has to be replaced

Blinking light

Current overload:

 The display is

active during operation with the ma-
chine. Upon current overload the pro-
tection switches off the machine. To
resume normal operation press and
release switch (5) again.

LED WORK AREA LIGHT

The machine is equipped with LED light (7) to illuminate
the work area and improve visibility when drilling in areas

with insufficient light. To turn the LED light on press the

trigger of switch (5). LED light will automatically turn off 5
seconds after releasing the trigger of switch (5).
Electronic control may turn off the excessively overload-
ed  machine in order to protect it. This mode is signalled
by blinking LED work area light (7). The power tool can
be used for its intended purpose after switching it on
again.

REVERSING (Fig.3)

The extreme position of lever (6) to the right (viewed from
the rear) is equivalent to anti-clockwise rotation, the ex-
treme position to the left - to clockwise rotation. When

the ON/OFF switch (5) is depressed lever (6) can not be

actuated.

WARNING:

 Reversing can be performed only

when the spindle is not rotating!

The direction of rotation of the chuck is blocked in cen-
tral (neutral) position (A) of forward/reverse switch (6).
This position shall be used during transport, replacing

the  tool,  fitting  and  removing  the  auxiliary  handle  (12).

(BUR2 18Li HD)

SWITCHING ON - SWITCHING OFF

Switching on:

 press ON/OFF switch (5).

Switching off:

 release ON/OFF switch (5).

The power tool is equipped with a brake. The spindle
stops rotating immediately after releasing the switch le-
ver.

SMOOTH ELECTRONIC RPM CONTROL

Light  pressure  on  ON/OFF  trigger  switch  (5)  results  in

low rotation speed, further pressing the switch results in
smooth increase of the rpm to maximum upon reaching
the extreme position.

ADJUSTING THE TORQUE (Fig.4)

Rotate the torque adjustment collar (2) to one of its 25
settings to adjust the torque.
The range of 25 torque settings enables better control
when using the drill as a screwdriver thus preventing
over-tightening of the screws.
The larger the number on the torque adjustment collar
(2), the higher the torque.

1

÷

25

Screwdriving

Set the torque adjustment collar (2) against one
of 25 positions.
Select low setting range for working with small
screws or in soft materials.
Select high setting range for working with large
screws or in hard materials.

Drilling

Set the torque adjustment collar (2) against this
symbol to choose drilling in metal, wood, etc.
The power tool is equipped with an electric
brake. The spindle stops rotation immediately
after the switch trigger has been released. At
overloading in drilling mode release the switch
immediately to prevent prolonged overloading
and overheating the motor.

Impact drilling (BUR2 18Li HD)

Set the torque adjustment collar (2) against this
symbol to choose impact drilling in bricks, con-
crete, tiles, etc.

SPEED SELECTOR SWITCH (Fig. 5)

The two-speed selector switch (3) enables you to select
the appropriate gear with the optimum speed and torque
to suit the application.
