 English |

17

Bosch Power Tools

2 609 005 110 | (30.5.11)

The vibration emission level given in this information sheet
has been measured in accordance with a standardised test
given in EN 60745 and may be used to compare one tool with
another. It may be used for a preliminary assessment of expo-
sure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or poorly maintained,
the vibration emission may differ. This may significantly in-
crease the exposure level over the total working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working pe-
riod.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.

Declaration of Conformity

We declare under our sole responsibility that the product de-
scribed under “Technical Data” is in conformity with the fol-
lowing standards or standardization documents: EN 60745
according to the provisions of the directives 2004/108/EC,
2006/42/EC.
Technical file at:
Robert Bosch GmbH, PT/ESC,
D-70745 Leinfelden-Echterdingen

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

09.05.2011

Assembly

f

Before any work on the machine itself, pull the mains plug.

Dust extraction  (PSB 650 RA / PSB 750 RCA)

(see figures A

–

F)

f

Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.

– As far as possible, use a dust extraction system suita-

ble for the material.

– Provide for good ventilation of the working place.

– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the
materials to be worked.

f

Prevent dust accumulation at the workplace.

Dusts can

easily ignite.

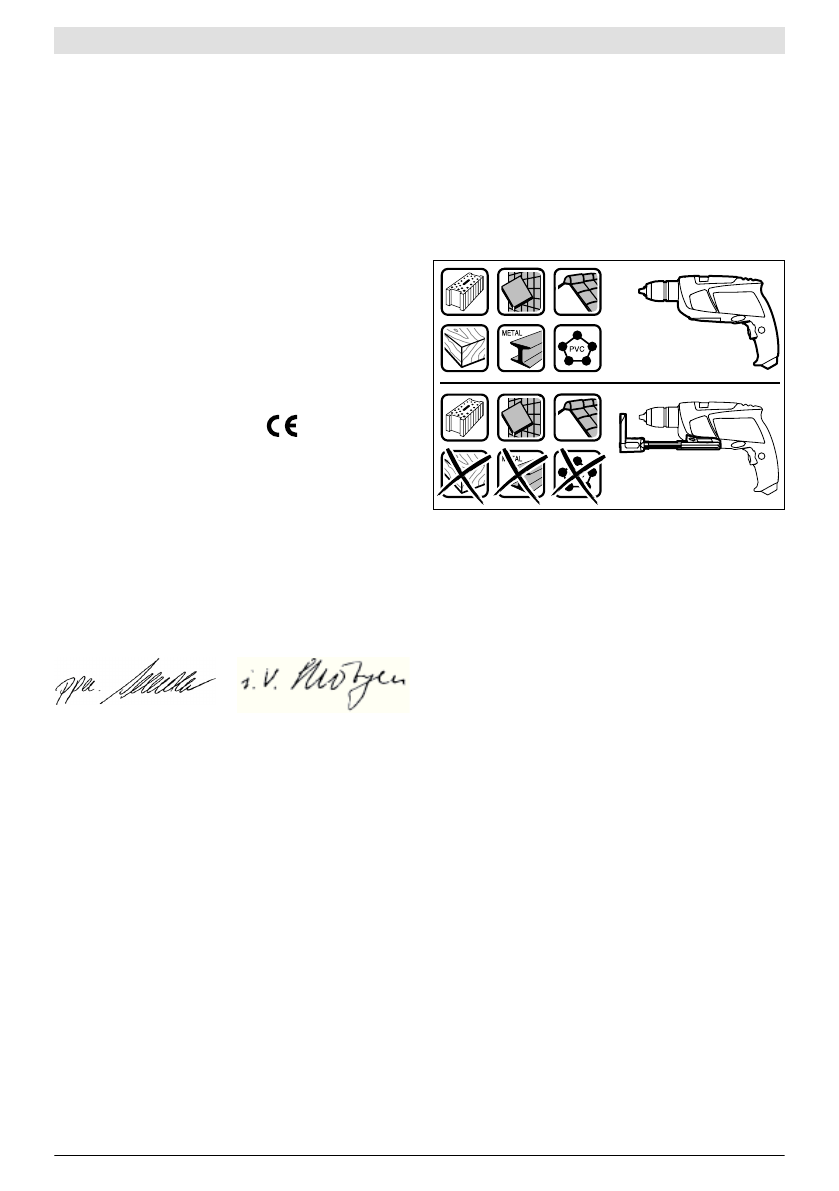

f

Use the dust/chip extraction only when working con-
crete, brick and brickwork.

Wood or plastic chips can

easily lead to clogging.

f

WARNING Fire hazard! Do not work metallic materials
with the extraction device mounted.

Hot metal chips can

ignite parts of the extraction device.

To achieve optimum extraction results, please observe the
following notes:
– Pay attention that the extraction device faces flush against

the workpiece or the wall. This also makes drilling at a right
angle easier.

– When using the extraction device, always work with the

maximum speed.

– After reaching the desired drilling depth, pull the drill bit

out of the drill hole first and then switch off the impact drill.

– Use the extraction device only with the filter element

17

mounted, as otherwise dust/chips could access the interi-
or of the power tool and cause damage.

– Check the condition of the filter element

17

 regularly. Re-

place a damaged filter element immediately.

– The dust protection ring

19

 can wear, especially when

working with large drill-bit diameters. Replace the dust
protection ring when worn/damaged.

Mounting the Extraction Device (see figure A)

Guide the extraction device

11

 from the front toward the bot-

tom side of the impact drill. Pay attention that the extraction
device

11

 faces flush against the casing and that it is locked.

Cleaning the Extraction Device (see figures B – D)

The dust collector

12

 is sufficient for approx. 10 drillings with

a drilling diameter of 10 mm.
When the extraction force diminishes or when the level indi-
cator

13

 is full, the dust collector

12

 must be emptied. For

this, press on the riffled surface of the release button

16

 and

take off the dust collector

12

.

Empty and clean the dust collector

12

. Clean the filter ele-

ment

17

 by gently striking or tapping against it.

Check the filter element

17

 for damage and replace it as re-

quired.

Dr. Egbert Schneider
Senior Vice President
Engineering

Dr. Eckerhard Strötgen
Head of Product
Certification
