ENGLISH

(Original instructions)

Read

Instructions

Manual

Use Eye

Protection

Use Ear

Protection

V ........

Volts

A ........

Amperes

Hz .......

Hertz

W ........

  Watts

min .....

minutes

.....

Alternating

Current

.....

Direct

Current

n

0

  .......

No-Load

Speed

 ......

Class II

Construction

....

Earthing

Terminal

....

Safety Alert

Symbol

.../min..

Revolutions

or Recipro-

cation per

minute

When assessing vibration exposure to

determine safety measures required by

2002/44/EC to protect persons regularly

using power tools in employment, an

estimation of vibration exposure should

consider, the actual conditions of use and

the way the tool is used, including taking

account of all parts of the operating cycle

such as the times when the tool is switched

off and when it is running idle in addition to

the trigger time.

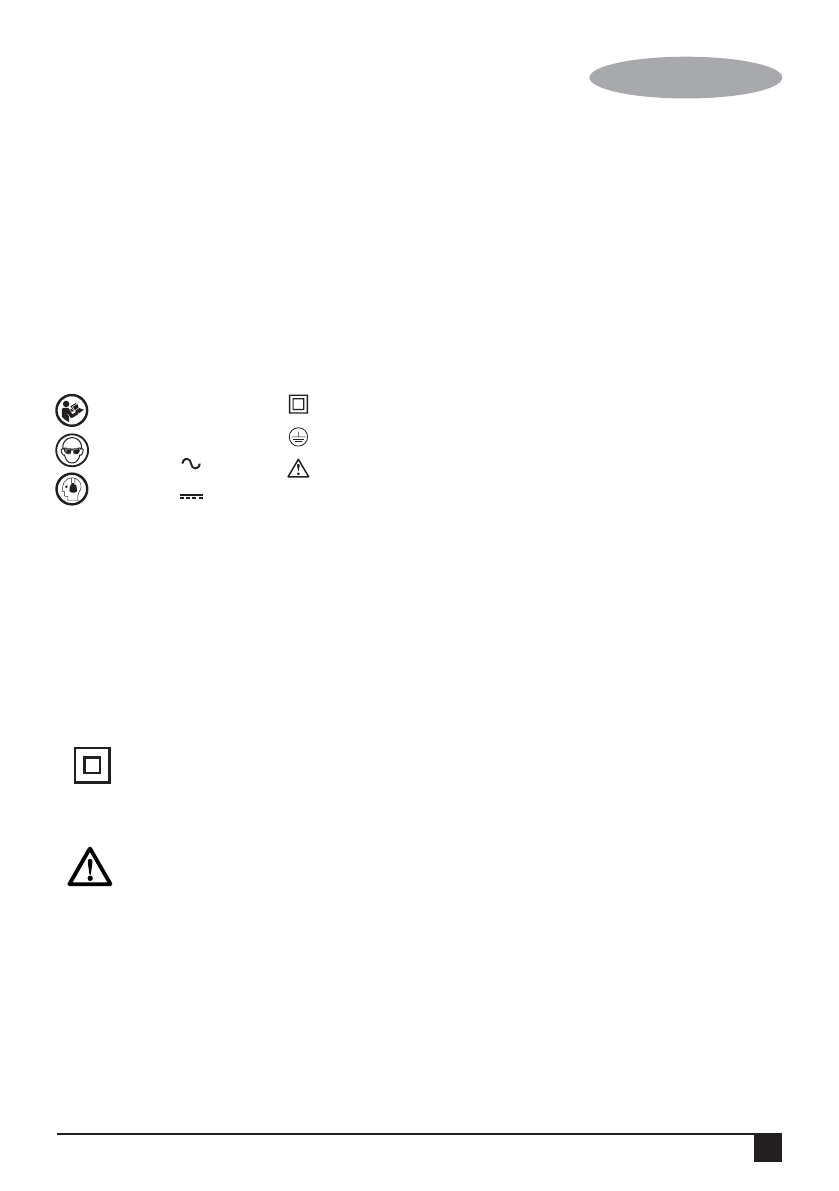

Labels on tool

The label on your tool may include the

following symbols along with the date code:

Position of date barcode

The Date Code, which also includes the year

of manufacture, is printed into the housing.

Example:

2014 XX JN

             Year of manufacturing

Electrical safety

Your tool is double insulated;

therefore no earth wire is required.

Always check that the main voltage

corresponds to the voltage on the

rating plate.

Warning!

 If the power cord is

damaged, it must be replaced by

the manufacturer, authorized

BLACK+DECKER Service Center or

an equally qualified person in order

to avoid damage or injury. If the

power cord is replaced by an

equally qualified person, but not

authorized by BLACK+DECKER, the

warranty will not be valid.

Features (Fig. A)

1.  On/Off switch

2.  Lock-on button

3.  Drilling mode selector

4.  Chuck

Assembly

Warning!

 Before assembly, make sure that

the tool is switched off and unplugged.

Fitting a drill bit or screwdriver bit keyed

chuck (Fig. B)

•  Open the chuck by turning the sleeve (5)

counterclockwise.

•  Insert the bit shaft (6) into the chuck.

•  Insert the chuck key (7) into each hole (8)

in the side of the chuck and turn

clockwise until tight.

Removing and refitting the chuck (Fig. C)

•  Open the chuck as far as possible.

•  Remove the chuck retaining screw,

located in the chuck, by turning it

clockwise using a screwdriver.

•  Tighten an Allen key into the chuck and

strike it with a hammer as shown.

•  Remove the Allen key.

•  Remove the chuck by turning it

counterclockwise.

•  To refit the chuck, screw it onto the

spindle and secure it with the chuck

retaining screw.

Use

Warning!

 Let the tool work at its own pace.

Do not overload.

Warning!

 Before drilling into walls, floors or

ceilings, check for the location of wiring and

pipes.

Selecting the direction of rotation

(Applicable for KR5010,KR5010V)

For drilling and for tightening screws, use

forward (clockwise) rotation. For loosening

screws or removing a jammed drill bit, use

reverse (counterclockwise) rotation.

•  To select forward rotation, push the

Forward/Reverse slider to the centre

position.
