22

 | English

The vibration level given in these instructions has been
measured in accordance with a standardised measuring pro-
cedure and may be used to compare power tools. It can also
be used for a preliminary estimation of exposure to vibra-
tion.
The stated vibration level applies to the main applications of
the power tool. However, if the power tool is used for differ-
ent applications, with different application tools or poorly
maintained, the vibration level may differ. This can signific-
antly increase the exposure to vibration over the total work-
ing period.
To estimate the exposure to vibration accurately, the times
when the tool is switched off or when it is running but not ac-
tually being used should also be taken into account. This can
significantly reduce the exposure to vibration over the total
working period.
Implement additional safety measures to protect the oper-
ator from the effects of vibration, such as servicing the
power tool and application tools, keeping the hands warm,
and organising workflows correctly.

Fitting

Fitting protective equipment

u

Pull the plug out of the socket before carrying out any
work on the power tool.

Note:

If the grinding disc breaks during operation or the

holding fixtures on the protective guard/power tool become
damaged, the power tool must be sent to the after-sales ser-
vice immediately; see the "After-sales service and advice on
using products" section for addresses.

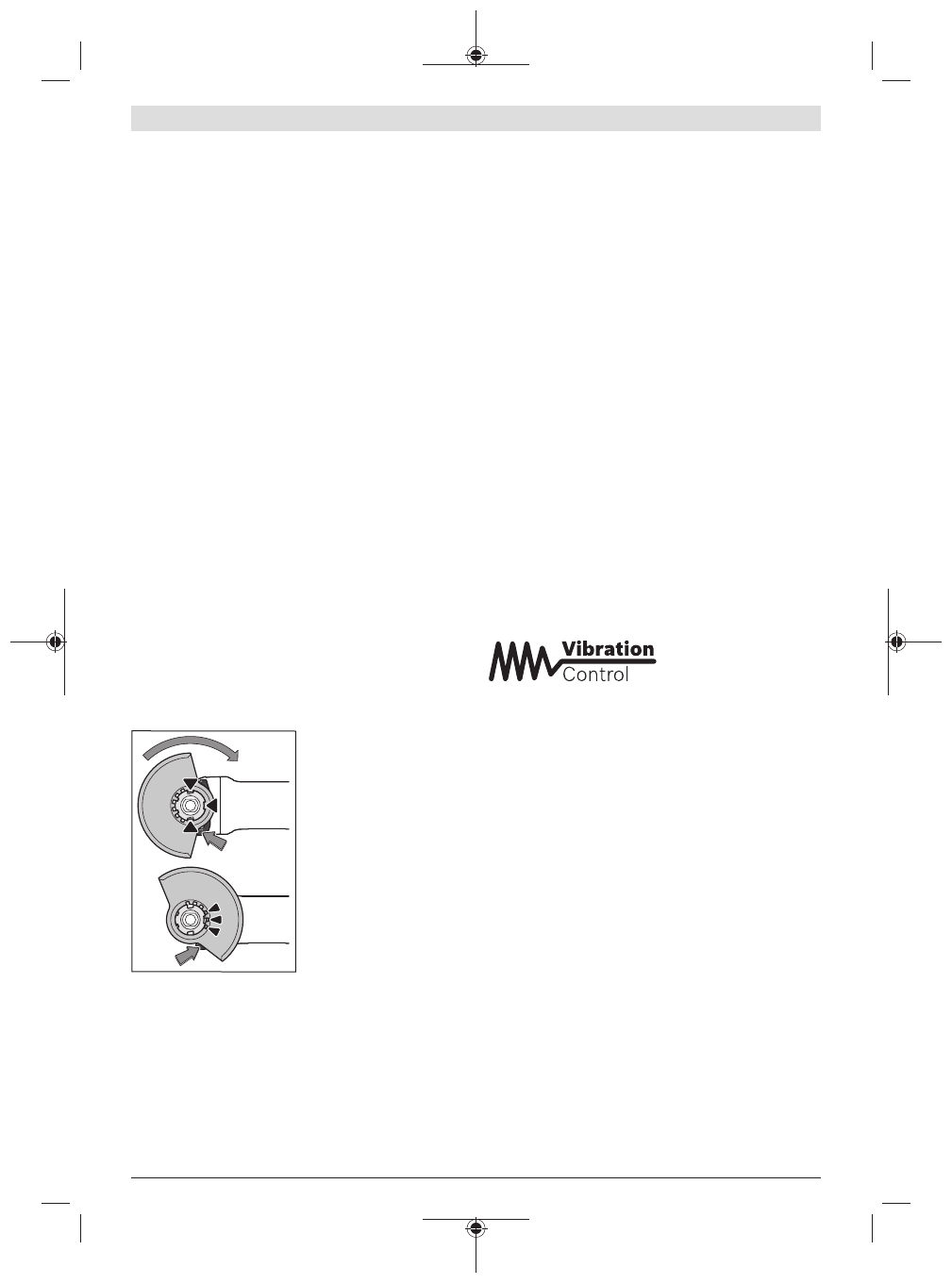

Protective guard for grinding

Place the protective guard

(7)

 onto the holder on the

power tool until the coding
cams of the protective
guard are aligned with the
holder. When doing so,
press and hold the unlock-
ing lever

(1)

.

Press the protective guard

(7)

 onto the spindle collar

until the shoulder of the
protective guard is sitting
on the flange of the power
tool and rotate the protect-
ive guard until it audibly

clicks into place.
Adjust the position of the protective guard

(7)

 to meet the

requirements of the operation. To do this, push the unlock-
ing lever

(1)

 upward and rotate the protective guard

(7)

 into

the required position.

u

Always position the protective guard

(7)

such that all

three red cams on the unlocking lever

(1)

engage in

the corresponding openings on the protective guard
(7).

u

Adjust the protective guard

(7)

such that sparking in

the direction of the operator is prevented.

u

The protective guard

(7)

must only be adjustable

while the unlocking lever (1)

is actuated. Otherwise,

the power tool must not be used any more under any
circumstances and must be sent to the after-sales ser-
vice.

Note:

The coding cams on the protective guard

(7)

 ensure

that only a protective guard that is suitable for the power
tool can be fitted.

Protective guard for cutting

u

Always use the protective guard for cutting (9) when
cutting bonded abrasives.

u

Provide sufficient dust extraction when cutting stone.

The protective guard for cutting

(9)

 is fitted in the same way

as the protective guard for grinding

(7)

.

Extraction guard for cutting with a guide block

The extraction guard for cutting with a guide block

(18)

 is fit-

ted in the same way as the protective guard for grinding

(7)

.

Side handle

u

Do not operate your power tool without the side
handle

(6)

.

Screw the side handle

(6)

 on the left or right of the machine

head depending on how your are working.

Low-vibration auxiliary handle

The low-vibration auxiliary
handle reduces vibration,
enabling the tool to be used
safely and more comfort-

ably.

u

Do not make any alterations of any kind to the auxili-
ary handle.

Do not continue to use a damaged auxiliary handle.

Hand guard

u

Always fit the hand guard (14)

 when working with the

cup brush/disc brush

(15) or diamond core cutter

(20).

Attach the hand guard

(14)

 to the auxiliary handle

(6)

.

Fitting and removing abrasive tools

u

Pull the plug out of the socket before carrying out any
work on the power tool.

u

Do not touch grinding and cutting discs until they have
cooled down.

 The discs can become very hot while work-

ing.

u

Only use original X-LOCK application tools that carry the
X-LOCK logo. A maintained clamping gauge of max.
1.6 mm can only be guaranteed with original X-LOCK ap-
plication tools. A higher clamping gauge can lead to insec-
ure clamping, potentially causing the clamp tool to come
loose.

u

X-LOCK application tools do not need additional clamping
flanges or support flanges.
