EN

59

1

1

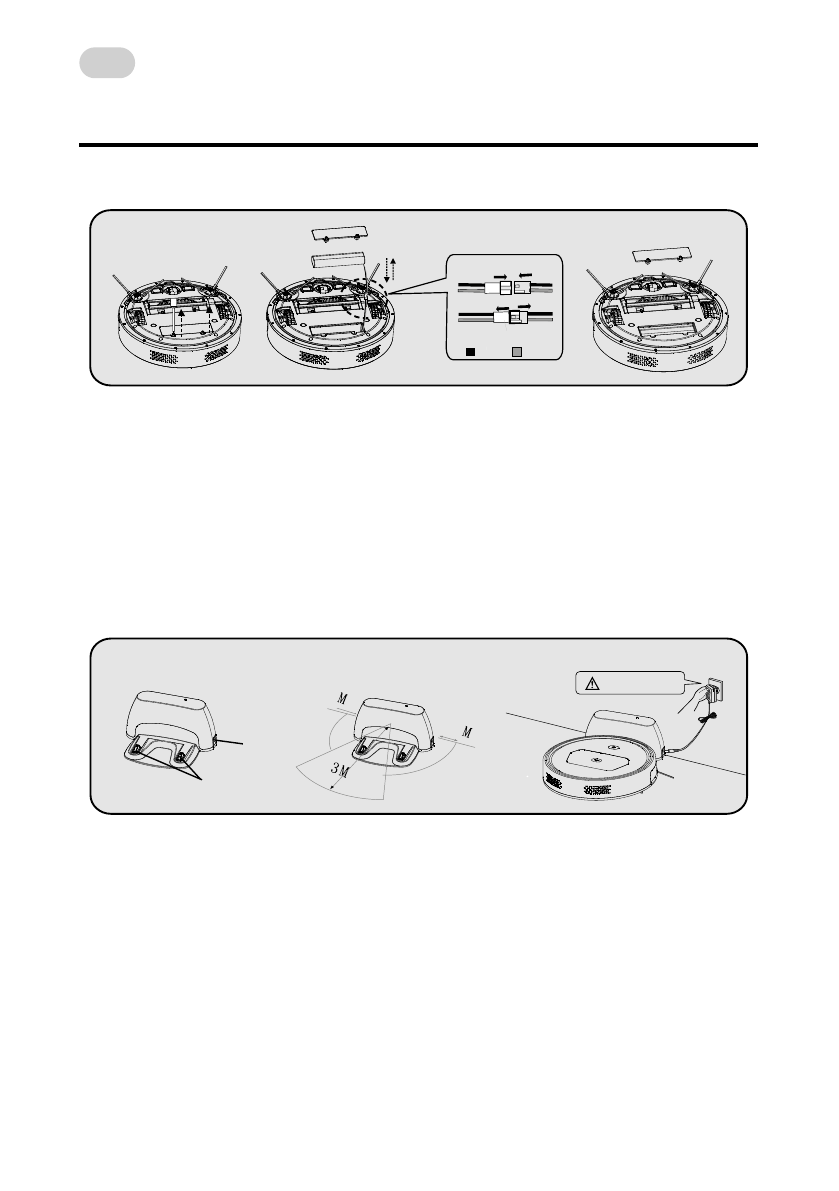

3. Product Installation

3.1 Installation and Removal of Main Body Battery

Aim at the terminal and insert it
during wiring.

Unplug it in the reverse direction during
unwiring.

Adapter socket

Charging Terminal

Danger! Electric shock.

Black

Red

1.  Loosen the screws on the battery cover with a screwdriver and open the cover.
2.  Wiring Method: Take out the connectors of the battery and the cleaner first, and then

join them according to the corresponding color direction. Unwiring Method: Unplug
the terminal of battery line in the reverse direction.

3.  Put the battery into the compartment as per the direction shown in the figure first, and

then place the well-arranged terminals and wires into the space. Finally put the cover on
and lock it with screws.

3.2 Installation of Charging Station

1.  Place the charging base on the flat ground that is perpendicular to the wall. There

is no obstacle within the range of 3 meters in length and 1 meter in width. Press the
charging base with force to make it more firmly pasted on the floor. After plugging in
the adapter, insert the DC plug into the DC port.

2.  Connect the Adapter to the Docking Station and the power supply. Sort out the

connecting cable of the adapter carefully to make the cleaner wound when it works.

Tips:

The docking station can’t be placed on the carpet. It is recommended to place it at a

fixed position for a long time. Please don’t move the docking station artificially during the
cleaning.
