CONNECTIONS

CONNECTING ANTENNAS

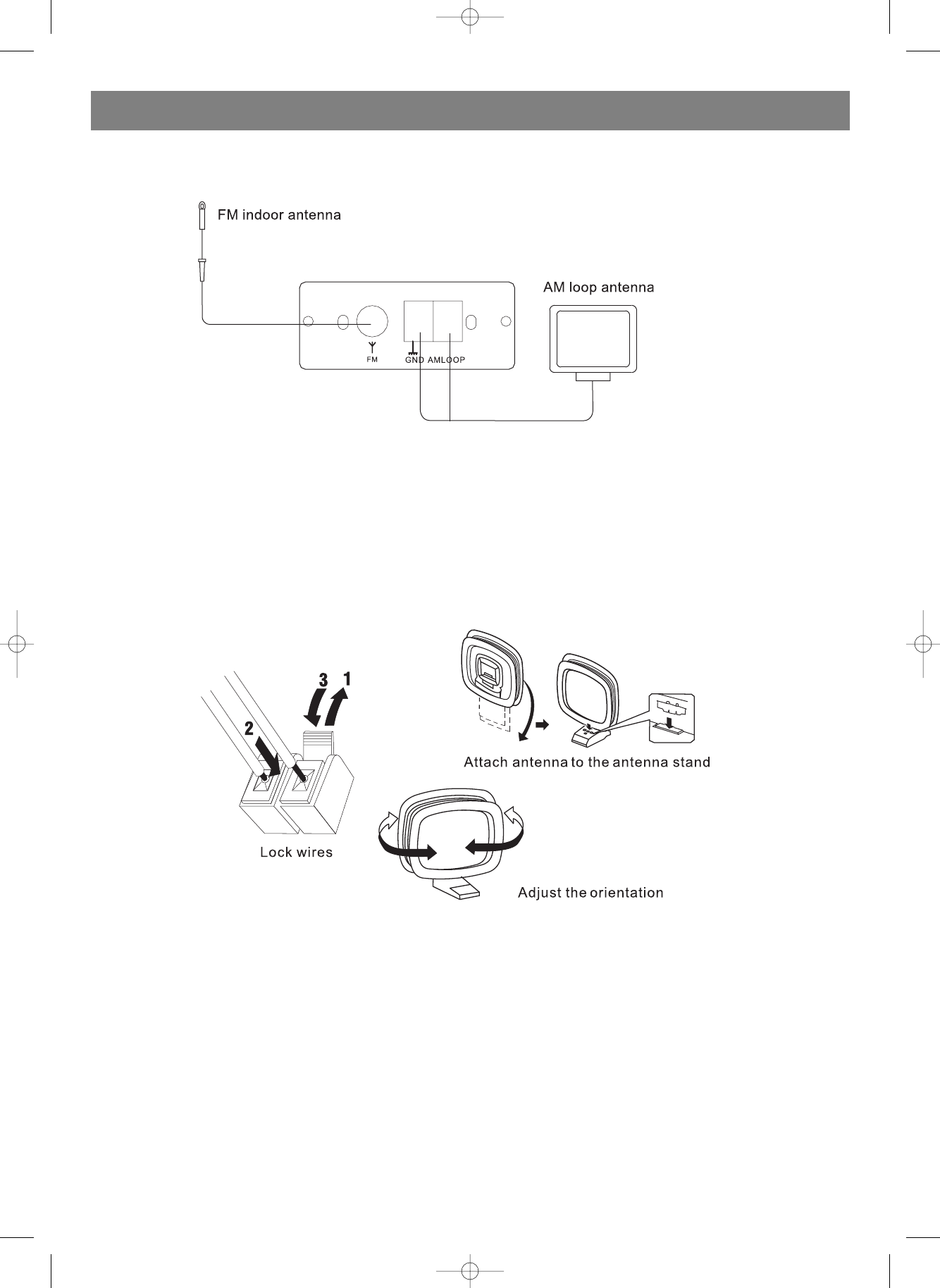

Each antenna should be connected to the designated terminals correctly, as shown in the left figure. Both AM and FM antennas are
included with this unit (only for TH-570A). In general, these antennas will probably provide sufficient signal strength. Nevertheless,
a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience poor reception quality
only with the indoor antennas, the use of an outdoor antenna may result in improvement.

CAUTION:

Never use indoor and outdoor FM antennas at the same time.

CONNECTING THE AM LOOP ANTENNA

• Press the tab and unlock the terminal hole.
• Connect the AM loop antenna lead wires to the AM LOOP and GND terminals.
• Return the tab back to the original position to lock the lead wires. Lightly pull on the lead wire to confirm a good connection.
• Attach the loop antenna to the antenna stand.
• Orient the AM loop antenna so that the best reception is obtained.

Remarks:
• The AM loop antenna should be placed apart from the main unit. The antenna may be hung on the wall.
• The AM loop antenna should be kept connected, even if an outdoor AM antenna is connected to this unit.
