The following instructions are meant for
a qualified installer, in order that the
operations of installation, regulation, and
service are executed according to the
existing regulations.
Whenever changes are mode involving
the disconnection of the machine it is
necessary to proceed with maximum
caution.

THE MANUFACTURING
COMPANY DECLINES ANY
RESPONSABILITY FOR
POSSIBLE DAMAGES
RESULTING FROM AN
INSTALLATION WHICH DOESN'T
COMPLY WITH THE RULES IN
FORCE.

Installation environnement

Warning - This unit can be installed and
can work only in constantly ventilated
rooms, according to rules in force. In
order to make the gas unit work properly,
it is necessary that air sufficient to gas
combustion can naturally flow in the
room. (The installer must follow the rules
in force).
The air flow into the room must come
directly through openings of external
walls. These openings (or opening)
should be realized in such a way not to
be occluded both from inside and
outside.
Installation and maintenance must be
carried out by a qualified technician, in
c o m p l i a n c e   w i t h   r u l e s   i n   f o r c e ,
particularly NBND 51003.
The electric coonection must be carried
out in compliance with rule NBN.

Instructions for the installer

Our responsability will not be involved in
case of accidents caused by a defective
or non existent earth connection.

Combustion products
discharge

Gas cooking units must discharge
combustion products through hoods
directly connected to flues or outside.

Positioning

This appliance has been designed to be
placed close to furniture units not
exceeding the height of the working level.
The distance between the hob and the
side wall/furniture (if present) should be
minimum 450 mm.

Levelling

The appliance is provided with adjust-
able small feet placed in the back cor-
ners of the base.
By adjusting the small feet it is possible
to ensure a uniform distribution of the liq-
uids contained in pans or pots.

A

B

C

E

D

B

A

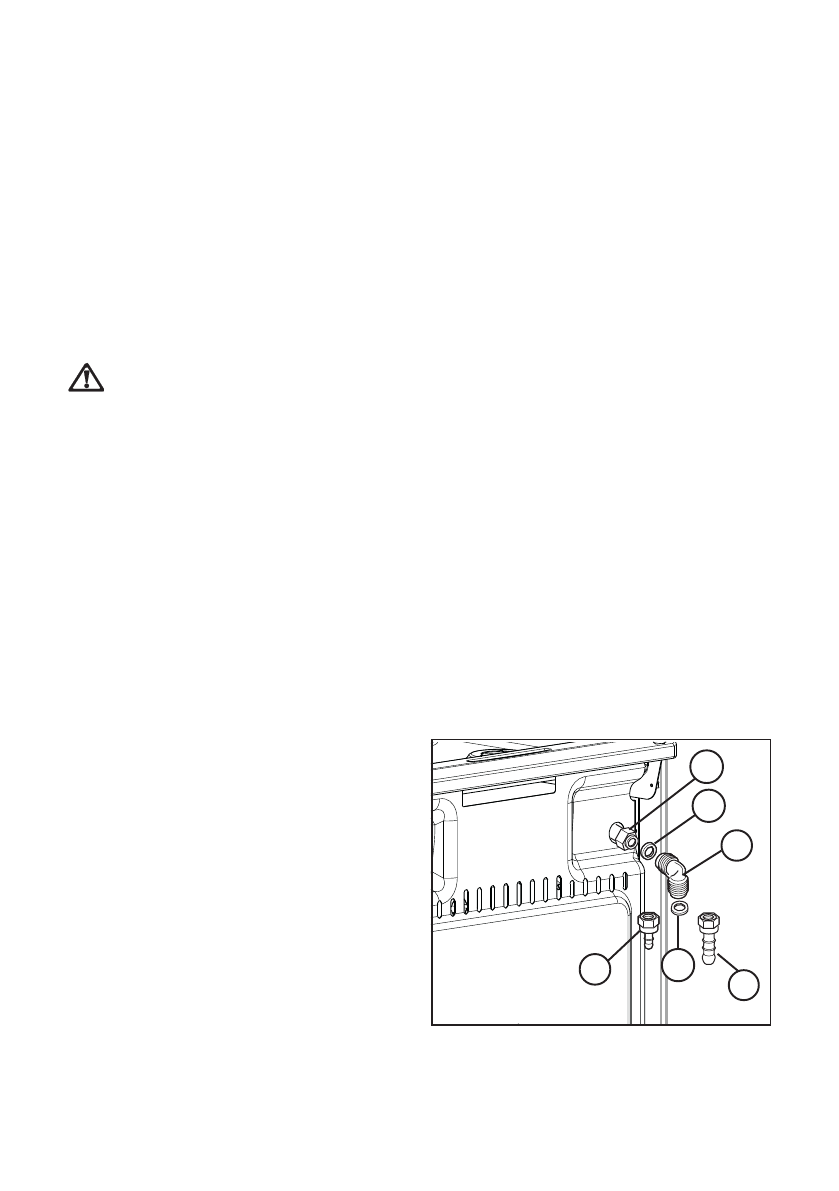

Gas Rail

B

Gasket

C

Elbow

D

LPG  Rubber  Pipe  Holder

E

Pipe  Holder
