6 ENGLISH

increases potential for kickback. Keep blade clean

by first removing it from tool, then cleaning it with

gum and pitch remover, hot water or kerosene.

Never use gasoline.

12.

Wear a dust mask and hearing protection when

use the tool.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity

with product (gained from repeated use) replace

strict adherence to safety rules for the subject

product. MISUSE or failure to follow the safety

rules stated in this instruction manual may cause

serious personal injury.

FUNCTIONAL

DESCRIPTION

CAUTION:

Always be sure that the tool is

switched off and unplugged before adjusting or

checking function on the tool.

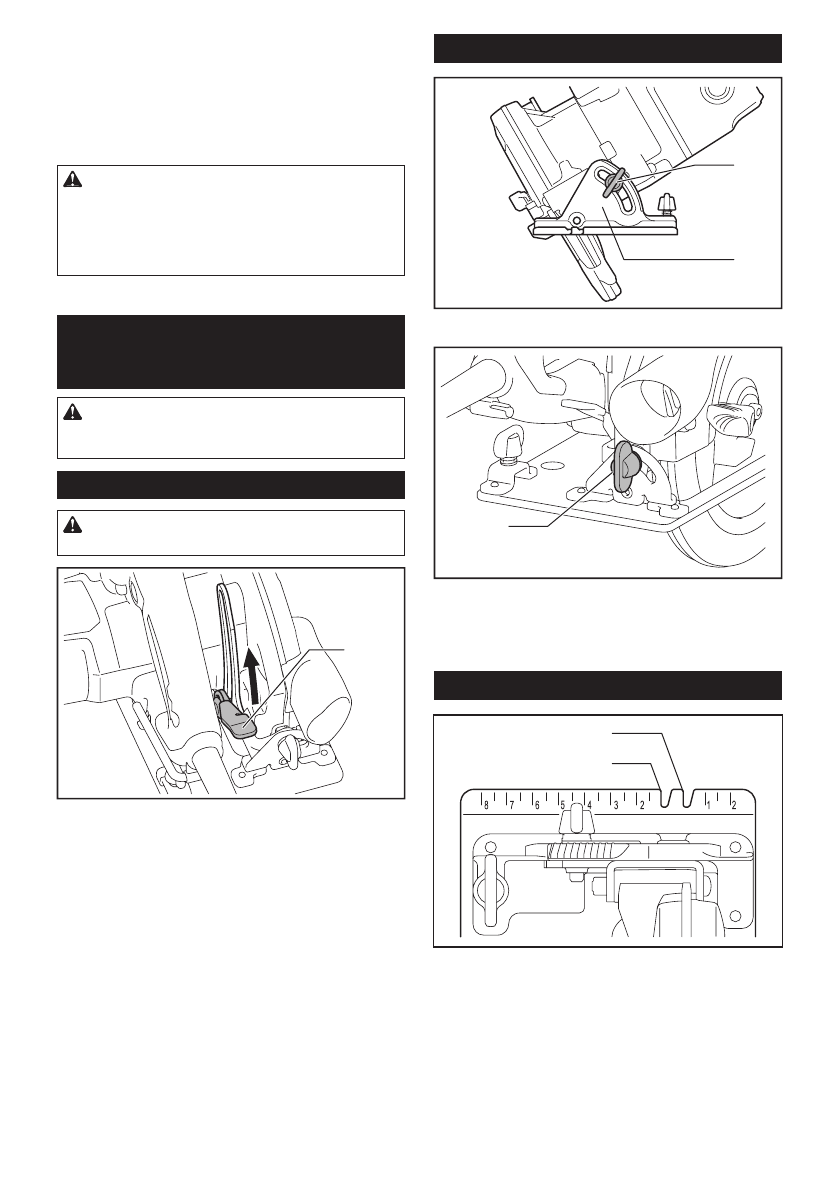

Adjusting depth of cut

CAUTION:

After adjusting the depth of cut,

always tighten the lever securely.

1

►

1.

 Lever

Loosen the lever on the depth guide and move the base

up or down. At the desired depth of cut, secure the base

by tightening the lever.

For cleaner, safer cuts, set cut depth so that no more

than one blade tooth projects below workpiece. Using

proper cut depth helps to reduce potential for danger-

ous KICKBACKS which can cause personal injury.

Bevel cutting

1

2

►

1.

 Clamping screw

2.

 Bevel scale plate

1

►

1.

 Clamping screw

Loosen the clamping screws. Set for the desired angle

(0° - 45°) by tilting accordingly, then tighten the clamp-

ing screws securely.

Sighting

1

2

►

1.

 Cutting line (0° position)

2.

 Cutting line (45°

position)

For straight cuts, align the 0° position on the front of the

base with your cutting line. For 45° bevel cuts, align the

45° position with it.
