5

ENGLISH

(Original instructions)

Residual risks

Additional residual risks may arise when using the tool which

may not be included in the enclosed safety warnings. These

risks can arise from misuse, prolonged use etc. Even with

the application of the relevant safety regulations and the

implementation of safety devices, certain residual risks can

not be avoided. These include:
•  Injuries caused by touching any rotating/moving parts.
•  Injuries caused when changing any parts, blades or

accessories.

•  Injuries caused by prolonged use of a tool. When using

any tool for prolonged periods ensure you take regular

breaks.

•  Impairment of hearing.
•  Health hazards caused by breathing dust developed

when using your tool (example:- working with wood,

especially oak, beech and MDF.)

Label on the tool

Electrical safety

Double insulation measures are taken in this power

tool, so no grounding is needed. Please check

whether the voltage of power supplied is consistent

with the voltage on the nameplate or not.

•  If the wire is damaged, it should be replaced by the

manufacturer or a service center authorized by

STANLEY, to avoid danger.

Part name

The power tool includes some or all of the following parts:

1.  Switch

2.  Oil-injection inlet cap

3.  Modes selector

4.  Tool chuck (tool holder)

5.  sleeve

6.  Side handle

7.  Depth stop

8.  Botton cover

Assembly

Warning!

 Before assembly, please ensure that the power

tool is powered off and the power plug of the tool is

unplugged from the power source.

Install the side handle

Warning!

 When holes are drilled in the concrete, bricks and

other surfaces, please grip the side handle to ensure safe

operation.

•  The side handle (6) can be rotated to any side, which

can facilitate the use of the power tool in any position.

•  Rotate the side handle (6) counterclockwise, to unlock

and release the power tool, rotate it to the desired

position.

•  Rotate the side handle clockwise to tighten it adequately.

Fitting an accessory (Fig. A)

•  Please clean the drill shank and lubricate the drill bit

before installing it.

•  Pull back and hold the slide-sleeve(5), and then screw

the drill bit into the chuck, press it internally until it is

fastened, the drilling bit can be automatically locked in

situ. Pull the drill bit outwards to test whether it has been

adequately locked in the correct position or not.

•  Pull back and hold the drill sleeve(5) clamp, you can

remove the drill bit.

Use

Warning!

 Please use the power tool under normal load; no

overloading is permitted.

Read

Instructions

Manual
Use Eye

Protection
Use Ear

Protection

V ........   Volts
A ........  Amperes

Hz .......  Hertz
W ........  Watts
min .....  minutes

.....  Alternating

Current

.....  Direct

Current

n

0

  .......  No-Load

Speed

 ......  Class II

Construction

....  Earthing

Terminal

....  Safety Alert

Symbol

.../min..  Revolutions

or Recipro-

cation per

minute

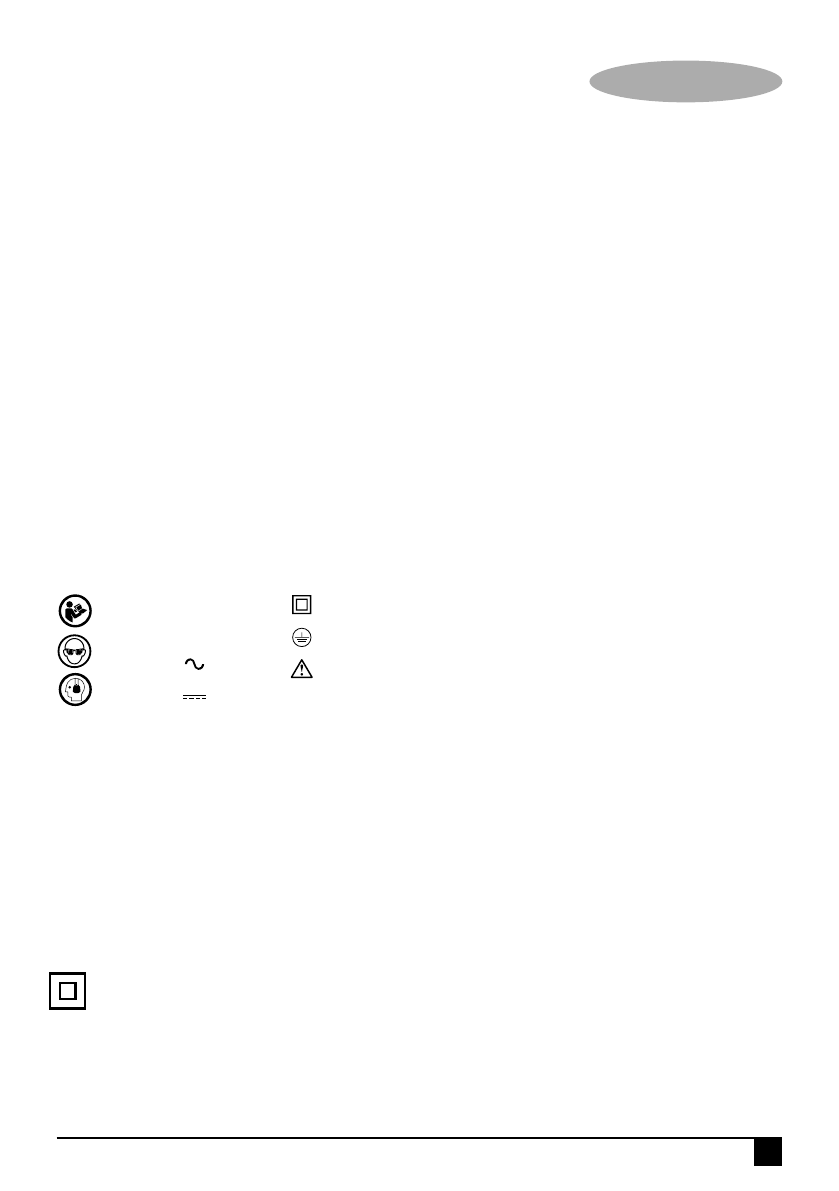

The label on your tool may include the following symbols:

Position of date barcode

The Date Code, which also includes the year of

manufacture, is printed into the housing.

Example:

2014 XX JN

             Year of manufacturing
