 English |

9

Bosch Power Tools

1 609 92A 0FH | (10.12.13)



Secure the workpiece.

A workpiece clamped with clamp-

ing devices or in a vice is held more secure than by hand.



Insert the SDS-max application tool:

Check the latching

by pulling the tool.



Replace a damaged dust protection cap immediately.

The dust protection cap largely prevents the penetration of
drilling dust into the tool holder during operation. When in-
serting the tool, pay attention that the dust protection cap
is not damaged.



Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health and cause allergic reactions, lead to res-
piratory infections and/or cancer.

 Materials containing

asbestos may only be worked by specialists.

–

Provide for good ventilation of the working place.

–

It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the
materials to be worked.



To save energy, only switch the power tool on when using
it.

Products sold in GB only

: Your product is fitted with a

BS 1363/A approved electric plug with internal fuse (ASTA
approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an author-
ised customer service agent. The replacement plug should
have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains sock-
et elsewhere.

Products sold in AUS and NZ only

: Use a residual current de-

vice (RCD) with a rated residual current of 30 mA or less.

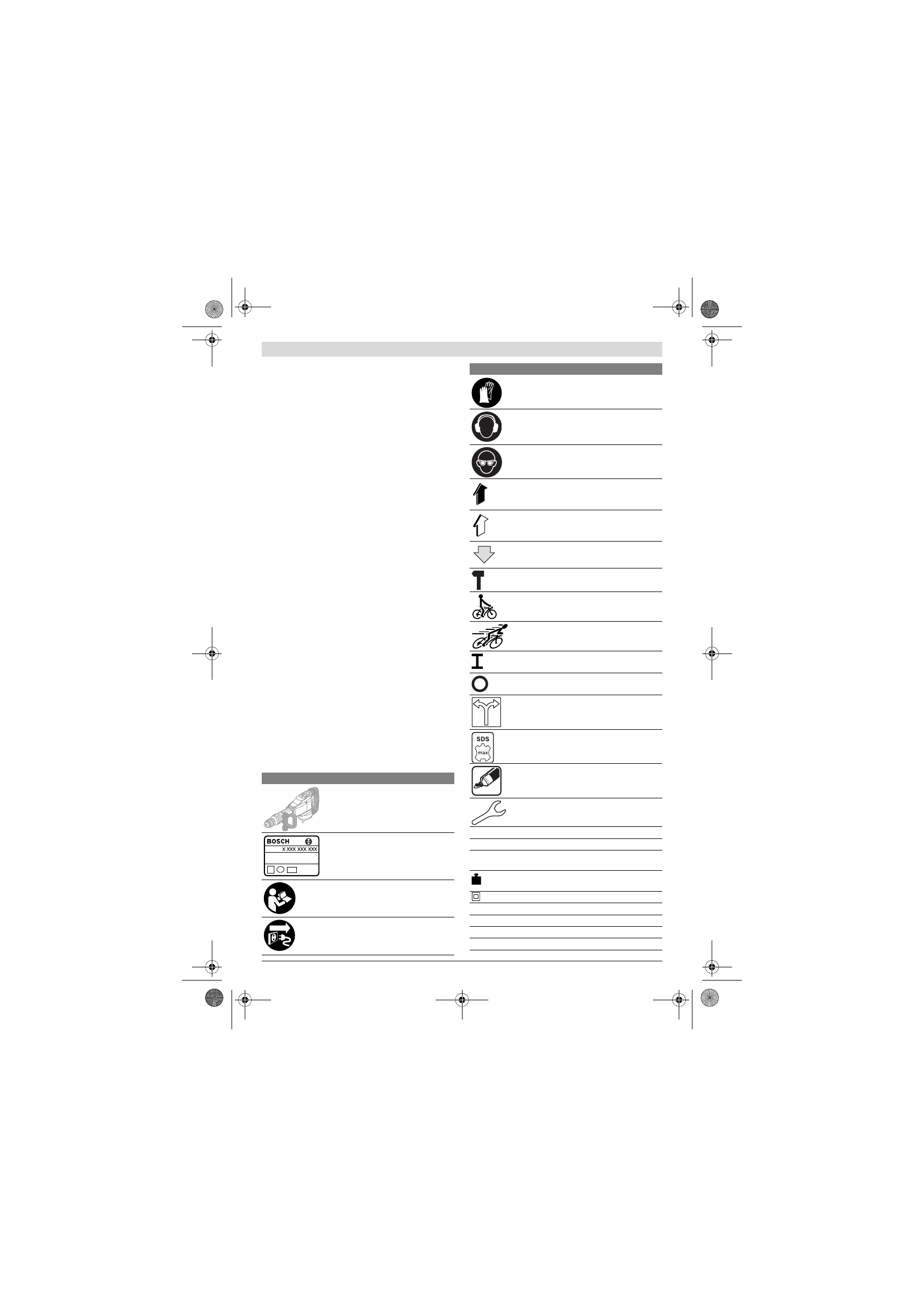

Symbols

The following symbols are important for reading and under-
standing the operating instructions. Please take note of the
symbols and their meaning. The correct interpretation of the
symbols will help you to use the machine in a better and safer
manner.

Symbol

Meaning

GSH 11 VC: Demolition Hammer

Grey-marked area: Handle
(insulated gripping surface)

Article number

Read all safety warnings and all
instructions

Before any work on the machine itself,
pull the mains plug from the socket
outlet

Wear protective gloves

Always wear ear protection.

Wear safety glasses/goggles

Movement direction

Reaction direction

Next step of action

Chiselling

Low impact rate

High impact rate

Switching On

Switching Off

Vario-Lock

Tool holder

Apply a light coat of grease to the shank
end of the application tool

Service Indicator

P

1

Rated power input

n

S

Impact rate

E

Impact energy per stroke according
to EPTA-Procedure 05/2009
Weight according to
EPTA-Procedure 01/2003
Protection class

L

wA

Sound power level

L

pA

Sound pressure level

K

Uncertainty

a

h

Vibration total value

Symbol

Meaning
