www.timberk.com • electric convector heater
6
Mounting of convector heater on legs
1. Take the legs from the convector heater box.
2. Standard set of legs (number in one pack) includes:
• two special supports,
• four screws to fix leg supports to the convector heater.
3. Turn the appliance upside down. Remember that the convector heater
should be mounted on the legs only when you unplug it!
4. Attach the legs to the bottom part of the appliance and make sure that
mounting holes match with holes on the appliance case. Try to dispose
legs in alignment with each other and to the convector surface.
5. Use screws included in the set (see Clause 2) to fix the legs to the
convector heater. Perhaps, you will have to apply some physical effort to
provide the reliable fixing.
6. Check the reliability of fixing once again. Turn the appliance to original
position and place it upright on plane horizontal surface.

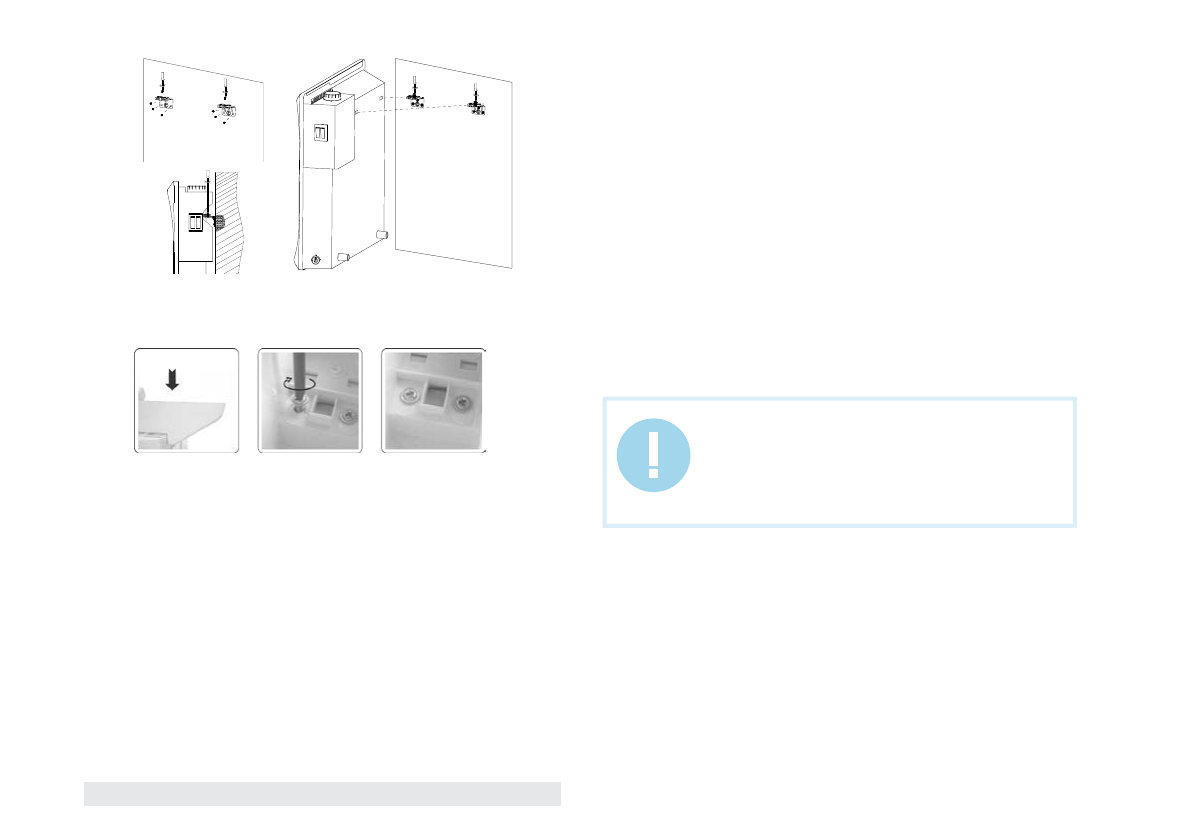

Fig. 5
IMPORTANT!
The convenience outlet should be designed for
nominal current of not less than 10А, electrical cable
with a core with section of not less than 3x1.5 mm2
(for copper)
The appliance is ready for operation!
Power network connection
1. The convector heater is intended for connection to power network with
single-phase voltage of ~220-240 V, 50 Hz.
2. Before connection make sure that power network parameters in the
point of connection correspond to parameters indicated on neck label with
technical data for the appliance.
3. While connecting the convector heater to the power network it is
necessary to observe the working regulations for electrical safety.
4. Convenience outlet should be earthed in the correct way. The outlet
should be designed for nominal current of not less than 10А.Convenience
outlet and a plug should always be dry in order to avoid current leakage.
Always check that the plug is tightly connected to the outlet. The check
should be performed in the following order: insert the plug into the outlet.
After half-hour of work shut off the convector heater and remove the plug
from the outlet and check if the plug is hot. If its temperature is more than
50 С, replace it to avoid damages, accidents or fires as a result of poor
electric contact. The plug should be replaced by a professional.
Fig. 4
