www.timberk.com • electric ceiling heater

5

Minimum distances from the heater to other surfaces according to Fig. 2

are given in Table 3.
Table 3

1. Heater body
2. Radiating board
3. Heating element
4. Cover
5. Junction block
6. Rubber seal

1. Infrared heater - 1 pc
2. Set of fasteners - 1 pc
3. Operation manual - 1 pc
4. Warranty certificate - 1 pc
5. Package - 1 pc

WARNING!

At long standing in the heated area, the distance from

the heater radiating boards to a person or an animal at

indoor air temperature below +11 °C should be at least

1.8 m.

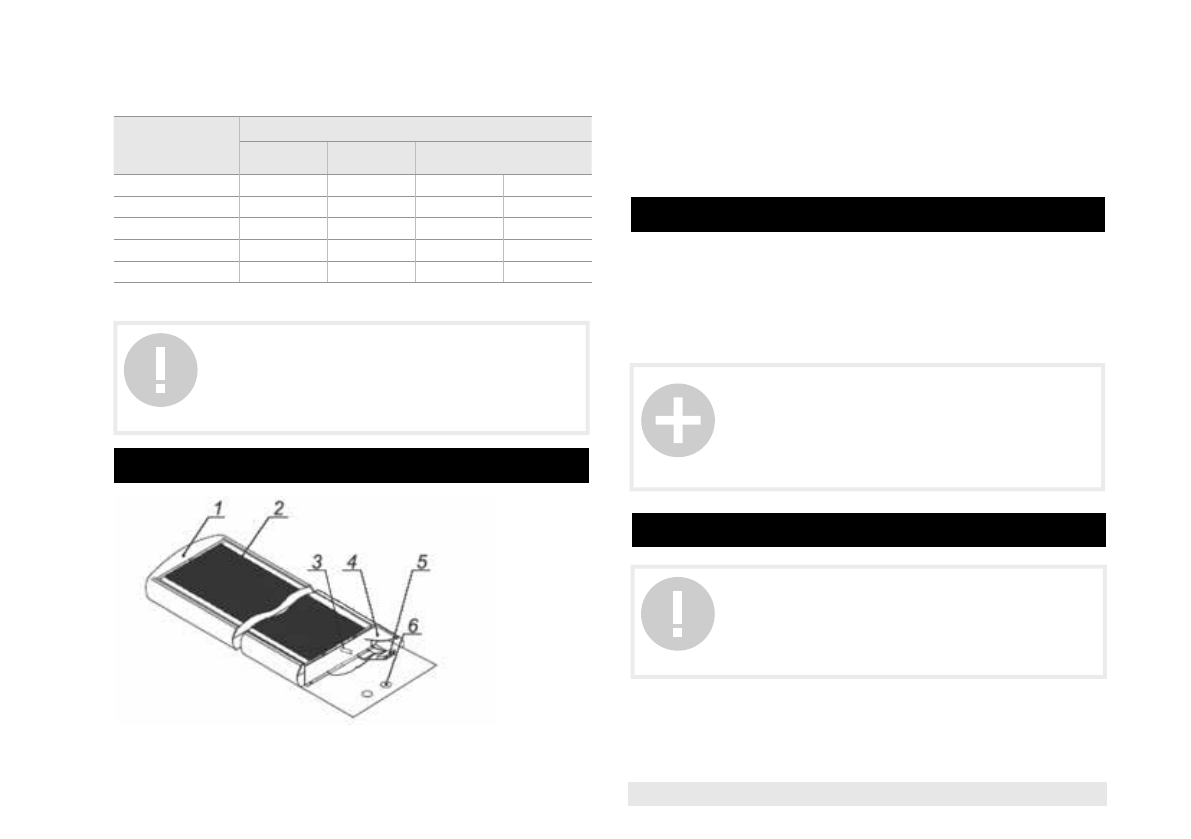

4. INFRARED HEATER DESCRIPTION

5. DELIVERY SET

Fig.3

Dimensions, mm

Article number

TCH A1N 700
TCH A1B 700

TCH A1N 1000
TCH A1B 1000

TCH A1N 1500
TCH A1B 1500

TCH A1N 2000
TCH A1B 2000

A

78

78

78

78

B

150

150

150

150

C

600

600

600

600

D

2200

2200

2500

2200

E*

700

700

700

700

* At long standing in the heated area

NOTE:

To improve the product quality, the design and

technical specifications of the infrared heater, as well

as its delivery set can be modified by the manufacturer

without preliminary notification.

6. INSTALLATION

WARNING!

Mounting of the infrared heater and its connection to the

electric mains should be carried out only by qualified

specialists according to the Electrical Installation

Regulations and Power System Safety Standards.
