www.timberk.com • electric ceiling heater

4

Minimum distances from heater to other surfaces

NOTE:

Heated area in the table is indicated for reference, since it depends

both on the heater power, and on room type, ceiling height, wall/

ceiling materials, number and area of glazing, presence of doors,

etc.

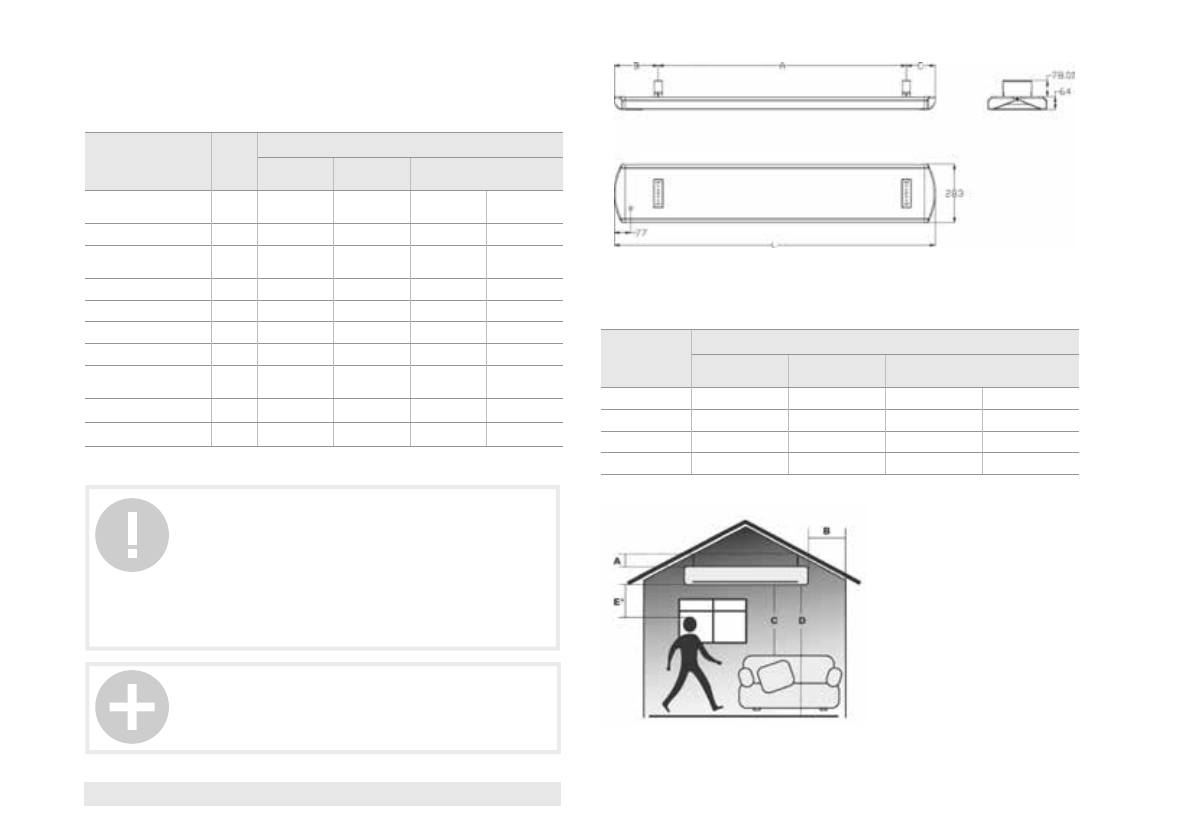

Fig.1

Fig.2

Technical specifications

Technical data for ceiling heater TCH A1N, TCH A1B  series can be checked

into Table 1.
Table 1

Table 2.

* - You can only choose between 2 power modes by using the block of remote control. It

doesn’t belong to standart set, should be bought separately.

Parameter

Meas.

units

Item

TCH A1N 700
TCH A1B 700

TCH A1N 1000
TCH A1B 1000

TCH A1N 1500
TCH A1B 1500

TCH A1N 2000
TCH A1B 2000

Rated voltage

V/Hz

~220/50

~220/50

~220/50

~220/50

Rated current

A

3,2

4,5

6,8

9,1

Rated power consumption

W

700

1000

1500

2000

Power modes*

W

350/700

500/1000

750/1500

1000/2000

Rated suspension height

m

2,2

2,5

2,7

3,5

Heating area

m

2

6-8

10-12

14-16

20-24

Electric protection class

-

Class I

Class I

Class I

Class I

Water protection class

-

IP20

IP20

IP20

IP20

Dimensions

mm

705х283х64

985х283х64

1265х283х64

1545х283х64

Net

kg

4,6

6,6

8,4

10,1

Dimensions, mm

Article number

TCH A1N 700
TCH A1B 700

TCH A1N 1000
TCH A1B 1000

TCH A1N 1500
TCH A1B 1500

TCH A1N 2000
TCH A1B 2000

L

705

987

1265

1545

A

357

637

917

1197

B

211

211

211

211

C

137

137

137

137

IMPORTANT!

The manufacturer reserves the right to change the set-list of the

device (including liquid and powder components) for different

supplies without prior notice. The changes either in no way influence

the basic technical parameters of the device or may improve them,

and also not violate the legislation or quality standards of the

countries of manufacture, transit and selling.
The changes in the set-list may result in changing of the weight

and dimensions of the device, but not more than by +\- 5-20%

(depending on the product category)
