EN

16

from the plug manufacturer.

<16 A

<25 A

<20 m

ø 1,5 mm

2

14 AWG

ø 2,5 mm

2

12 AWG

20 m - 50 m

ø 2,5 mm

2

12 AWG

ø 4,0 mm

2

10 AWG

>

PLUG

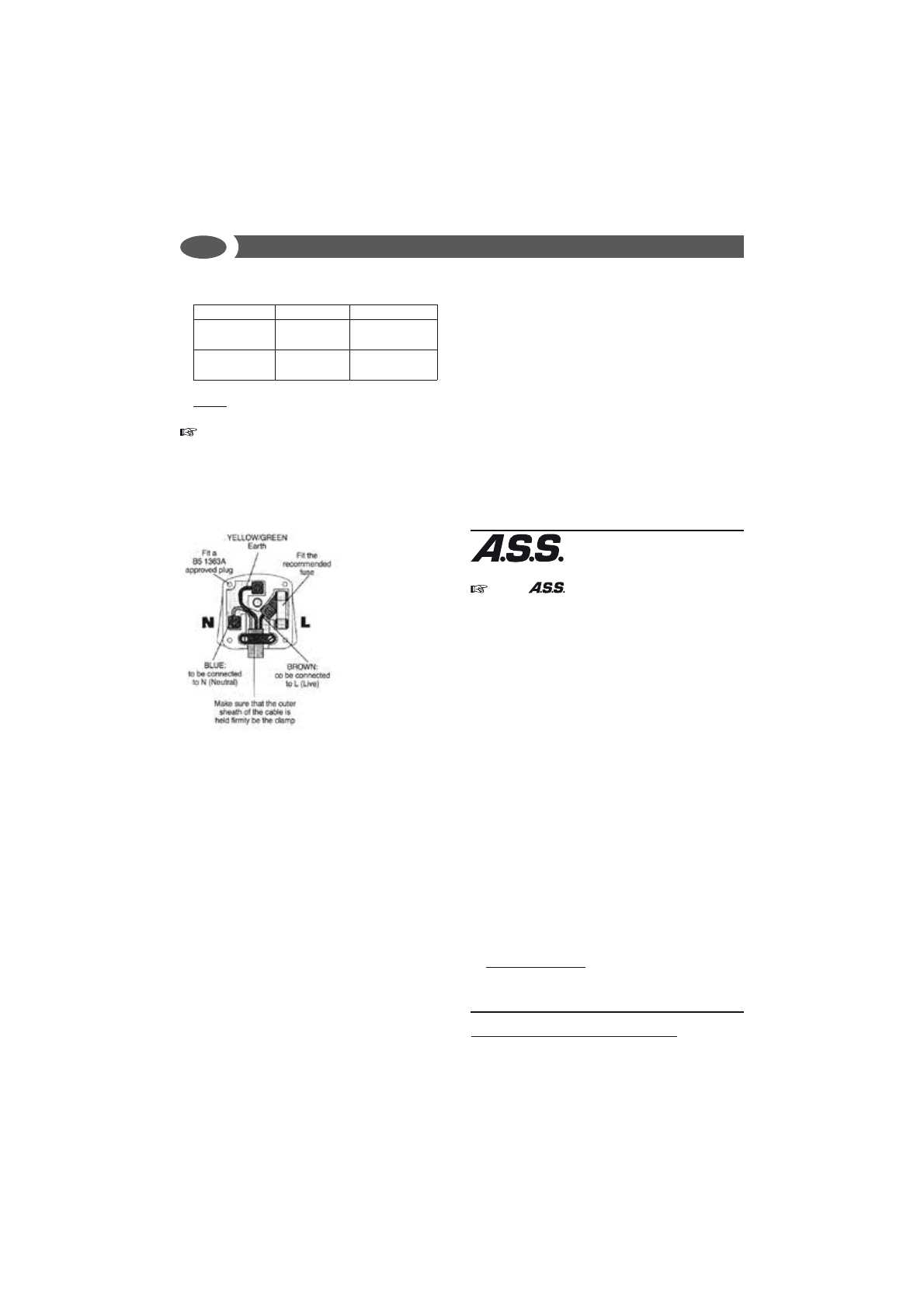

HOW TO CONNECT THE CORD TO A U.K. PLUG:

IMPORTANT The wires in the mains lead are

coloured in accordance with the following
code:

 Blue

Neutral

 Brown

Live

 Yellow/Green

Earth

Please read the in-
structions given
below before con-
necting the cord to
a plug. If in doubt
please consult a
qualified electri-
cian. As the colours
of the wires in the
mains lead of this
appliance may not
correspond with
the coloured mark-
ings identifying the

terminals in your plug, proceed as follows:
The wires that is coloured Brown must be con-
nected to the terminal which is marked with
the letter L or coloured Red. The wire that is
coloured Blue must be connected to the ter-
minal which is marked with the letter N or col-
oured Black.

Safety points for rewireable or moulded plug:
The mains lead of this appliance may be already

fitted with a BS1363 13A plug.

-  If your socket outlet is not suitable for the plug,

then the plug must be removed (cut off if it is a
moulded on plug), the flexible cord insulation
should be stripped back as appropriate and a
suitable 3 pin plug fitted.

WARNING: Dispose of a plug that has been cut

from the power supply cord, as such a plug is
hazardous if inserted in a live 13A socket outlet
elsewhere in the house.

 -  Should  the  fuse  need  to  be  replaced  an  ASTA

marked fuse, approved to BS1362, of the same
rating must be used.

 - Always replace the fuse cover after fitting a

fuse. The plug must NOT be used if the cover is
omitted or lost until a replacement is obtained.

 -  Make certain that only the correct fuse cover is

used and fitted.

-  For plugs with detachable fuse cover the

replacement must be the same as the colour
insert in the base of the plug, or as directed by
the embossed wording on the base of the plug.

-

If the detachable fuse cover is lost a
replacement may be purchased from a Service
Centre.

 ( if fitted)

 NOTE:

  (Automatic Stop System), which

stops the machine during the bypass phase. To
start the water cleaner, it is therefore necessary
to set the switch on position (I)“ON”; after that
press the pistol trigger: the Automatic Stop
System will start the machine and will stop it
automatically when the trigger is released. It
is advisable to put on the safety of the pistol
trigger whenever the machine is stopped, in
order to avoid unintentional starting.

·  Any automatic start of the machine without

pressing the gun trigger is attributable to
air bubbles in the water or other similar
phenomena which do not imply the existence
of any defects in the machine.

·  Do not leave the appliance unattended during

the standby for more than 5 minutes. Contrarily,
for the safety of the appliance it is necessary to
re-turn the switch into the (0) OFF position.

·  Please check that the coupling of the high

pressure hose with the appliance and the
gun supplied as standard equipment made
correctly, that is to say without any water leak.

>

SWITCHING OFF

See

fig.

CARE AND MAINTENANCE

See

fig.
