– 2
Figure 1
1 Support for spray lance
2 Manometer
3 Recess for detergent suction hose
4 Recessed grip
(both sides)
5 Impeller
6 Connection for water supply with filter
7 High pressure connection
8 High pressure hose
9 Spray lance
10 Triple nozzle
11 Pouring vent for detergent
12 Steering roller with fixed position brake
13 Fuel sieve
14 Safety latch of the hand spray gun
15 Hand spraygun
16 Power supply
17 Tool bag
18 Pouring vent for fuel
19 Dosage valve for detergent
20 Operating field
21 Storage for hand spray gun
22 Step depression
23 Handle
24 Nameplate
25 Cover lock
26 Storage compartment for accessories
27 Burner
28 Recess for spray pipe
29 Cover
30 Oil tank
31 Oil drain screw
32 Backflow valve of the detergent infeed
33 Detergent suction hose with filter
34 Fuel filter
35 Fastening clamp
36 Hose (soft damping system) of the wa-
ter shortage safeguard
37 Water shortage safeguard
38 Sieve in the water shortage safeguard
39 Fine filter (water)
Figure 2
A Power switch
1 Indicator lamp for detergent
2 “Ready for use” indicator lamp
3 Fuel indicator lamp
High-pressure jets can be dan-
gerous if improperly used. The
jet may not be directed at per-
sons, animals, live electrical equipment or
at the appliance itself.
According to the applicable regula-
tions, the appliance must never be
used on the drinking water supply
without a system separator. Use a
suitable system separator manufactured by
KÄRCHER; or, as an alternative, a system
separator as per EN 12729 Type BA. Water
flowing through a system separator is con-
sidered non-drinkable.
Caution
Always connect the system separator to
the water supply, never directly to the appli-
ance!

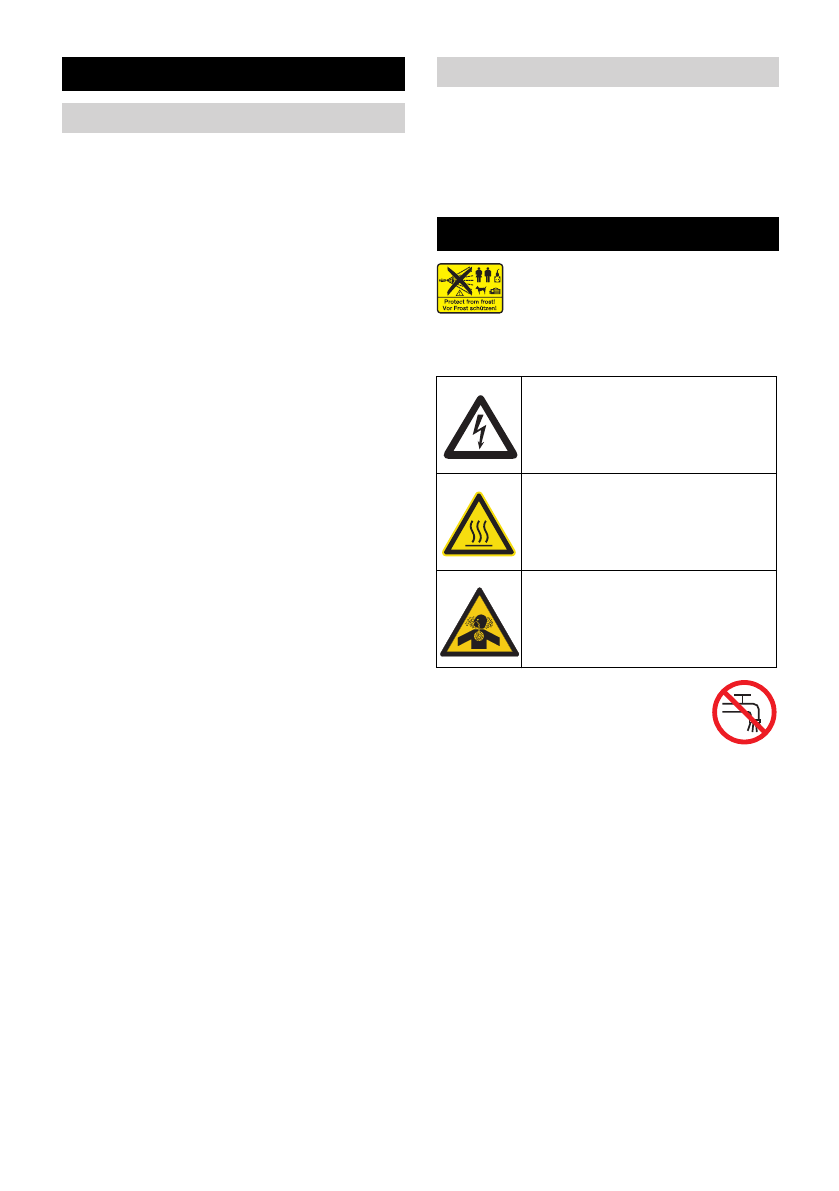

Overview
Device elements
Operating field
Symbols on the machine
Risk of electric shock!
Only electricians or authorised
technicians are permitted to
work on parts of the plant.
Risk of burns on account of hot
surfaces!
Risk of poisoning! Do not
breathe in the exhaust fumes.
