About your monitor

       |

13

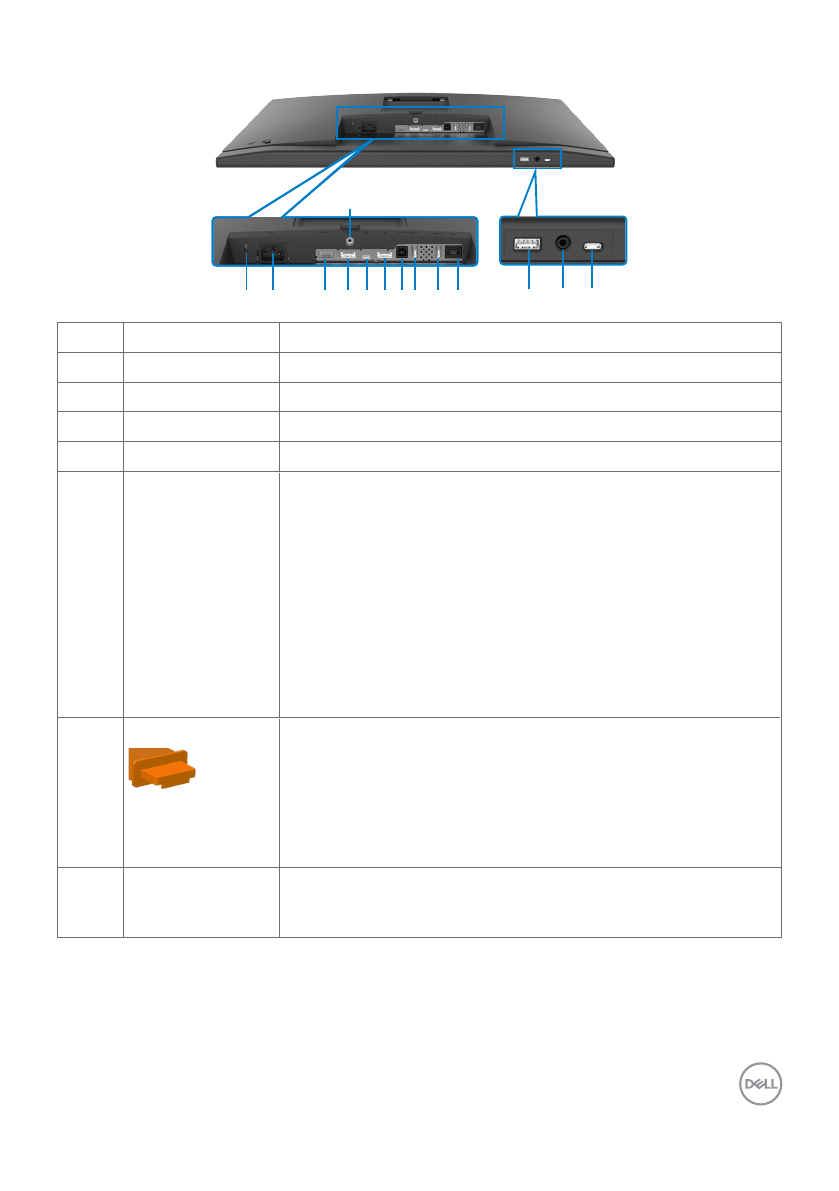

Bottom view

9

9

1

4 5 6 7 8

14

3

2

13

9 10

11 12

Label Description

Use

1

Security lock slot Secures monitor with security cable lock (sold separately).

2

Power connector Connect the power cable.

3

HDMI port

Connect your computer with the HDMI cable.

4

DisplayPort in

Connect your computer with the DisplayPort cable.

5

USB Type-C
upstream/
DisplayPort

Connect to your computer using the USB Type-C cable.
The USB Type-C port offer the fastest transfer rate (USB
3.2 Gen 1) and the alternate mode with DP 1.2 (C2422HE/
C3422WE) / DP 1.4 (C2722DE) support the following, and
PD 20 V/4.5 A, 15 V/3 A, 9 V/3 A, 5 V/3 A.
• C2422HE maximum resolution of 1920 x 1080 at 60 Hz
• C2722DE maximum resolution of 2560 x 1440 at 60 Hz
• C3422WE maximum resolution of 3440 x 1440 at 60 Hz

NOTE:

 USB Type-C is not supported on Windows versions

that are prior to Windows 10.

6

DP port (out)

DP output for MST (multi-stream transport) capable
monitor. To enable MST, refer to instruction on section
“

Connecting the Monitor for DP MST Function

”.

NOTE:

 Remove the rubber plug when using DP out

connector.

NOTE:

 The port is only for C2422HE/C2722DE.

7

USB-B upstream
port

Connect the USB cable that comes with your monitor to

the computer. Once this cable is connected, you can use

the USB downstream connectors on the monitor.
