5.

Press

F10

 to save configuration and exit, and then reboot and press

Delete

 key to

enter BIOS Setup menu.

6.

 Go  to

BIOS > SETTING > Advanced > Intel(R) Rapid Storage Technology

sub-

menu

.

Creating RAID Volume

1.

As previously mentioned, enable Intel(R) Rapid Storage Technology.

2.

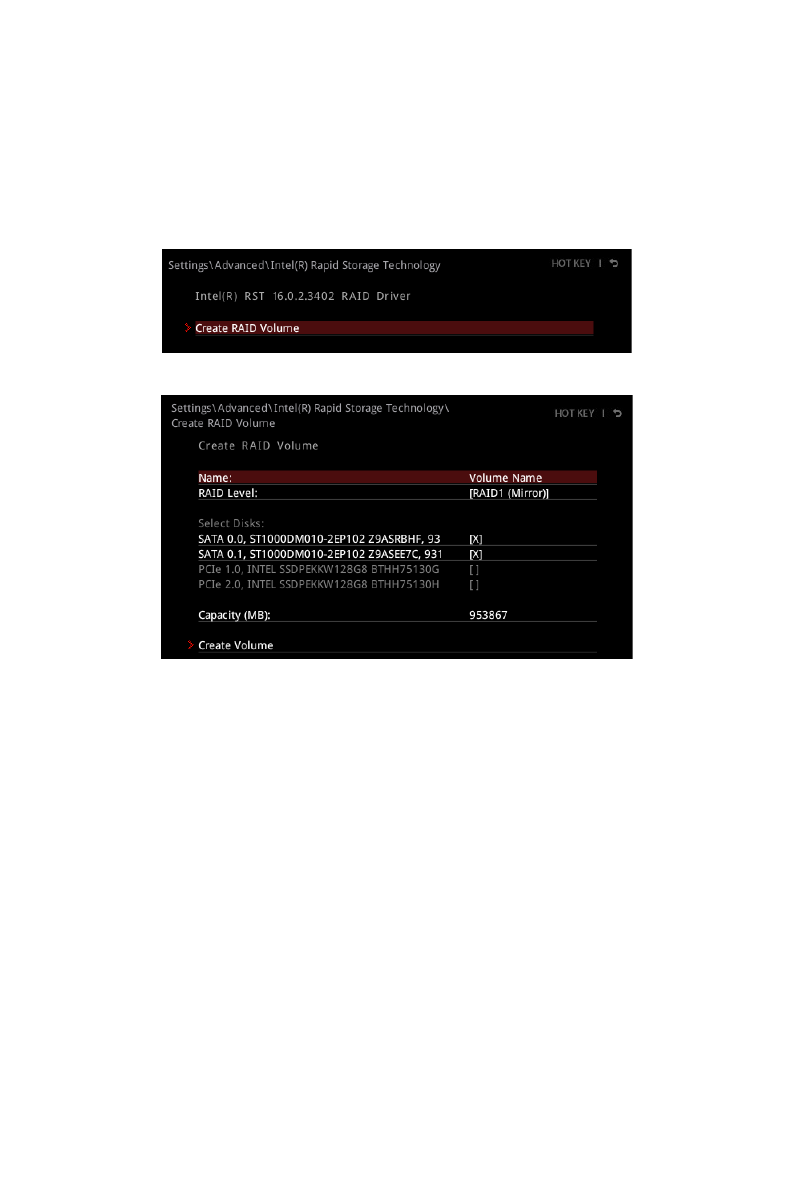

Enter

Create RAID Volume

 screen. The following screen appears:

3.

Specify a

Name

 for RAID volume.

4.

Select the

RAID Level

 best suited to your usage model in RAID Level.

5.

In the

Select Disks

field, press

Space

 key or press

Enter

 key and use the

↑↓

arrow keys

 to select the option

X

 to select the disks you want to create for the

RAID volume.

6.

Select the

Strip Size

 for the RAID array. The available values range from 4KB to

128 KB in power of 2 increments. The strip size should be chosen based on the

planned drive usage. Here are some typical values:

RAID0 -128KB / RAID10 - 64KB / RAID5 - 64KB.

7.

Select the capacity of the volume in the

Capacity (MB)

 field. The default value is

the maximum volume capacity of the selected disks.

8.

Go to the

Create Volume

 field and press

Enter

 to create the RAID volume. Upon

completion you are returned to the

Intel(R) Rapid Storage Technology

 menu.

65

RAID Configuration
