PCI_E1~2: PCIe Expansion Slots

PCI_E1

: PCIe 4.0 x16 (From CPU)

PCI_E2

: PCIe 3.0 x1 (From B660/ H610 chipset)

⚠

Important

∙

If you install a large and heavy graphics card, you need to use a tool such as

MSI

Graphics Card Bolster

 to support its weight to prevent deformation of the slot.

∙

When adding or removing expansion cards, always turn off the power supply and

unplug the power supply power cable from the power outlet. Read the expansion

card’s documentation to check for any necessary additional hardware or software

changes.

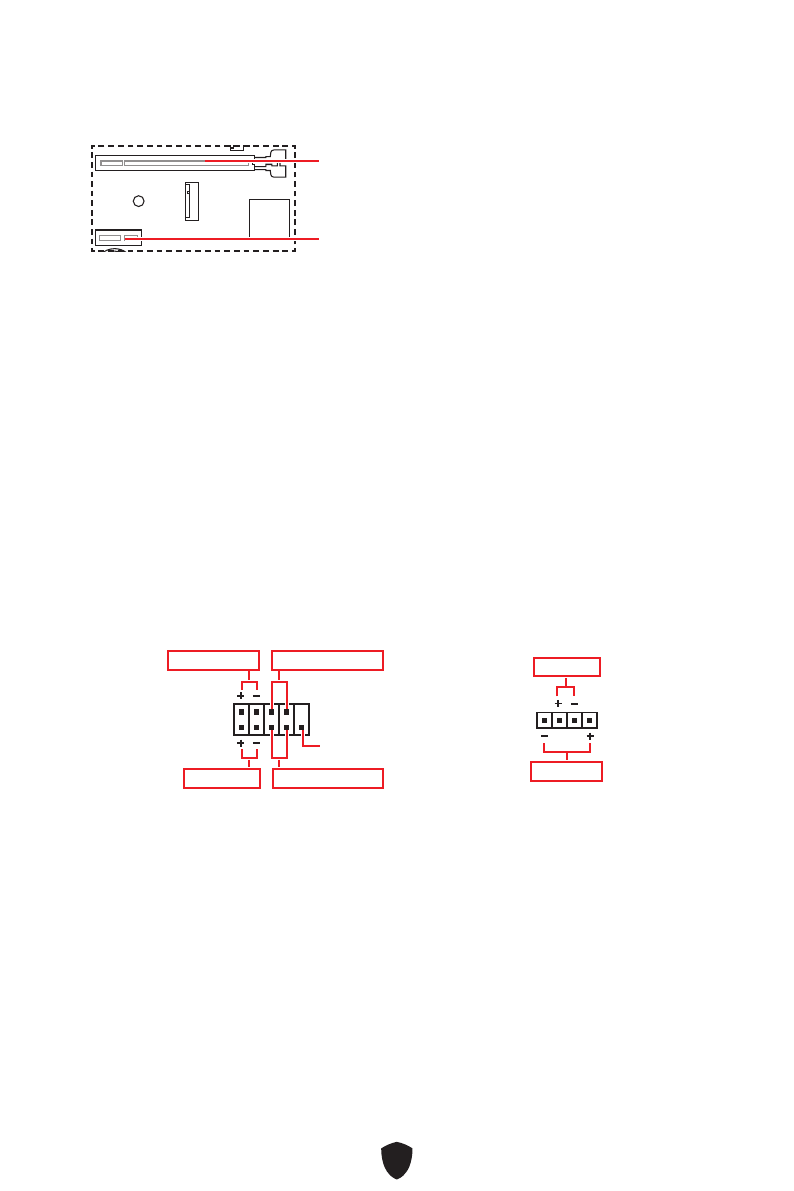

JFP1, JFP2: Front Panel Connectors

The JFP1 connector controls the power on, power reset, and the LEDs on your PC

case/chassis. Power Switch/ Reset Switch headers allow you to connect power button/

reset button. Power LED header connects to LED light on the PC case, and HDD LED

header indicates the activity of the hard disk. The JFP2 connector is for Buzzer and

Speaker. To connect the cables from PC case to the right pins, please refer to the

following images below.

1

2

10

9

Power LED

Reserved

Power Switch

JFP1

Reset Switch

HDD LED

1

JFP2

Buzzer

Speaker

⚠

Important

Please note that Power LED and HDD LED have positive and negative connection,

you need to link up the cable to the corresponding positive and negative port on the

motherboard. Otherwise, LEDs won’t work properly.
