2-4  Installing the Memory

Read the following guidelines before you begin to install the memory:

•

Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported

memory speeds and memory modules.)

•

Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•

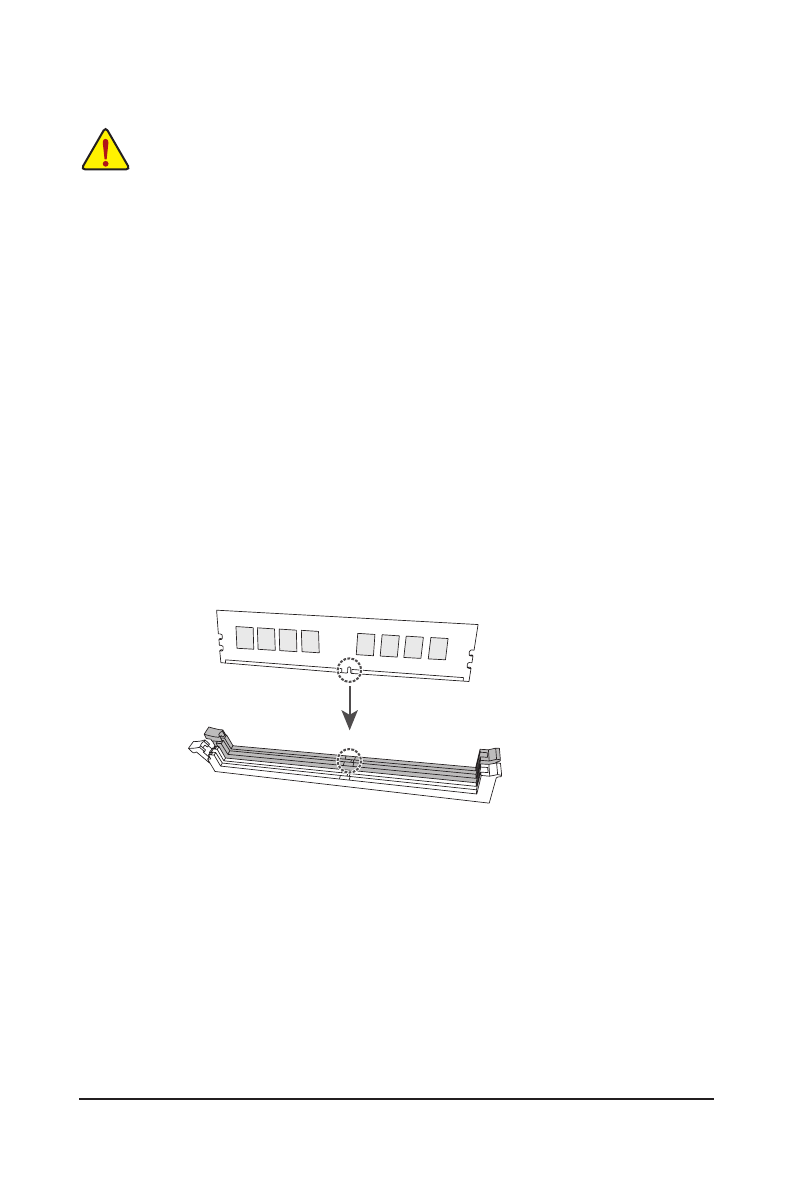

Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

Dual Channel Memory Configuration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specifications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The two memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_1

Channel B: DDR4_2

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1.  Dual Channel mode cannot be enabled if only one memory module is installed.

2.  When enabling Dual Channel mode with two memory modules, it is recommended that memory of the

same capacity, brand, speed, and chips be used.

DDR4_1

DDR4_2
