Hardware Installation

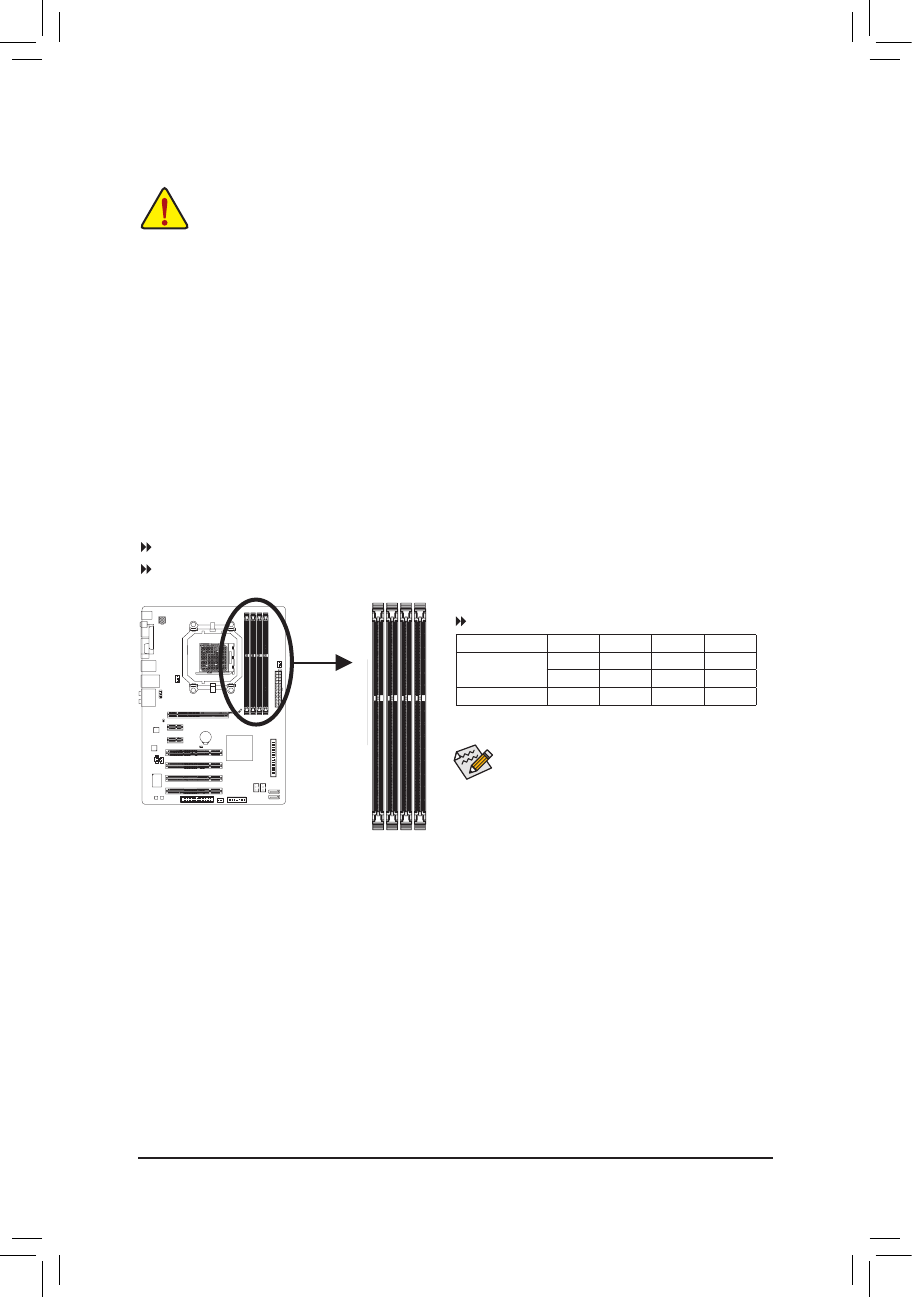

1-4 Installing the Memory
Due to CPU limitation, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same colored
DDR3 sockets for optimum performance.
Read the following guidelines before you begin to install the memory:
Make sure that the motherboard supports the memory. It is recommended that memory of the
•
same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Always turn off the computer and unplug the power cord from the power outlet before installing
•
the memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only one direc-
•
tion. If you are unable to insert the memory, switch the direction.
DDR3_1 DDR3_2
DDR3_3 DDR3_4
If two memory modules are to be installed, it is
recommended that you install them in the DDR3_1
and DDR3_2 sockets.
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
1-4-1 Dual Channel Memory Configuration
This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the
memory is installed, the BIOS will automatically detect the specifications and capacity of the memory. En
-
abling Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel 0: DDR3_1, DDR3_3
Channel 1: DDR3_2, DDR3_4
Dual Channel Memory Configurations Table
DDR3_1 DDR3_2 DDR3_3 DDR3_4
Two Modules
DS/SS
DS/SS
- -
- -
- -
- -
DS/SS
DS/SS
Four Modules
DS/SS
DS/SS
DS/SS
DS/SS
