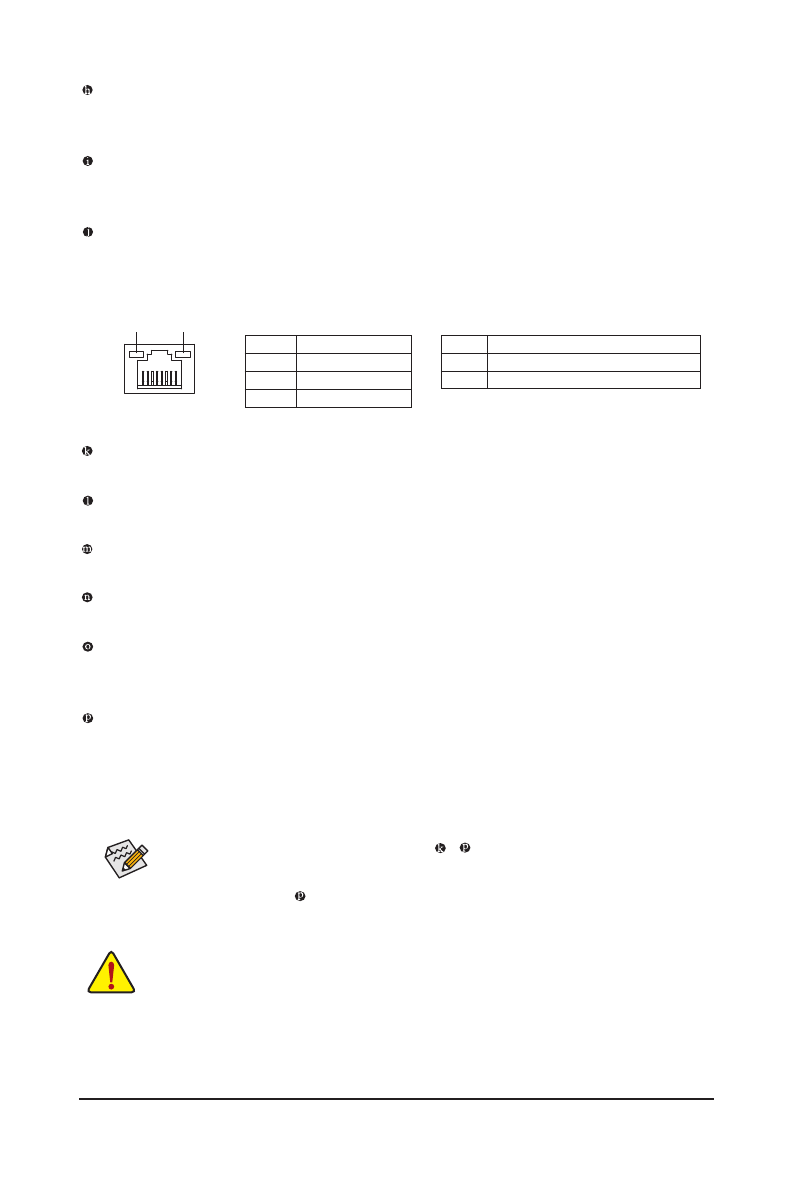

- 21 -

Hardware Installation

In  addition  to  the  default  speakers  settings,  the ~



audio  jacks  can  be  reconfigured  to  per

-

form  different  functions  via  the  audio  software.  Only  microphones  still  MUST  be  connected  to
the  default  Mic  in  jack  ( ).  Refer  to  the  instructions  on  setting  up  a  2/4/5.1/7.1-channel  audio

configuration in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."

Activity LED:

State

Description

Blinking  Data transmission or receiving is occurring
Off

No data transmission or receiving is occurring

Connection/Speed LED:

State

Description

Orange

1 Gbps data rate

Green

100 Mbps data rate

Off

10 Mbps data rate

Activity LED

Connection/

Speed LED

LAN Port

  IEEE 1394a Port

j



The  IEEE  1394  port  supports  the  IEEE  1394a  specification,  featuring  high  speed,  high  bandwidth  and

hotplug capabilities. Use this port for an IEEE 1394a device.

  eSATA 3Gb/s Port



The eSATA 3Gb/s port conforms to SATA 3Gb/s standard and is compatible with SATA 1.5Gb/s standard.
Use the port to connect an external SATA device.

  RJ-45 LAN Port



The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following de-
scribes the states of the LAN port LEDs.

  Center/Subwoofer Speaker Out Jack (Orange)



Use this audio jack to connect center/subwoofer speakers in a 5.1/7.1-channel audio configuration.

  Rear Speaker Out Jack (Black)



Use this audio jack to connect rear speakers in a 4/5.1/7.1-channel audio configuration.

  Side Speaker Out Jack (Gray)



Use this audio jack to connect side speakers in a 7.1-channel audio configuration.

  Line In Jack (Blue)



The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

  Line Out Jack (Green)



The  default  line  out  jack.  Use  this  audio  jack  for  a  headphone  or  2-channel  speaker. This  jack  can  be

used to connect front speakers in a 4/5.1/7.1-channel audio configuration.

  Mic In Jack (Pink)



The default Mic in jack. Microphones must be connected to this jack.

•

When  removing  the  cable  connected  to  a  back  panel  connector,  first  remove  the  cable  from

your device and then remove it from the motherboard.

•

When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.



j

  Only for GA-H55M-UD2H
