- 19 -

Hardware Installation

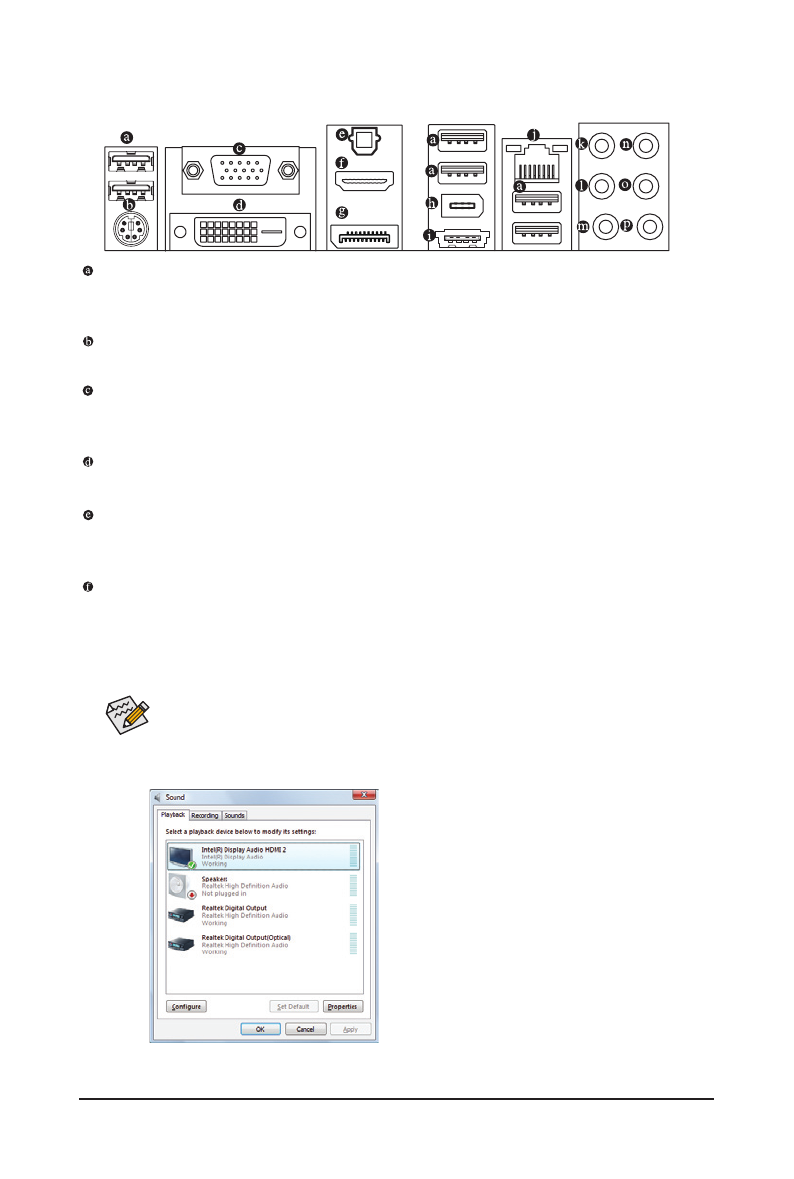

1-6  Back Panel Connectors

  USB Port



The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB key

-

board/mouse, USB printer, USB flash drive and etc.

  PS/2 Keyboard/Mouse Port



Use this port a PS/2 keyboard or mouse.

  D-Sub Port

(Note 1)



The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection
to this port.

  DVI-D Port

(Note 1)(Note 2) (Note 3)



The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to this port.

  Optical S/PDIF Out Connector



This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.

  HDMI Port

 (Note 1)(Note 3)



The  HDMI  (High-Definition  Multimedia  Interface)  provides  an  all-digital  audio/video  interface  to  transmit  the

uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/video device to this port.
The HDMI Technology can support a maximum resolution of 1920x1080p but the actual resolutions supported
depend on the monitor being used.





j

  Only for GA-H55M-UD2H

•  After installing the HDMI device, make sure the default device for sound playback is the HDMI

device. (The item name may differ from operating system. Refer to the figure below for details.)

•  Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM formats. (AC3 and

DTS require the use of an external decoder for decoding.)

In Windows Vista, select Start>Control Panel>Sound>
Playback,  set

Intel(R)  Display  Audio  HDMI  2

  to  the

default playback device.

j

j

 (Note 1)(Note 2)(Note 3)

 (Note 1)

 (Note 1)(Note 3)

  (Note 1)(Note 3)
