Hardware Installation Process

English

#

When STR/DIMM LED is ON, you do not install / remove DDR from socket.

DDR

1. The DIMM slot has a notch, so the

DIMMmemory module can only fit in one direction.

2. Insert the DIMM memory module verticallyinto the

DIMM slot. Then push it down.

3. Close the plastic clip at both edges of theDIMM slots

to lock the DIMM module.
Reverse the installation steps when you wish to
remove the DIMM module.

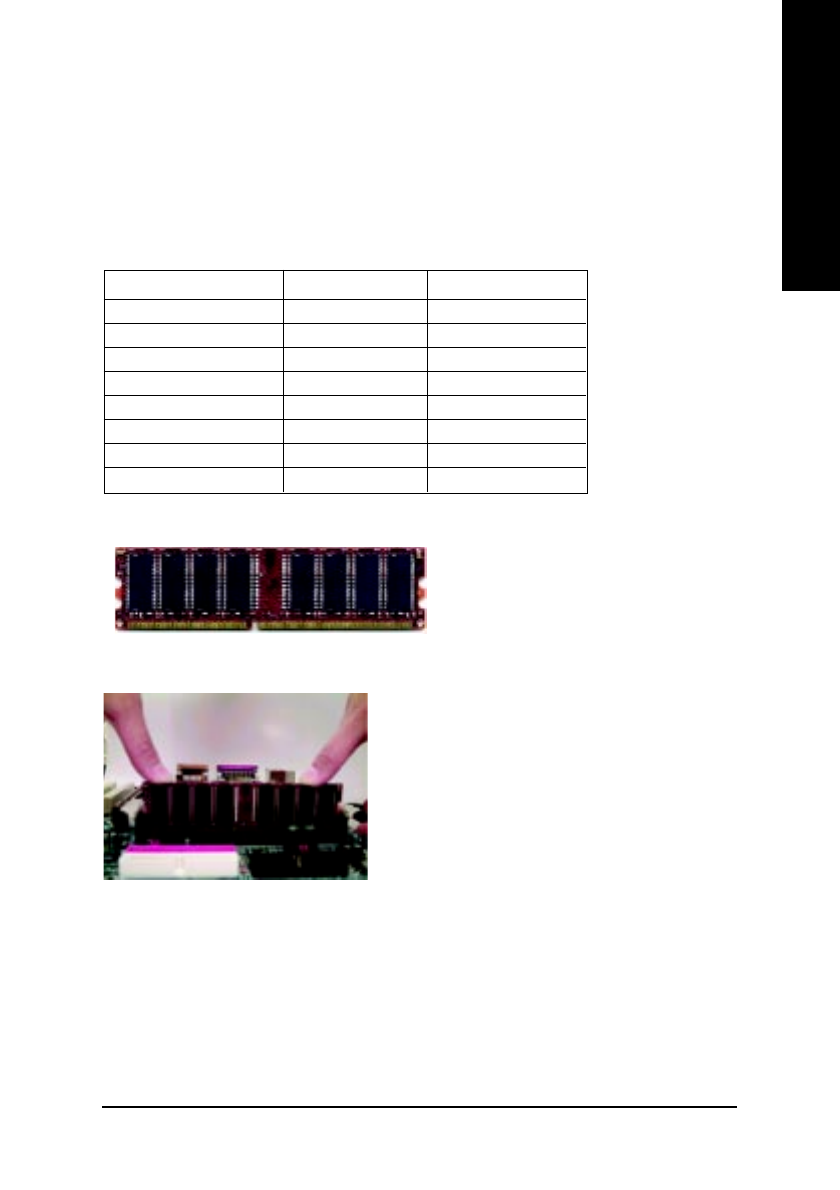

Step 2: Install memory modules

The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot
.The DIMM module can only fit in one direction due to the notch. Memory size can vary between
sockets.

Total Memory Sizes With Unbuffered DDR DIMM


Devices used on DIMM

1 DIMM x 64 / x 72

2 DIMMs x 64 / x 72

 64 Mbit (2Mx8x4 banks)

128 MBytes

256 MBytes

 64 Mbit (1Mx16x4 banks)

32 MBytes

64 MBytes

 128 Mbit(4Mx8x4 banks)

256 MBytes

512 MBytes

 128 Mbit(2Mx16x4 banks)

64 MBytes

128 MBytes

 256 Mbit(8Mx8x4 banks)

512 MBytes

1 GBytes

 256 Mbit(4Mx16x4 banks)

128 MBytes

256 MBytes

 512 Mbit(16Mx8x4 banks)

1 GBytes

2 GBytes

 512 Mbit(8Mx16x4 banks)

256 MBytes

512 MBytes

Notes: Double-sided x16 DDR memory devices are not support by Intel 845E/G chipset.
