Hardware Installation

- 17 -

English

1-6

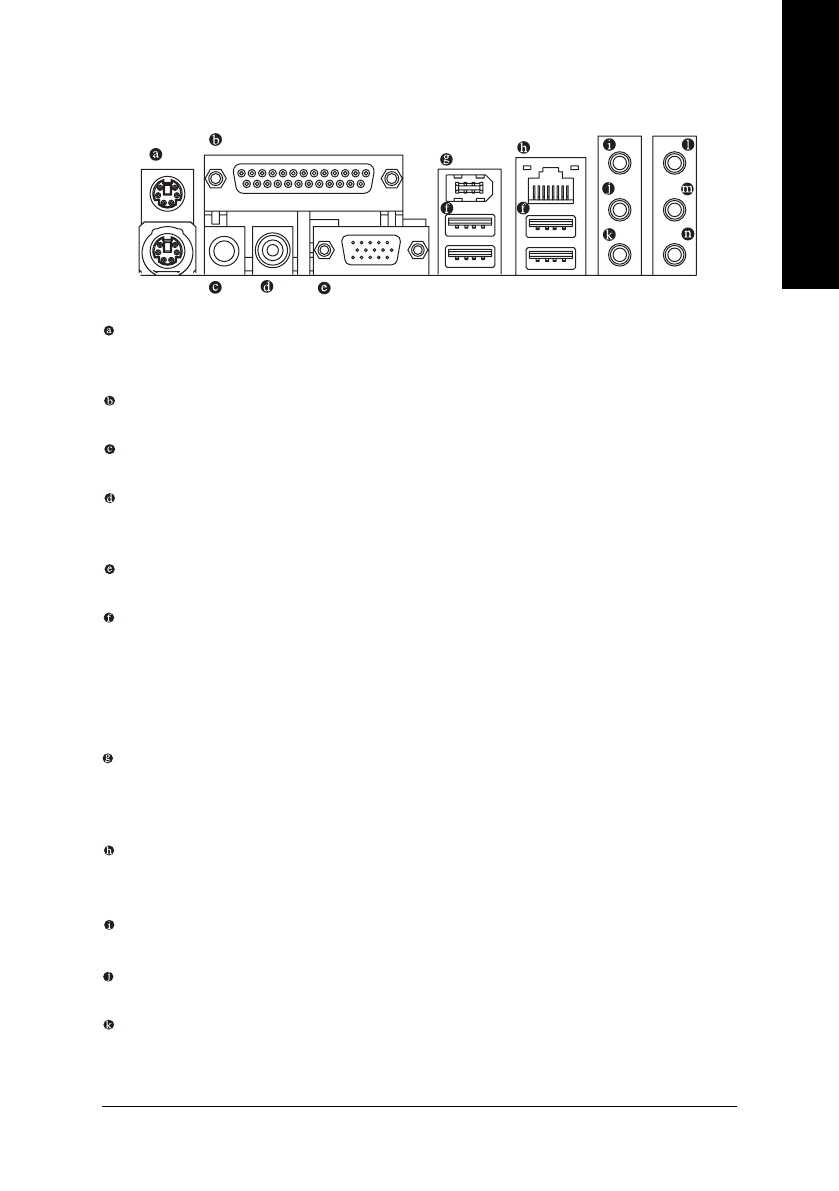

I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the
keyboard to the lower port (purple).

LPT (Parallel Port)

The parallel port allows connection of a printer, scanner and other peripheral devices.

SPDIF_I

Use SPDIF IN  feature only when your device has digital output function.

SPDIF_O

The SPDIF output port is capable of providing digital audio to external speakers or compressed
AC3 data to an external Dolby Digital Decoder via cable.

VGA Port

Monitor can be connected to VGA port.

USB Port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make
sure your OS supports USB controller. If your OS does not support USB controller, please contact
OS vendor for possible patch or driver upgrade. For more information please contact your OS or
device(s) vendors.

IEEE 1394 Port

Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, highbandwidth and hot plug. ( For optional IEEE1394 cable, please contact your
local dealer.)

LAN Port

The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/100/
1000Mbps.

Line In

The default Line In jack. Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out (Front Speaker Out)

Connect the stereo speakers, earphone or front surround speakers to this connector.

MIC In

Microphone can be connected to MIC In jack.
