- 31 -

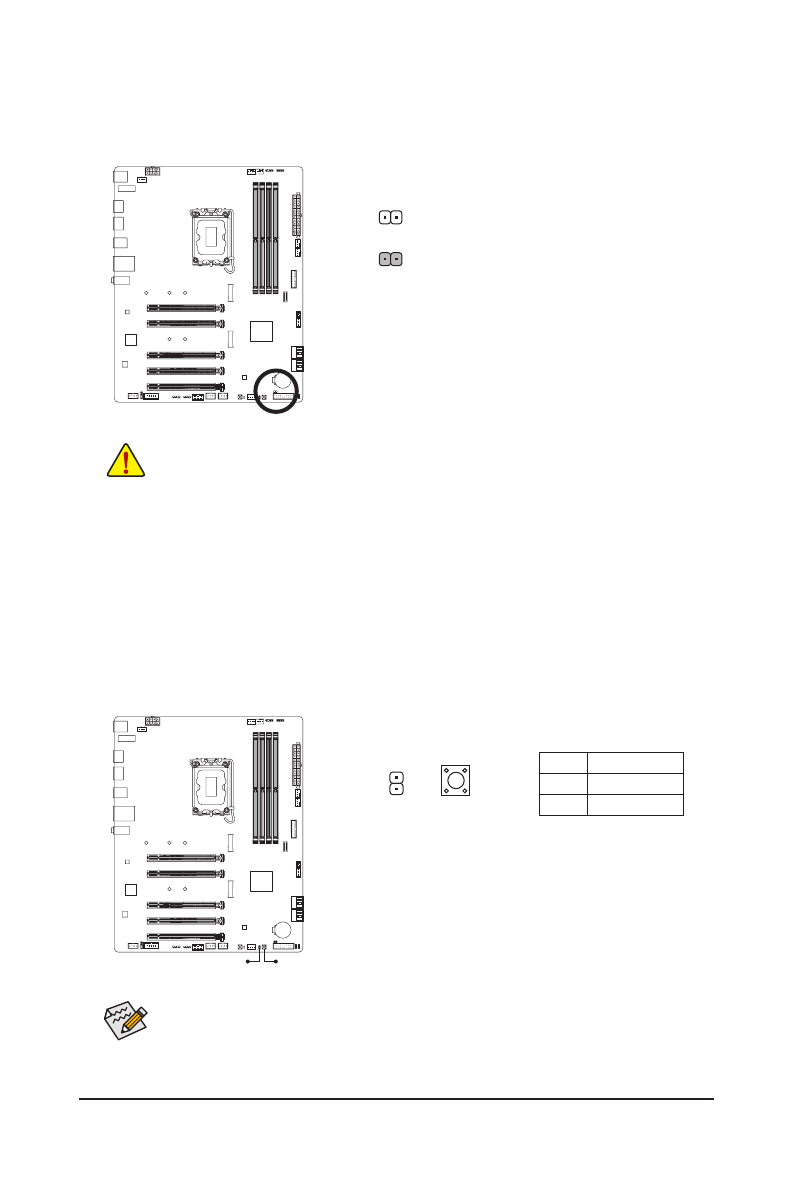

20)  CLR_CMOS (Clear CMOS Jumper)

Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear

the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

21)  RST_SW/RST (Reset Button/Reset Jumper)

The reset button (RST_SW) allows users to quickly turn on/off the computer in an open-case environment

when they want to change hardware components or conduct hardware testing. The reset jumper (RST)

can connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer

if the computer freezes and fails to perform a normal restart.

•

Always turn off your computer and unplug the power cord from the power outlet before clearing

the CMOS values.

•

After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or

manually configure the BIOS settings (please navigate to the "BIOS Setup" page of GIGABYTE's

website for more information).

Open: Normal

Short: Clear CMOS Values

The reset button (RST_SW)/rest jumper (RST) provides you with several functions to use. To remap

the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's

website and search for "RST_SW (MULTIKEY)" for more information.

RST_SW

RST

1

Pin No.

Definition

1

Reset

2

GND

RST

RST_SW
