2-3  Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

•

Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•

Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•

Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•

Apply an even and thin layer of thermal grease on the surface of the CPU.

•

Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•

Set the CPU host frequency in accordance with the CPU specifications. It is not recommended

that the system bus frequency be set beyond hardware specifications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specifications, please do so according to your hardware specifications including the CPU, graphics

card, memory, hard drive, etc.

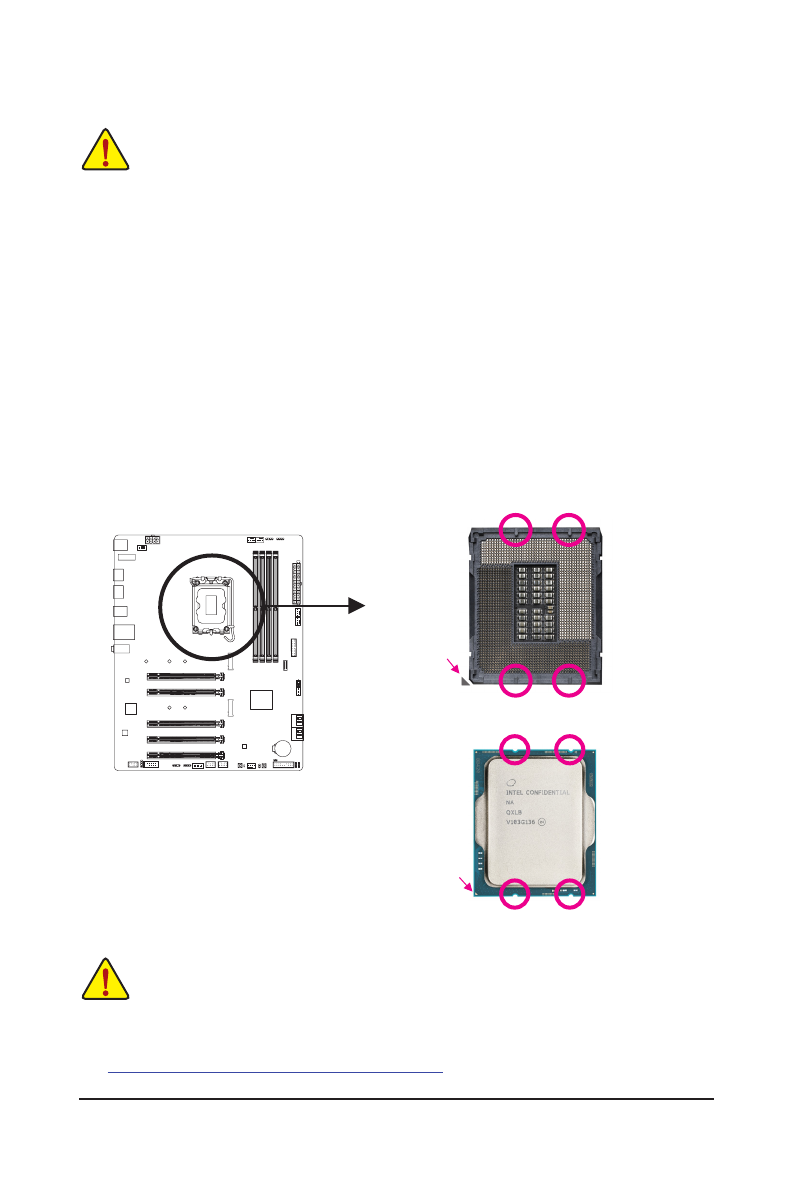

A. Note the CPU Orientation

Note the alignment keys on the motherboard CPU socket and the notches on the CPU.

Notch

Notch

LGA1700 CPU

Triangle Pin One Marking

on the CPU

Alignment Key

LGA1700 CPU Socket

Triangle Pin One Marking

of the CPU Socket

Alignment Key

&

Please visit GIGABYTE's website for details on hardware installation.

http://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically after you insert the CPU and close the load plate.
