Installation/Connections
Choose the mounting location where the unit will not interfere with the normal driving function of the
driver.
Before finally installing the unit, connect the wiring and make sure that the unit works properly.
Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the
vehicle.
Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a
sudden stop, like an emergency stop.
If installation angle exceeds 30° from horizontal, the unit may not perform properly.
Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or
from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

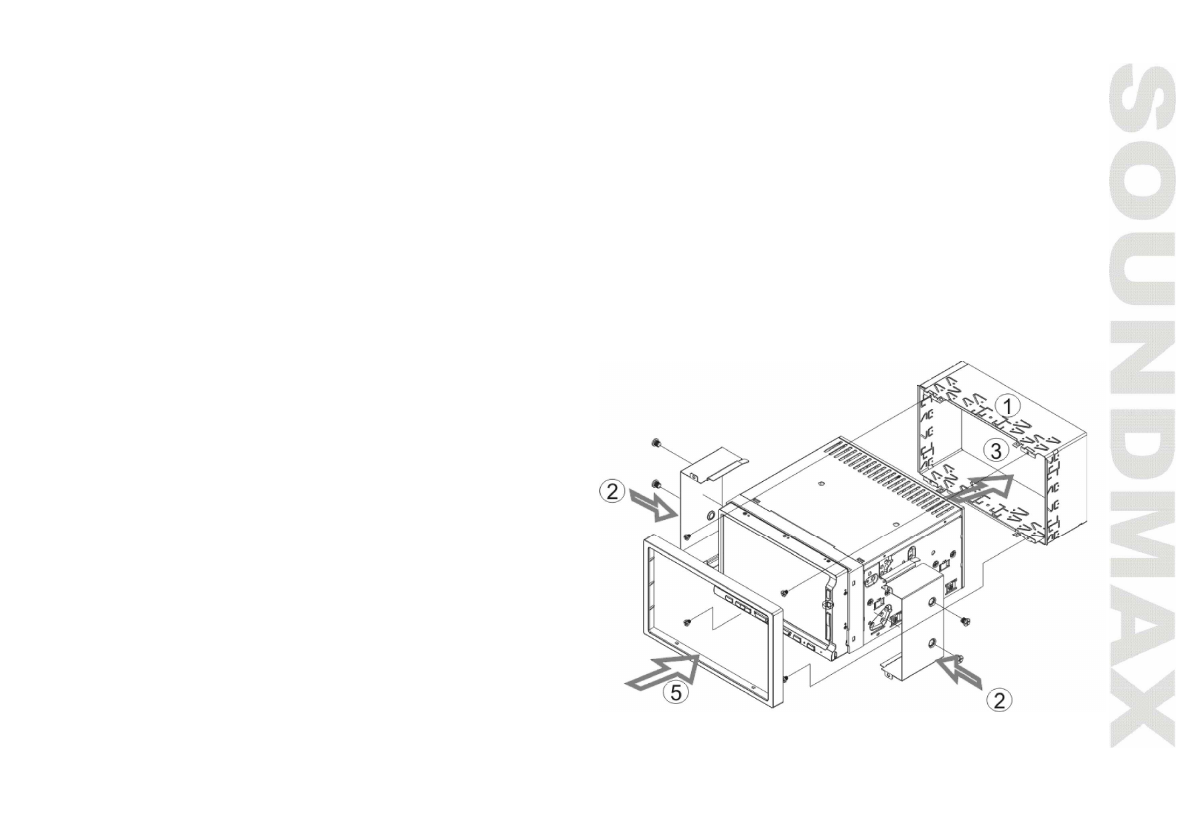

Mounting
Remove the mounting sleeve (1) from the unit.
Slide the mounting sleeve into the 2-DIN
installation slot provided for the car radio.
Attach the mounting sleeve by bending the
installation brackets towards the outside with a
screwdriver. The sleeve is properly installed
when it can no longer be pulled out, yet also
keeps from sliding into the installation slot.
Connect the cable set and the antenna to the
vehicle’s electronics corresponding to the
connection table (see farther).
Attach the mounting racks to the sides of the
unit, and fix them with the screws as in (2).
Insert the unit into the mounting sleeve until the
stop (3). The unit then audibly snaps into the
sleeve.
Fasten the four screws (4) to fix the unit to the mounting sleeve.
