1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no
obstacles (wires, dashboard elements, etc) for the unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size of
the dashboard to fix the sleeve in place.

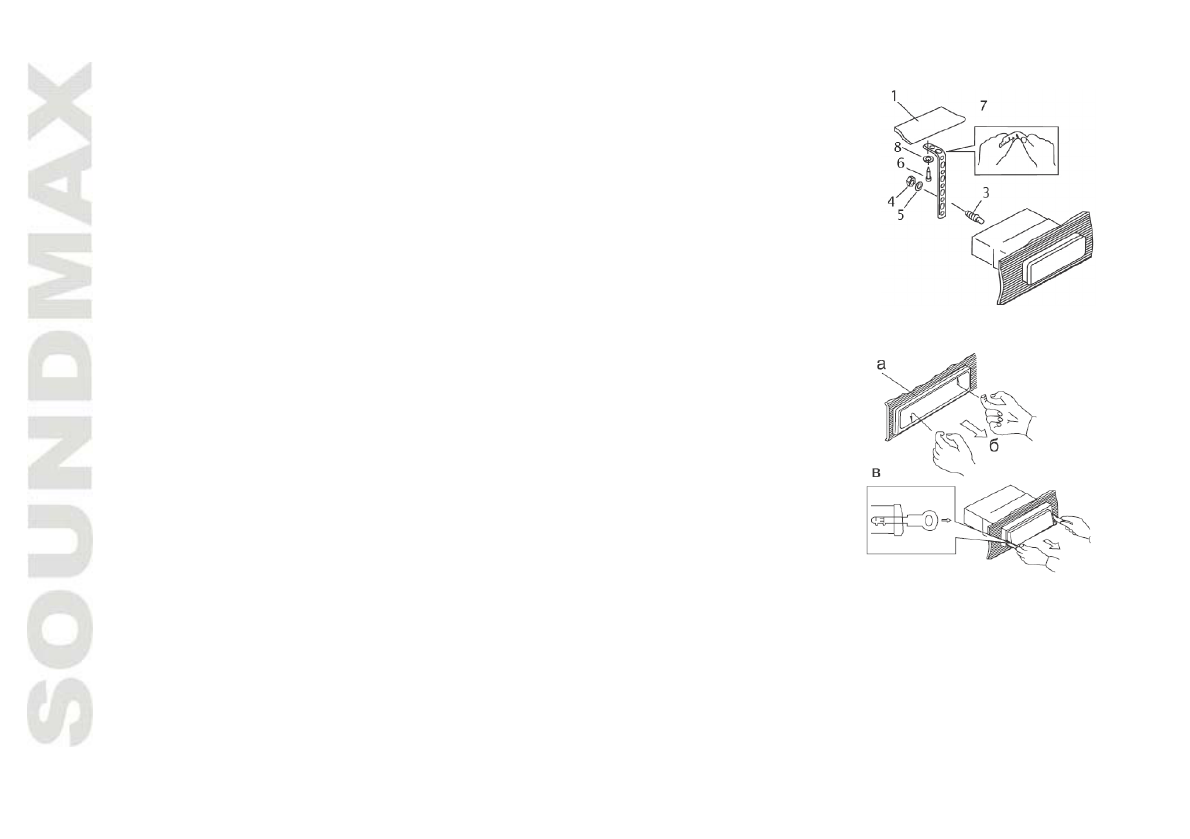

3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing
and install the strap as shown in the picture. You can bend the strap to the
needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.
Dismantling the unit
– Trim frame
– Frame uninstall direction
– Release key insertion
1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame (apply
some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body to click,
as shown in the picture. To extract the unit from the dashboard, pull the
release keys or the unit body to pull it out. Before detaching the unit, ensure
it is not fixed with the metal strap.
Trim frame installation
To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before
installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being
installed, the side with the groove should face down and fixed first.
