13

ENGLISH   |

R

L

REAR/SW

KDC-3657SD

REMOTE CONT

STEERING WHEEL

REMOTE INPUT

MUTE

P. CONT

ANT CONT

KDC-4757SD

SW

FRONT

R

L

REAR

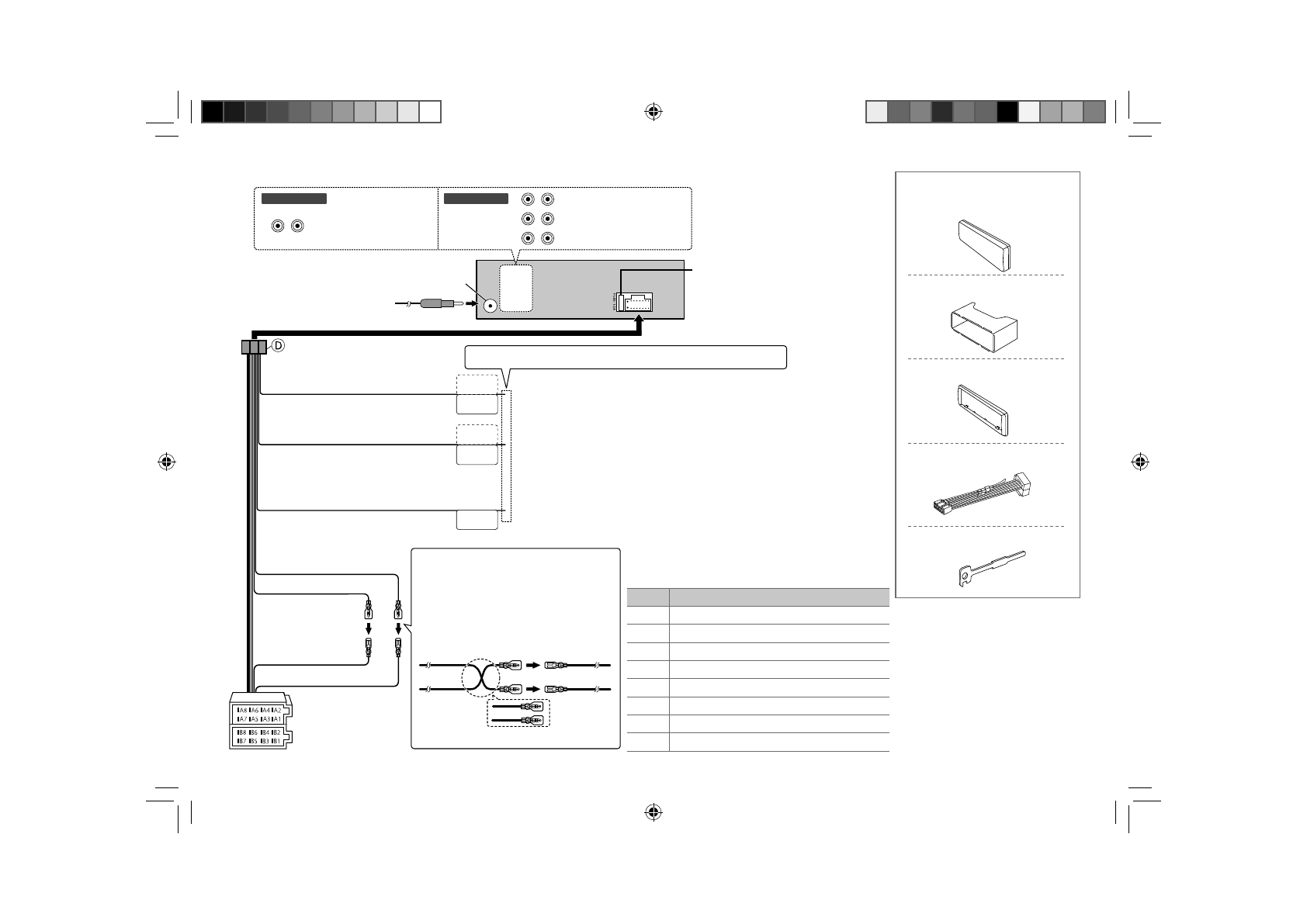

Wiring connection

Part list for installation

Fuse (10 A)

Antenna terminal

( ×2 )

( ×1 )

( ×1 )

( ×1 )

( ×1 )

A

 Faceplate

B

 Mounting sleeve

C

 Trim plate

D

 Wiring harness

E

 Extraction key

Light blue/yellow

(Steering remote control wire)

To the steering wheel remote control adapter

Blue/White

(Power control wire/ Antenna control wire)

Brown

(Mute control wire)

To the power control terminal when using the optional power amplifier, or to the antenna
control terminal in the vehicle.

To the terminal that is grounded when either the telephone rings or during conversation.
(To connect the Kenwood navigation system, consult your navigation manual.)

Yellow (A4)

Red (Ignition wire)

Red (A7)

Yellow (Battery wire)

Pin

Color and function

A4

Yellow :

Battery

A5

Blue/White : Power control

A7

Red :

Ignition

(ACC)

A8

Black

: Earth (ground) connection

B1 / B2

Purple

ª

 / Purple/black

·

  :  Rear speaker (right)

B3 / B4

Gray

ª

 / Gray/black

·

:  Front speaker (right)

B5 / B6

White

ª

 / White/black

·

  :  Front speaker (left)

B7 / B8

Green

ª

 / Green/black

·

:  Rear speaker (left)

ISO connectors

Connecting the ISO connectors on some VW/
Audi or Opel (Vauxhall) automobiles

You may need to modify the wiring of the
supplied wiring harness as illustrated below.

Unit

Vehicle

A7 (Red)

Ignition wire

(Red)

A4 (Yellow)

Default wiring

Battery wire

(Yellow)

If no connections are made, do not let the wire come out from the tab.

Rear/subwoofer output

Rear output

Front output

Subwoofer output
