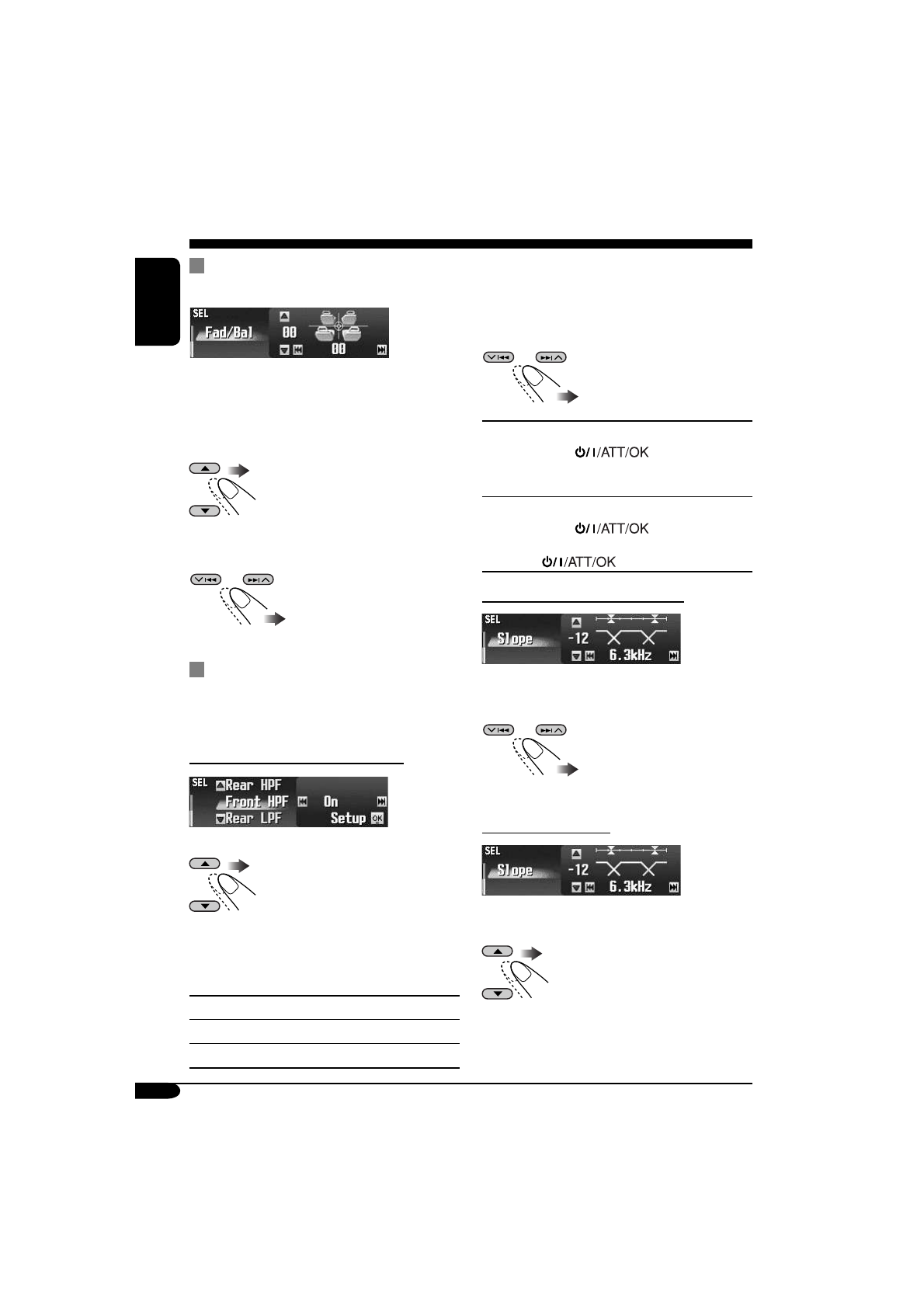

34

ENGLISH

Select “ON” or “OFF.”
•  If you connect high-range speakers to

Front or Rear output, select “ON” for the
corresponding HPF; otherwise, the speakers
may be damaged.

•

  ON / OFF

ON

:

Activates the filter.

\

Press

 to adjust

reproduced frequency level and
slope (see below).

OFF

: Deactivates the filter.

\

Press

.

“Filter Off OK?” appears, then press

 again.

To select the cutoff frequency

Select an appropriate cutoff frequency level
according to speakers.

•

  1.6 kHz

to

 16 kHz

:

For Front HPF and Rear
LPF

•

  31.5 Hz

to

 200 Hz

:

For Rear HPF

To adjust the slope

Adjust the slope—continuity of sound among
speakers.

•

  –18 / –12 / – 6

(dB)

•  As the number becomes higher, the

reproduced band width shared among
speakers becomes wider.

  To adjust fader and balance

—Fad/Bal

Adjust the fader*—speaker output balance
between the front and rear speakers.

* When crossover network is activated, speaker

output balance between high-range and mid-
range speakers is adjusted.

•

  F12

: Upmost—front only

•

  R12

: Downmost—rear

only

Adjust the balance—speaker output balance
between the left and right speakers.

•

  L12

:

Leftmost—left only

•

  R12

:

Rightmost—right
only

  To adjust reproduced frequency

level—Crossover

•  This setting is available only when crossover

network (see page 32) is activated.

To activate the fi lters (HPF/ LPF)

Select an item.

•

  Front HPF / Rear LPF /

Rear HPF

•  For Front HPF and Rear HPF: Frequencies

lower than the selected level are cut off.

•  For Rear LPF: Frequencies higher than the

selected level are cut off.

Front HPF

:

Adjusts HPF for front speakers.

Rear LPF

:

Adjusts LPF for rear speakers.

Rear HPF

:

Adjusts HPF for rear speakers.
