Installation/Connection

Connection

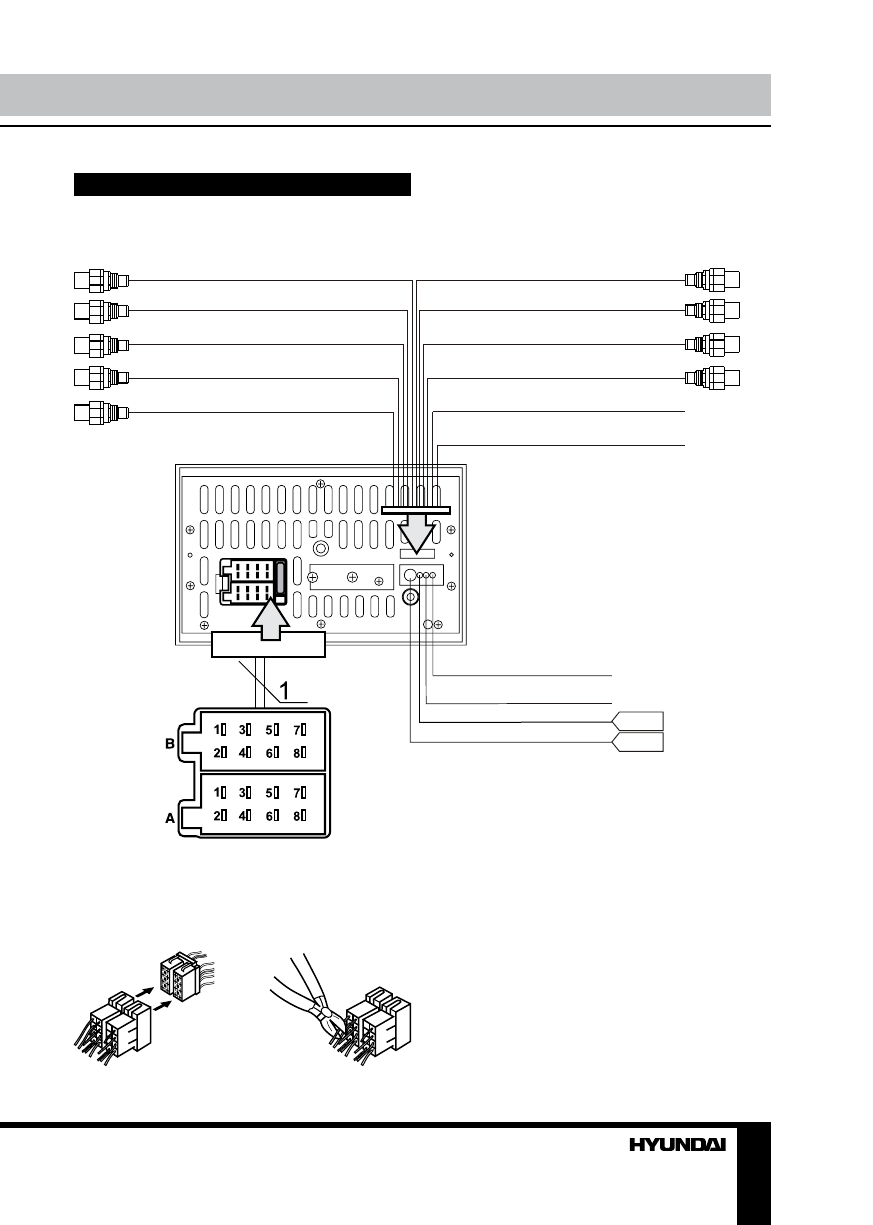

Connection diagram

Camera

(black wire with yellow head)

Line output rear right

(black wire with red head)

Subwoofer

(black wire with blue head)

Line output rear left

(black wire with white head)

Video out

(black wire with yellow head)

Line output front left

(black wire with white head)

TV antenna

(black wire with black head)

USB cable

Line output front right

(black wire with red head)

Parking wire (brown)

Reverse wire (pink)

Radio antenna

GPS antenna (option)

Audio output left

(black wire with white head)

Audio output right

(black wire with red head)

ISO connector

2

Using the ISO Connector

1. If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2. For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.
