Installation/Connection

Connection

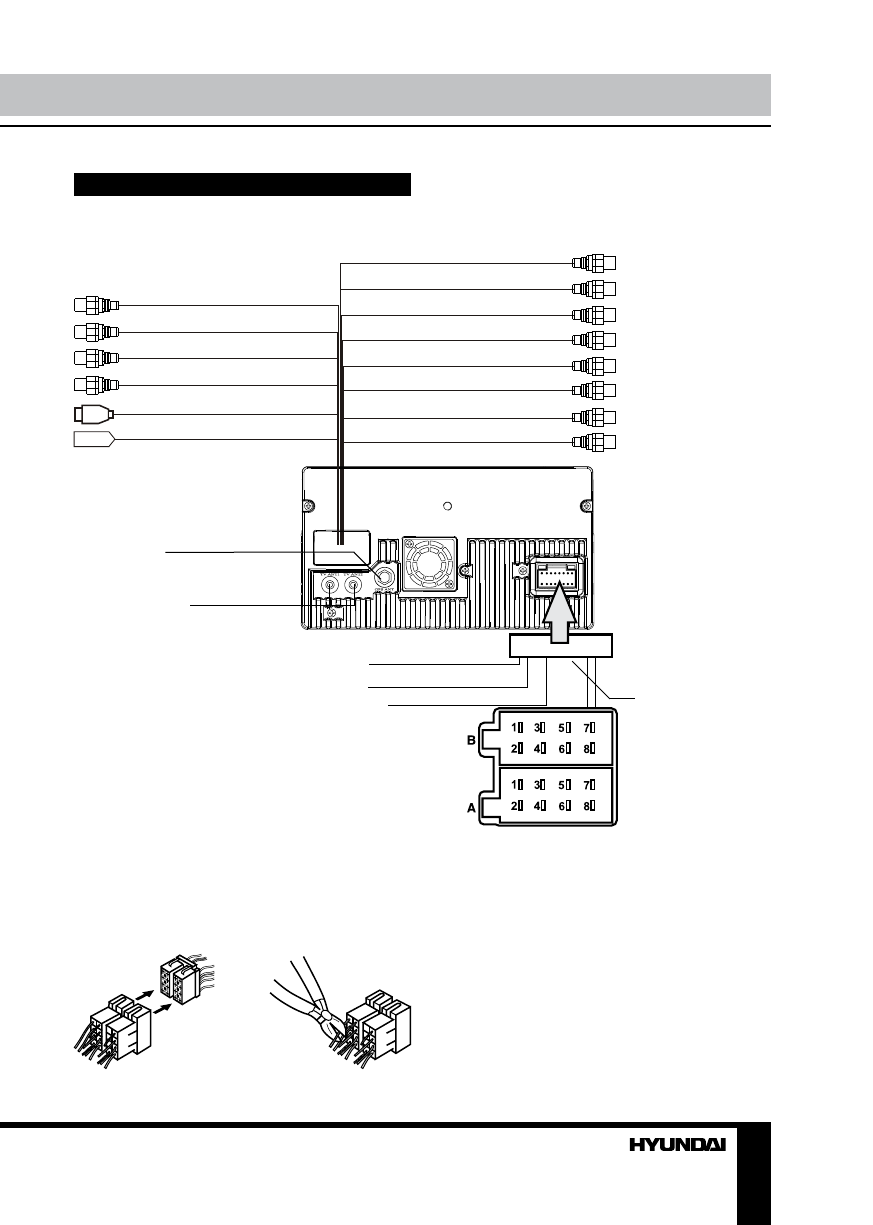

Connection diagram

Parking (brown)

Lamp in (pink)

ISO connector

Reverse (orange)

TV antenna

GPS antenna
(option; intended for
models with GPS)

Subwoofer

Rear monitor 2

Rear monitor 1

Rear zone out 2/R

Rear zone out 1/R

Rear zone out 2/L

Rear zone out 1/L

Front out R/L

Rear out R/L

Light grey line with

yellow head

Light grey line with

yellow head

Light grey line with

red head

Light grey line with

red head

Light grey line with

white head

Light grey line with

white head
Dark grey line with red

and white head
Dark grey line with red

and white head

Brown line with yellow

head

Brown line with brown

head

Black line with yellow

head
Black line with red and

white head

Black

Black

Camera IN

Video IN

AUX IN R/L

USB

Antenna

12

Using the ISO Connector

1. If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2. For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.

1.

2.
