6

Installation/Connection

Connection

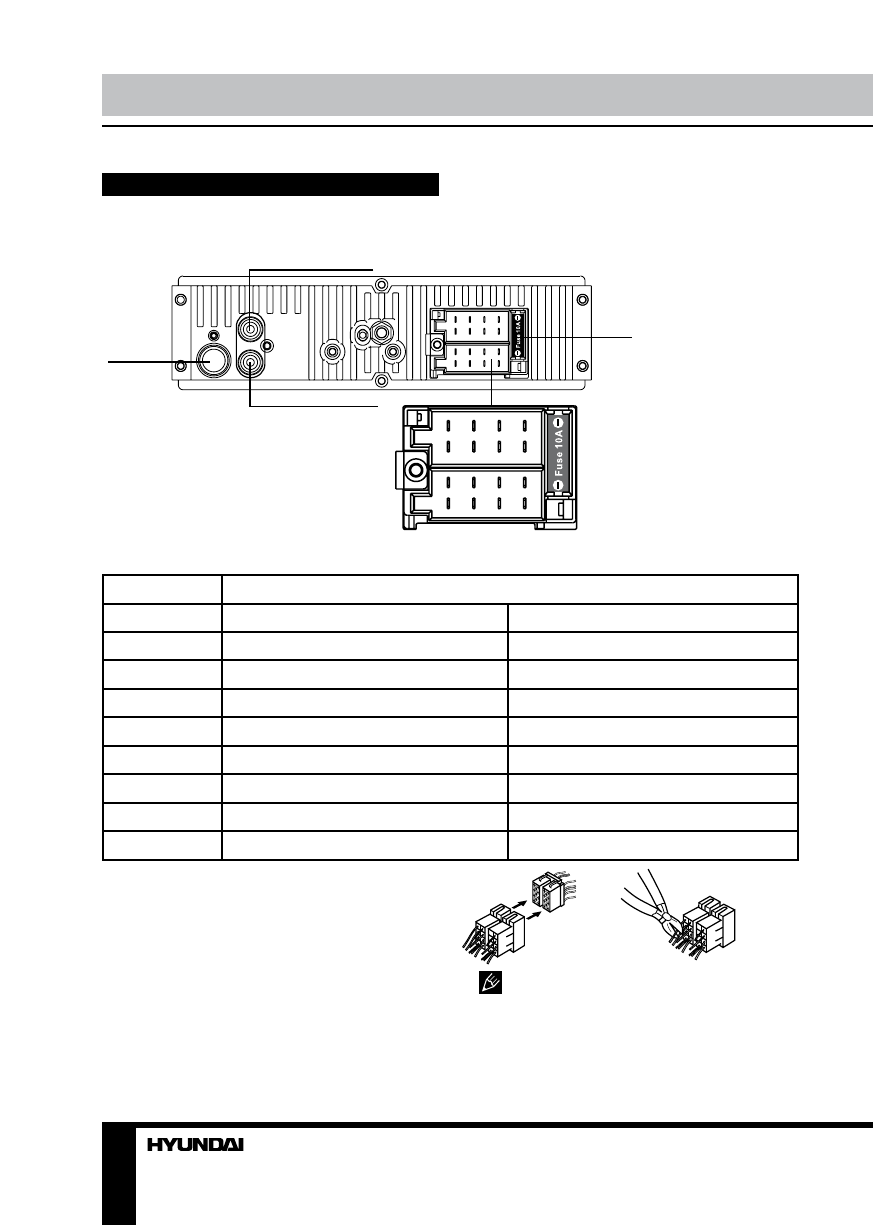

Connection diagram

ANTENNA

SOCKET

FUSE

B

A

ISO CONNECTOR

1

1

5

5

3

3

7

7

2

2

6

6

4

4

8

8

RCA OUT RIGHT (red)

RCA OUT LEFT (white)

Using the ISO Connector

Location

Function

Connector A

Connector B

1

-

Rear Right(+)---Blue

2

-

Rear Right(-)---Blue/White Stripe

3

-

Front Right(+)---Grey

4

Battery 12V (+)/yellow

Front Right(-)---Grey/White Stripe

5

Power Antenna/Orange

Front Left(+)---Green

6

Panel light/White

Front Left((-)---Green/White Stripe

7

ACC+/red

Rear Left(+)---Brown

8

Ground/black

Rear Left(-)---Brown/White Stripe

1.   If your car is equipped with the ISO

connector, then connect the ISO connectors as

illustrated.

2.  For connections without the ISO

connectors, check the wiring in the vehicle

carefully before connecting, incorrect connection

may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown

in the colour code table above for speaker and

power cable connections.

  Panel light wire should be connected

to “+” of the side parking lights wire. Power
antenna wire is intended for power supply
of the antenna and for remote control of an
additional amplifier.
