ATLAS D 30 K 100

23

EN

cod. 3540S361  -  08/2009  (Rev. 00)

EN

1. GENERAL INSTRUCTIONS

•

Carefully read the instructions contained in this instruction booklet.

•

After boiler installation, inform the user regarding its operation and give him this manual, which is
an integral and essential part of the product and must be kept with care for future reference.

•

Installation and maintenance must be carried out by professionally qualified personnel, according
to current regulations and the manufacturer's instructions. Do not carry out any operation on the
sealed control parts.

•

Incorrect installation or inadequate maintenance can result in damage or injury. The Manufacturer
declines any liability for damage due to errors in installation and use or failure to follow the instruc-
tions.

•

Before carrying out any cleaning or maintenance operation, disconnect the unit from the power
supply using the system switch and/or the special cut-off devices.

•

In case of a fault and/or poor operation, deactivate the unit and do not attempt to repair it or directly
intervene. Contact professionally qualified personnel. Repair/replacement of the products must
only be carried out by professionally qualified using original spare parts. Failure to comply with the
above could affect the safety of the unit.

•

This unit must only be used for its intended purpose. Any other use is considered improper and
therefore dangerous.

•

The packing materials are potentially hazardous and must not be left within the reach of children.

•

The images given in this manual are a simplified representation of the product. In this represen-
tation there may be slight and insignificant differences with respect to the product supplied.

2. OPERATING INSTRUCTIONS

2.1 Introduction

Dear Customer,

Thank you for choosing a

FERROLI

 boiler featuring advanced design, cutting-edge tech-

nology, high reliability and quality construction. Please read this manual carefully since
it provides important information on safe installation, use and maintenance.

ATLAS D 30 K 100

 is a high-efficiency heat generator for heating and domestic hot water

production, suitable for operating with oil or gas burners (blown). The boiler shell consists
of cast-iron elements, assembled with double cones and steel stays placed over a DHW
quick storage domestic hot water tank, vitrified, and protected against corrosion by a
magnesium anode. The control system is with microprocessor and digital interface with
advanced temperature control functions.

2.2 Control panel

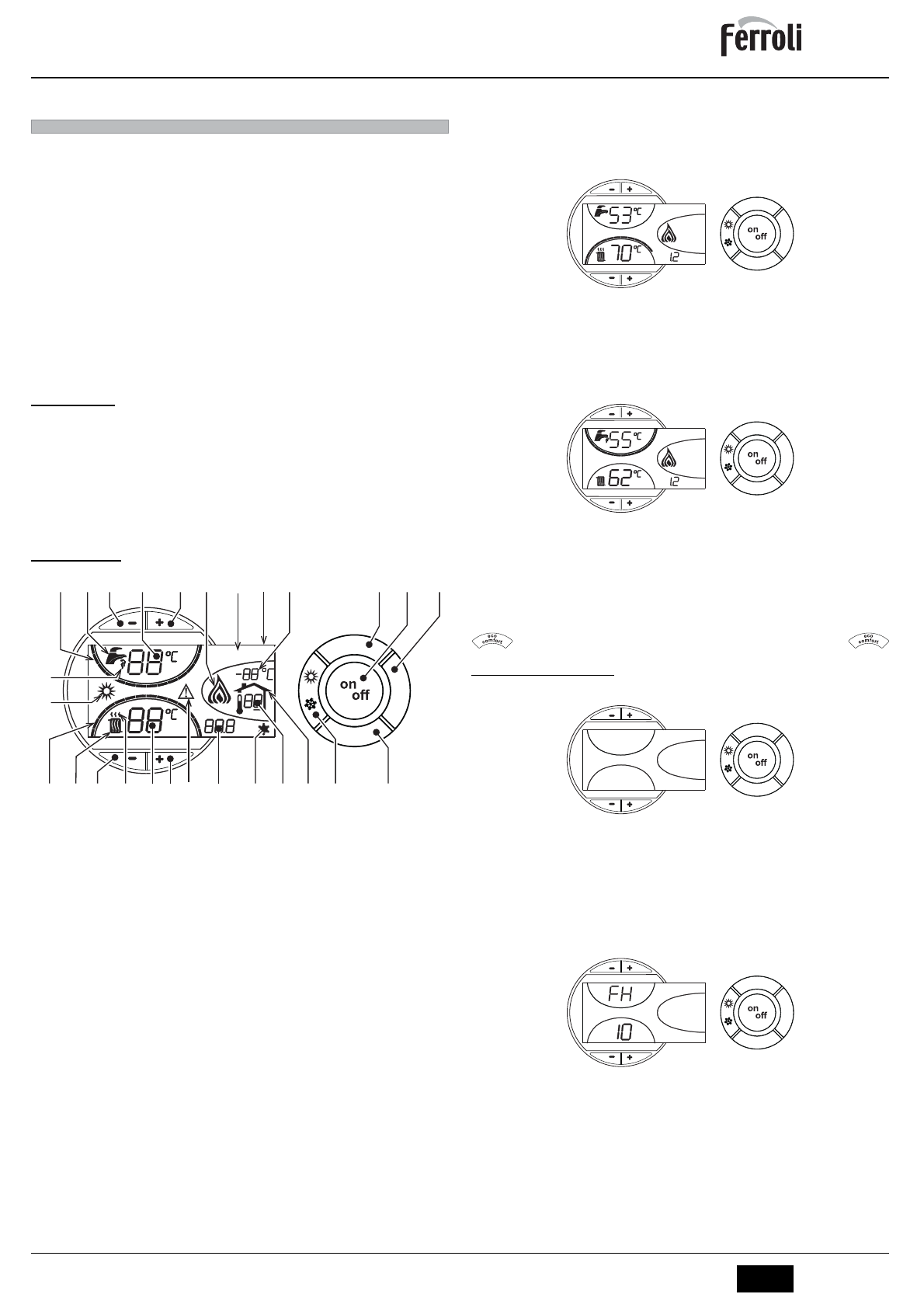

fig. 1  - Control panel

Key

1 =

DHW temperature setting decrease button

2 =

DHW temperature setting increase button

3 =

Heating system temperature setting decrease button

4 =

Heating system temperature setting increase button

5 =

Display

6 =

Summer / Winter mode selection button

7 =

Economy / Comfort mode selection button

8 =

Reset button

9 =

Unit On / Off button

10 =

"Sliding Temperature" menu button

11 =

Set DHW temperature reached

12 =

DHW symbol

13 =

DHW mode

14 =

DHW outlet temperature / setting

15 =

Eco (Economy) or Comfort mode

16 =

External sensor temperature (with optional external probe)

17 =

Appears on connecting the external Probe or the Remote Timer Control (op-
tionals)

18 =

Room temperature (with optional Remote Timer Control)

19 =

Burner On

20 =

Antifreeze operation

21 =

Heating system pressure

22 =

Fault

23 =

Heating delivery temperature / setting

24 =

Heating symbol

25 =

Heating mode

26 =

Set heating delivery temperature reached

27 =

Summer mode

Indication during operation

Heating

A heating demand (generated by the Room Thermostat or Remote Timer Control) is in-
dicated by flashing of the hot air above the radiator (details 24 and 25 - fig. 1).

The heating graduation marks (detail 26 - fig. 1) light up as the heating sensor tempera-
ture reaches the set value.

fig. 2

DHW (Comfort)

A DHW demand (generated by drawing domestic hot water) is indicated by flashing of
the hot water under the tap (details 12 and 13 - fig. 1). Make sure the Comfort function
(detail 15 - fig. 1) is activated

The DHW graduation marks (detail 11 - fig. 1) light up as the DHW sensor temperature
reaches the set value.

fig. 3

Hot water tank exclusion (economy)

Hot water storage tank temperature maintaining/heating can be excluded by the user. If
excluded, domestic hot water will not be delivered.

When hot water tank heating is activated (default setting), the COMFORT symbol (detail
15 - fig. 1) is activated on the display, and when off, the ECO symbol (detail 15 - fig. 1)
is activated on the display

The hot water tank can be deactivated by the user (ECO mode) by pressing the button

 (detail 7 - fig. 1). To activate the COMFORT mode, press the button

(detail 7 - fig. 1) again.

2.3 Lighting and turning off

Boiler not electrically powered

fig. 4 - Boiler not electrically powered

B

The antifreeze system does not work when the power and/or gas to the unit are
turned off. To avoid damage caused by freezing during long idle periods in win-
ter, it is advisable to drain all water from the boiler, DHW circuit and system; or
drain just the DHW circuit and add a suitable antifreeze to the heating system,
complying with that prescribed in sec. 3.3.

Boiler lighting

•

Open the fuel on-off valves.

•

Switch on the power to the unit.

fig. 5 - Boiler lighting

•

For the following 120 seconds the display will show FH which identifies the heating
system air venting cycle.

•

During the first 5 seconds the display will also show the card software version.

•

When the message FH disappears, the boiler is ready to operate automatically
whenever domestic hot water is drawn or in case of a room thermostat demand.

eco

comfort

m

od

e

r e s e t

ecomfort

bar

5

7

9

10

2

1

8

6

4

3

12

14

11

13

15

16

17

18

20

21

22

23

25

24

26

27

19

eco

comfort

m

o

de

r e s e t

eco

bar

eco

comfort

m

o

de

r e s e t

comfort

bar

eco

comfort

m

od

e

r e s e t

eco

comfort

m

od

e

r e s e t
