ATLAS D 30 K 100
24
EN
cod. 3540S361 - 08/2009 (Rev. 00)

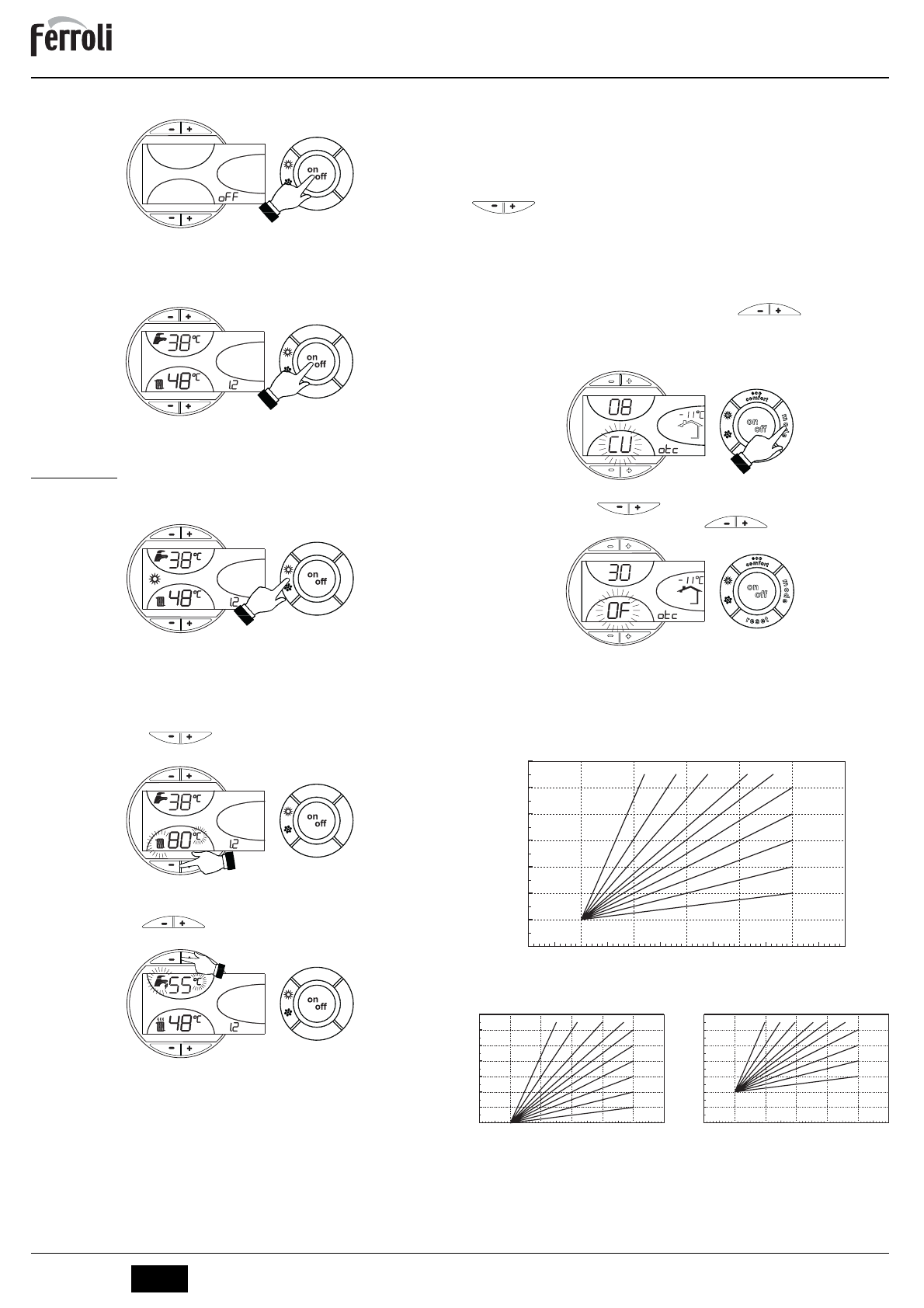

Turning the boiler off
Press the
on/off
button (detail 9 - fig. 1) for 1 second.
fig. 6 - Turning the boiler off
When the boiler is turned off, the PCB is still powered.
Domestic hot water and heating are disabled. The antifreeze system remains activated.
To relight the boiler, press the
on/off
button (detail 9 fig. 1) again for 1 second.
fig. 7
The boiler will be immediately ready to operate whenever domestic hot water is drawn
or in case of a room thermostat demand.
2.4 Adjustments
Summer/Winter Switchover
Press the
summer/winter
button (detail 6 - fig. 1) for 1 second.
fig. 8
The display activates the Summer symbol (detail 27 - fig. 1): the boiler will only deliver
domestic hot water. The antifreeze system remains activated.
To deactivate the Summer mode, press the
summer/winter
button (part. 6 - fig. 1) again
for 1 second.
Heating temperature setting
Use the heating buttons
(details 3 and 4 - fig. 1) to adjust the temperature
from a min. of 30°C to a max. of 90°C; it is inadvisable to operate the boiler below 45°C.
fig. 9
DHW temperature adjustment
Use the DHW buttons
(details 1 and 2 - fig. 1) to adjust the temperature
from a min. of 10°C to a max. of 65°C.
fig. 10
Room temperature adjustment (with optional room thermostat)
Using the room thermostat, set the temperature desired in the rooms. If the room ther-
mostat is not installed the boiler will keep the heating system at its setpoint temperature.
Room temperature adjustment (with optional remote timer control)
Using the remote timer control, set the temperature desired in the rooms. The boiler unit
will set the system water according to the required room temperature. For information on
the remote timer control, please refer to its user's manual.
Sliding Temperature
When the optional external probe is installed, the control panel display (detail 5 - fig. 1)
shows the actual outside temperature detected by the external probe. The boiler control
system operates with "Sliding Temperature". In this mode, the heating system tempera-
ture is controlled according to the outside weather conditions in order to ensure high
comfort and energy efficiency throughout the year. In particular, as the outside temper-
ature increases the system delivery temperature decreases according to a specific "com-
pensation curve".
With Sliding Temperature adjustment, the temperature set with the heating buttons
(detail 3 and 4 - fig. 1) becomes the maximum system delivery tempera-
ture. It is advisable to set a maximum value to allow system adjustment throughout its
useful operating range.
The boiler must be regulated at the time of installation by qualified personnel. Possible
adjustments can in any case be made by the user to improve comfort.
Compensation curve and curve offset
Press the
mode
button (detail 10 - fig. 1) once to display the compensation curve
(fig. 11) which can be modified with the DHW buttons
(details 1 and 2 -
fig. 1).
Adjust the required curve from 1 to 10 according to the characteristic (fig. 13).
By setting the curve to 0, sliding temperature adjustment is disabled.
fig. 11 - Compensation curve
Press the heating buttons
(details 3 and 4 - fig. 1) to access parallel curve
offset (fig. 14), modifiable with the DHW buttons
(details 1 and 2 - fig. 1).
fig. 12 - Curve parallel offset
Press the
mode
button (detail 10 - fig. 1) again to exit the parallel curve adjustment
mode.
If the room temperature is lower than the required value, it is advisable to set a higher
order curve and vice versa. Proceed by increasing or decreasing in steps of one and
check the result in the room.
fig. 13 - Compensation curves
fig. 14 - Example of compensation parallel curve offset
eco
comfort
m
o
de
r e s e t
eco
comfort
m
o
de
r e s e t
eco
bar
eco
co mfort
m
o
de
r e s e t
eco
bar
eco
comfort
m
o
de
r e s e t
eco
bar
eco
comfort
m
od
e
r e s e t
eco
bar
20
30
40
50
60
70
80
90
85
20
10
0
-10
-20
1
2
3
4
5
6
8
9
10
7
20
30
40
50
60
70
80
90
85
20
10
0
-10
-20
1
2
3
4
5
6
8
9
10
7
20
10
0
-10
-20
20
30
40
50
60
70
80
90
85
1
2
3
4
5
6
8
9
10
7
OFFSET = 20
OFFSET = 40
