ATLAS D 30 K 100
27
EN
cod. 3540S361 - 08/2009 (Rev. 00)

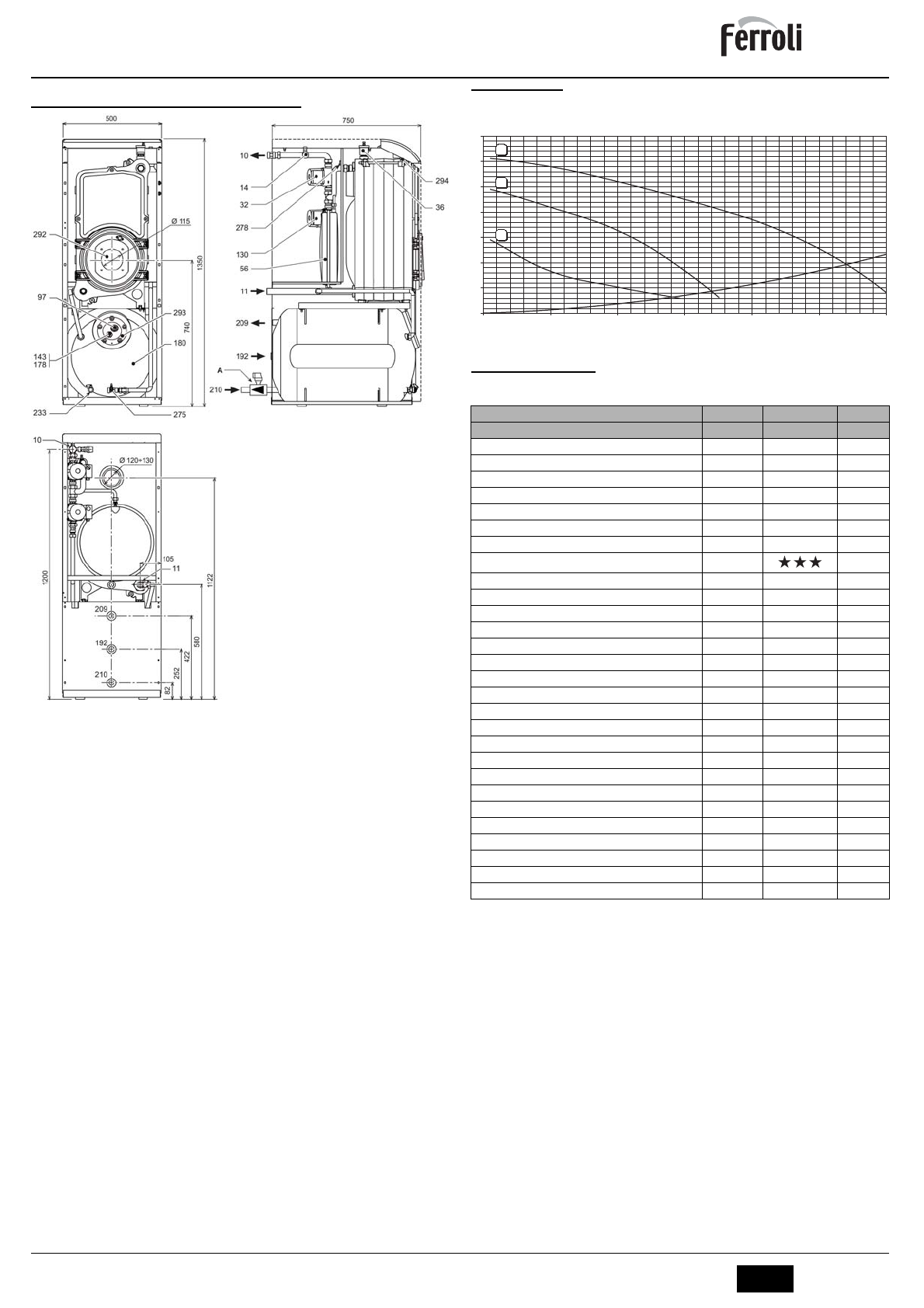

5. TECHNICAL DATA AND CHARACTERISTICS
5.1 Dimensions, connections and main components
fig. 18 - Dimensions, connections and main components
A
Safety and non-return valve
10
System delivery 3/4”
11
System return 1”
14
Heating safety valve
32
Heating circulating pump
36
Automatic air vent
56
Expansion tank
97
Magnesium anode
130
Hot water tank circulating pump
143
Hot water tank control thermostat
178
Hot water tank thermometer bulb
180
Hot water tank
192
Recirculation
209
Hot water tank delivery 3/4”
210
Hot water tank return 3/4”
233
Hot water tank drain cock
275
Heating system drain cock
278
Double sensor (Safety + Heating)
292
B
urner connection hole
293
Hot water tank inspection flange
294
Heating system pressure sensor
5.2 Pressure loss
Circulating pumps Head/Pressure loss
fig. 19 - Pressure losses
5.3 Technical data table
Data
Unit
Value
Model
D 30 K 100
Number of elements
no.
3
Max. heating capacity
kW
32.2
(Q)
Min. heating capacity
kW
16.9
(Q)
Max. heat output in heating
kW
30
(P)
Min. heat output in heating
kW
16
(P)
Efficiency Pmax (80-60°C)
%
93.0
Efficiency 30%
%
94.6
Efficiency class Directive 92/42 EEC
Max. working pressure in heating
bar
6
(PMS)
Min. working pressure in heating
bar
0.8
Max. heating temperature
°C
95
tmax
Heating water content
L
21
Heating expansion tank capacity
L
10
Heating expansion tank prefilling pressure
bar
1
Max. working pressure in hot water production
bar
9
(PMW)
Min. working pressure in hot water production
bar
0.1
Hot water content
L
100
Hot water expansion tank capacity
L
4
DHW flowrate Dt 30°C
l/10 min
220
DHW flowrate Dt 30°C
l/h
800
Protection rating
IP
X0D
Power supply voltage
V/Hz
230/50
Electrical power input
W
90
Electrical power input in hot water production
W
80
Empty weight
kg
210
Combustion chamber length
mm
350
Combustion chamber diameter
mm
300
Pressure loss on fume side
mbar
0.59
0
1
2
3
4
5
6
7
0
0.5
1
1.5
2
Q
[m
3
/h]
H
[m H
2
O]
3
1
2
2.5
3
