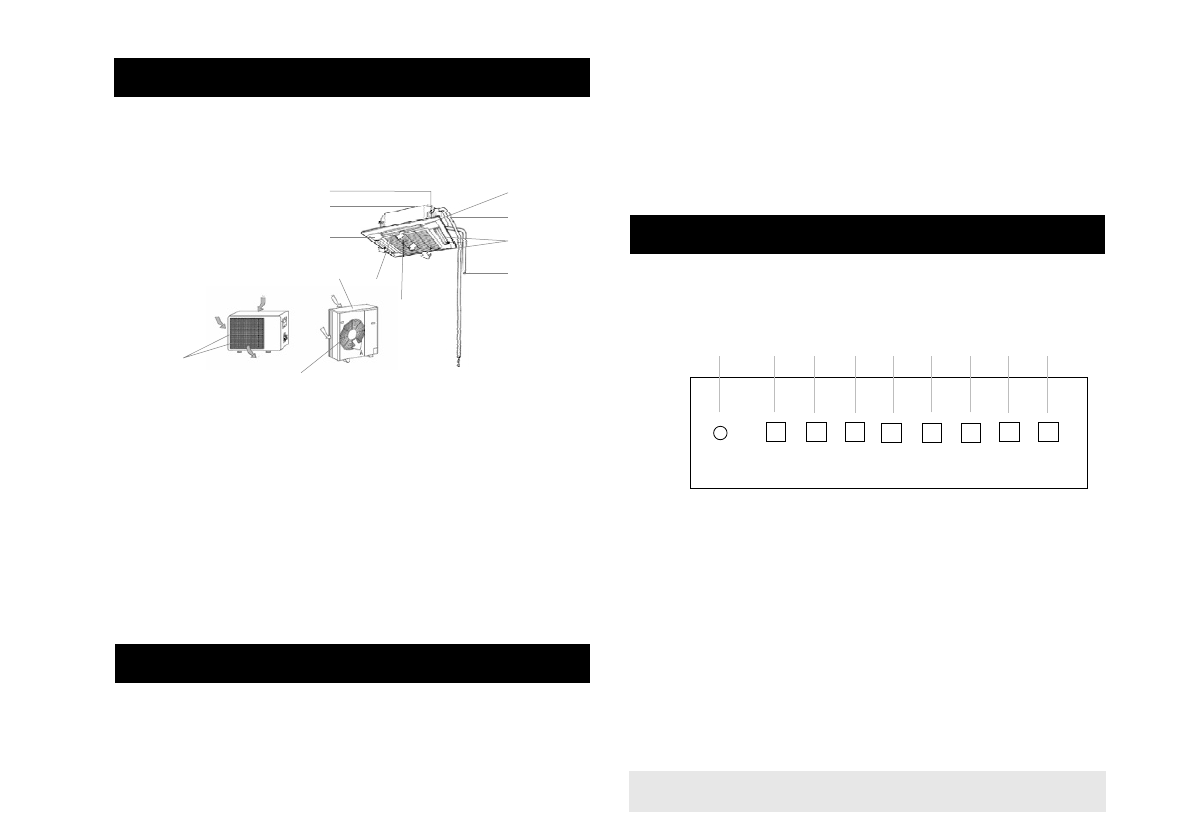

4. APPLIANCE DESCRIPTION

5. DELIVERY SET

6. APPLIANCE CONTROL

The conditioner consists of indoor and outdoor units connected by

pipelines. The indoor unit has an adjoining end panel supplied with the

conditioner as utilities. The conditioner is controlled from a remote control

board or from a control panel of the indoor unit.

Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation  - 1 piece
Panel for indoor unit (utilities) - 1 piece

1. Conditioner unit for indoor installation
2. End panel of indoor-installation unit
3. Control and indication panel
4. Blinds (deflectors) for distribution of treated air
5. Air inlet of indoor unit
6. Mounting plate
7. Tube for condensate removal
8. Copper tube for gas (freon).
9. Conditioner unit for outdoor installation
10. Air inlets of outdoor unit
11. Return air grillages of outdoor unit

The conditioner is controlled from a remote control board or from a control

panel of the indoor unit.

Description of indoor unit control board (situated on end panel of the

indoor unit)

12. Receiver of IR-light signals from the remote control board.
13. Power-on indicator.
14. Indicator Heating mode.
15. Indicator Cooling mode.
16. Time-cloock indicator.
17. Conditioner control button in the absence of the remote control board.
18. Temperature indicator.
19.Sleeping mode indicator.
20. Dry moode indicator

Control and indication board of your conditioner may visually differ from a

layout view shown below. Its functions will remain the same.

10

2

6

1

11

9

4

4

5

8

7

3

Conditioner unit for outdoor installation - 1 piece
Remote control - 1 piece
Batteries for remote control board - 2 pcs.
Operator’s manual -1 piece
Warranty card- 1 piece
Packing of indoor-installation unit - 1 piece
Packing of indoor unit panel - 1 piece
Packing of outdoor-installation unit - 1 piece

Fig. 1

Fig. 2

17

13

14

15

18

19

20

16

12
