1. Household air conditioner 1 pc.
2. Remote control (batteries are not supplied, 1,5V

UM4 AAA CR03 batteries are required) 1 pc.
3. Drainage pipe 1 pc. (additional options - not

supplied)
4. Air outlet hose 1 pc.

5. DELIVERY SET

6. APPLIANCE CONTROL

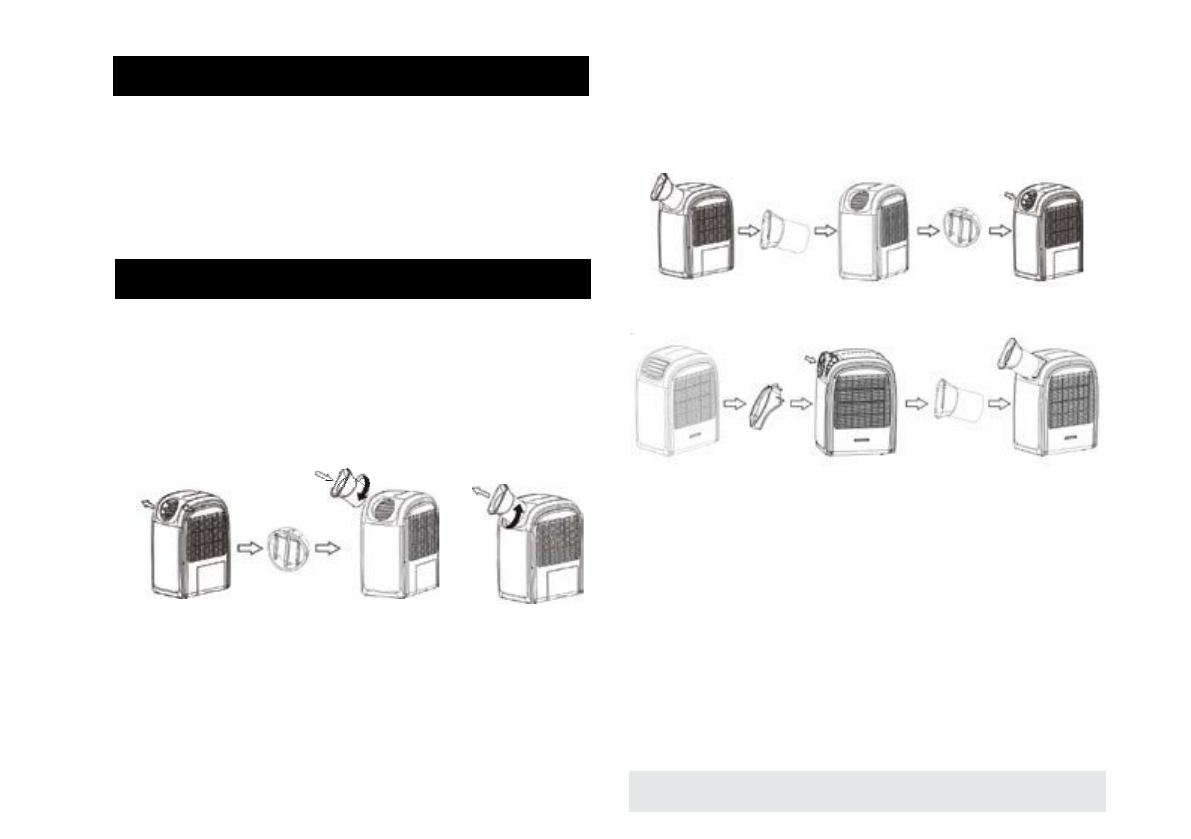

Installation of air outlet hose (Fig. 4)
1. Prior to operation of the unit take off the removable cover and get the

air outlet hose, then insert it in the hole.
2. Rotate the air outlet hose in the direction, indicated by arrow 1 and

take it out from the removable grill.
3. Rotate the air outlet hose in the direction, indicated by arrow 2 and

connect it to the removable grill.

Installation of the hose in cooling / heating modes (Fig. 6)
To switch the air conditioner to heating it is necessary to install the hose

to the side, where cold air is coming out. To switch the air conditioner

to cooling it is necessary to install the hose to the side, where warm air

Fig. 4.

Fig. 5.

Fig. 6.

is coming out.
To switch the unit to the required mode (cooling/heating):
Disconnect the removable grill and the air outlet hose, then interchange

their position and connect to the unit. Final structure is shown in Fig.

5-6.
