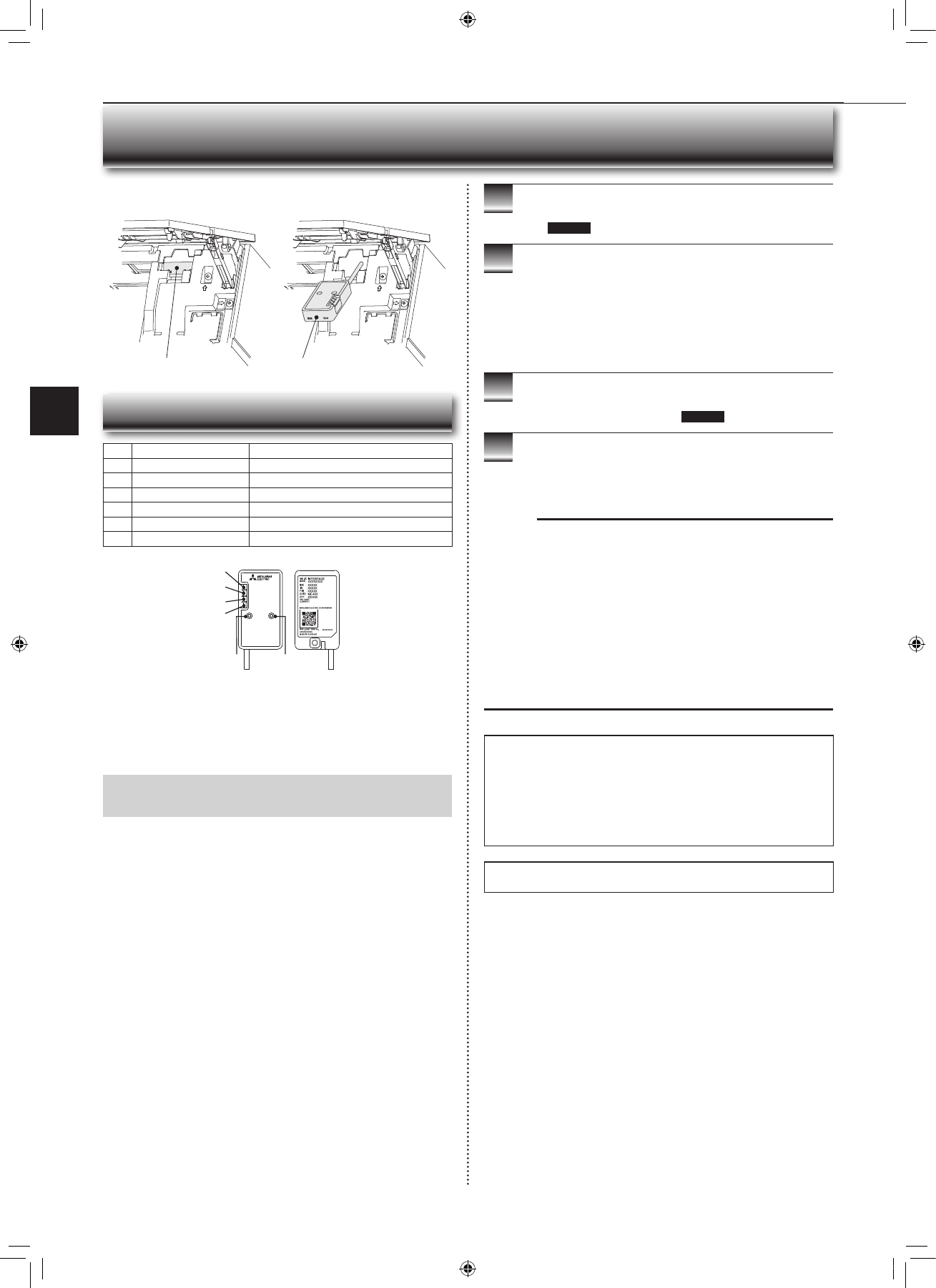

En-15

● OPERATING INSTRUCTIONS ●

W

i-Fi INTERFACE SETTING UP

This Wi-Fi interface, communicates the status information and controls

the commands from the MELCloud by connecting to an indoor unit.

Wi-Fi interface introduction

No.

Item

Description

1

MODE switch

It selects modes.

2

RESET switch

It resets the system and ALL settings.

3

ERR LED (Orange)

It shows the network error state.

4

NET LED (Green)

It shows the network state.

5

MODE LED (Orange)

It shows the Access point mode state.

6

UNIT LED (Green)

It shows the indoor unit state.

RESET

ERR

NET

MODE

UNIT

MODE

3

4

5

6

2

1

(1) MODE switch

•  The MODE switch is used for selecting modes in confi gurations.

(2) RESET switch

•  Hold down the RESET switch for 2 seconds to reboot the system.

•  Hold down the RESET switch for 14 seconds to initialize the Wi-Fi interface

to the factory default.

When the Wi-Fi interface is reset to the factory default, ALL the con-

fi guration information will be lost. Take great care in implementing this

operation.

1

Open the front panel and remove the Wi-Fi inter-
face.

Page 14

 (Front panel)

2

Set up a connection between the Wi-Fi interface and
the router. Refer to the SETUP MANUAL and SETUP
QUICK REFERENCE GUIDE provided with the unit.

For SETUP MANUAL, please go to the website below.
http://www.melcloud.com/Support

3

Put the Wi-Fi interface back and close the front panel
after the setup is completed.

Page 14

 (Front panel)

4

For MELCloud User Manual, please go to the website
below.
http://www.melcloud.com/Support

Note:

•  Ensure  that  the  Router  supports  the  WPA2-AES  encryption  setting  before

starting the Wi-Fi interface setup.

•  The End user should read and accept the terms and conditions of the Wi-Fi

service before using this Wi-Fi interface.

•  To complete connection of this Wi-Fi interface to the Wi-Fi service, the Rout-

er may be required.

•  This Wi-Fi interface will not commence transmission of any operational data

from the system until the End user registers and accepts the terms and con-

ditions of the Wi-Fi service.

•  This Wi-Fi interface should not be installed and connected to any Mitsubishi

Electric system which is to provide application critical cooling or heating.

•  Please write down the information regarding the Wi-Fi interface setting on the

last page of this manual, when you set up this Wi-Fi interface.

•  At  the  time  of  relocation  or  disposal,  reset  the  Wi-Fi  interface  to  the  factory

default.

Mitsubishi Electric’s Wi-Fi interface is designed for communication to

Mitsubishi Electric’s MELCloud Wi-Fi service.

Third party Wi-Fi interfaces cannot be connected to MELCloud.

Mitsubishi Electric is not responsible for any (i) underperformance of a

system or any product;

(ii) system or product fault; or (iii) loss or damage to any system or product;

which is caused by or arises from connection to and/or use of any third

party Wi-Fi interface or any third party Wi-Fi service with Mitsubishi Electric

equipment.

For the latest information regarding MELCloud from Mitsubishi Electric

Corporation, please visit www.MELCloud.com.

Wi-Fi interface

Wi-Fi interface
