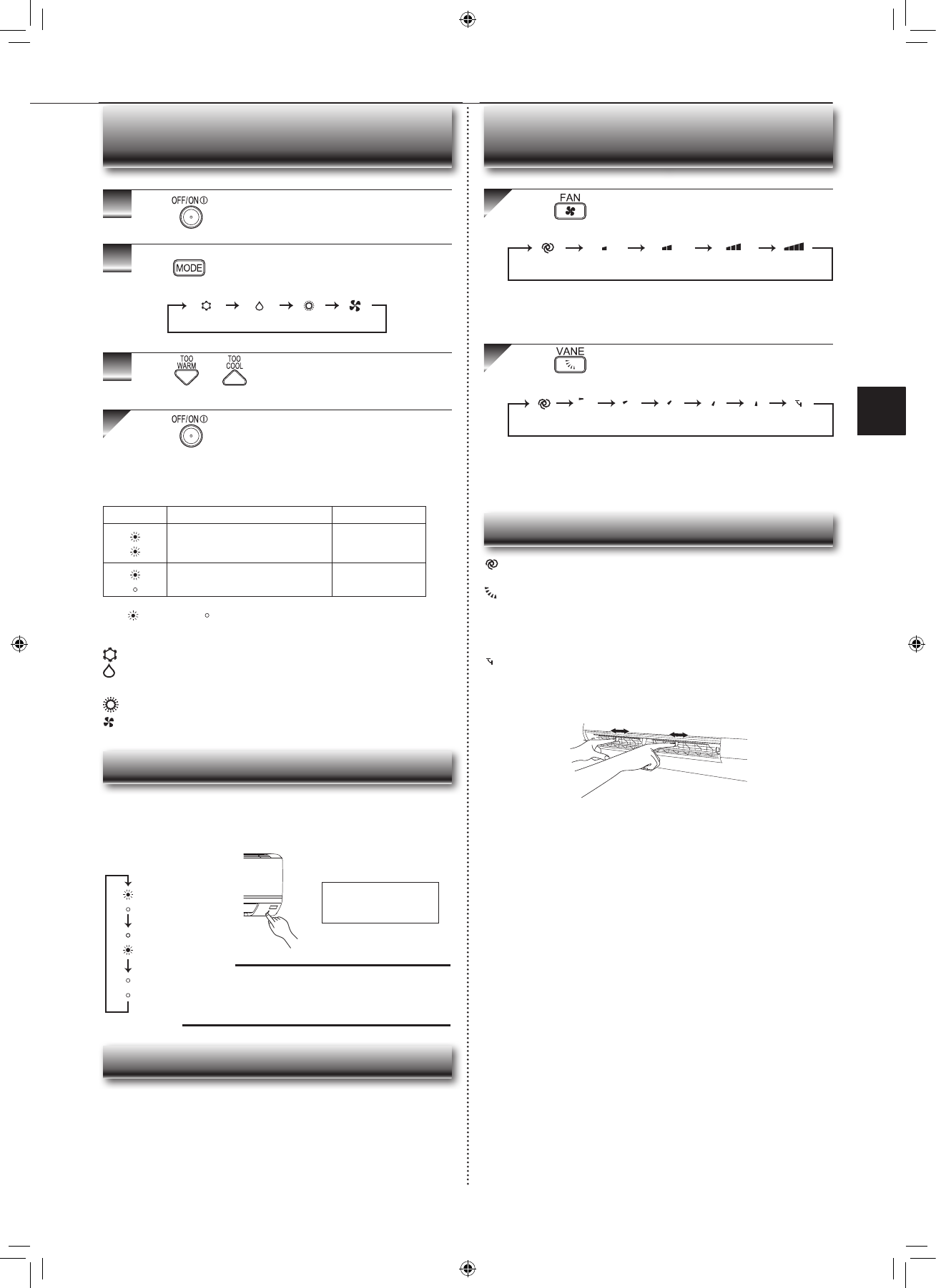

En-4

1

Press

 to start the operation.

2

Press

 to select operation mode. Each press

changes mode in the following order:

3

Press

 or

 to set the temperature.

Each press raises or lowers the temperature by 1°C.

Press

 to stop the operation.

S

ELECTING  OPERATION  MODES

 (COOL)

(DRY)

(HEAT)  (FAN)

Operation indicator lamp

The operation indicator lamp shows the operation state of the unit.

Indication

Operation state

Room temperature

The unit is operating to reach the set

temperature

About  2°C  or  more

away from set tem-

perature

The room temperature is approach-

ing the set temperature

About 1 to 2°C from

set temperature

  Lit

  Not lit

  COOL mode

Enjoy cool air at your desired temperature.

  DRY mode

Dehumidify your room. The room may be cooled slightly.

Temperature cannot be set during DRY mode.

 HEAT mode

Enjoy warm air at your desired temperature.

  FAN mode

Circulate the air in your room.

Operation indicator lamp

Emergency operation

When the remote controller cannot be used...

Emergency  operation  can  be  activated  by  pressing  the  emergency  operation

switch (E.O.SW) on the indoor unit.

Each time the E.O.SW is pressed, the operation changes in the following order:

Auto restart function

If a power failure occurs or the main power is turned off during operation, “Auto

restart  function”  automatically  starts  operation  in  the  same  mode  as  the  one

set with the remote controller just before the shutoff of the main power. When

timer is set, timer setting is cancelled and the unit starts operation when power

is resumed.

If you do not want to use this function, please consult the service repre-

sentative because the setting of the unit needs to be changed.

Set temperature : 24°C

Fan speed : Medium

Horizontal vane : Auto

Emergency COOL

Stop

Note:

•  The fi rst 30 minutes of operation is test run. Temperature

control does not work, and fan speed is set to High.

•  In the emergency heating operation, the fan speed gradu-

ally rises to blow out warm air.

Emergency HEAT

F

AN SPEED  AND  AIRFLOW

DIRECTION  ADJUSTMENT

Press

 to select fan speed. Each press changes

fan speed in the following order:

• Two short beeps are heard from the indoor unit when set to AUTO.

• Use higher fan speed to cool/heat the room quicker. It is recommended

to lower the fan speed once the room is cool/warm.

• Use lower fan speed for quiet operation.

Press

 to select airfl ow direction. Each press

changes airfl ow direction in the following order:

•  Two short beeps are heard from the indoor unit when set to AUTO.

•  Always  use  the  remote  controller  when  changing  the  direction  of  air-

flow. Moving the horizontal vanes with your hands causes them to mal-

function.

(AUTO)

(Low)

(Med.)

(High)

(Super High)

(AUTO)

(1)

 (2)

(3)

(4)

(5)  (SWING)

Airflow direction

  (AUTO) .........The vane is set to the most effi cient airfl ow direction. COOL/

DRY/FAN:horizontal position. HEAT:position (4).

  (Manual) .......For  efficient  air  conditioning,  select  the  upper  position  for

COOL/DRY,  and  the  lower  position  for  HEAT.  If  the  lower

position is selected during COOL/DRY, the vane automatically

moves  to  the  upward  position  after  0.5  to  1  hour  to  prevent

any condensation from dripping.

  (Swing) .........The vane moves up and down intermittently.

■

To change the horizontal airfl ow direction.

  Move the vertical vane manually before starting operation.
