Electric  air conditioner (split system)

EN

Fig. 4

The outlooking and some function of remote control may vary according to

the model.

The shape and position of buttons and indicators may vary according to the

model, but their function is the same.

The unit confirms the correct reception of each press button with a sound signal.

In order to avoid malfunction of the remote control board do not insert used

batteries or batteries of various types.

If the conditioner is not used for a long time, remove batteries from the

board or else electrolyte may leak and damage the board.

In normal operation of the conditioner average service life of batteries will be

about a half-year.

Replace batteries, if command receiving is not confirmed with an audio

signal, or if the display does not show a sign of command transfer. When

generating commands from the remote control board, point an IR-radiator at

a remote-control signal receiver situated on the indoor unit. Hold the remote

control board at the distance of no more than 8 m from the indoor unit. The

remote control board will not work, if there are any curtains, doors or other

things between it and the indoor unit. Protect the board from water and

exposure to direct sunlight and heat sources.

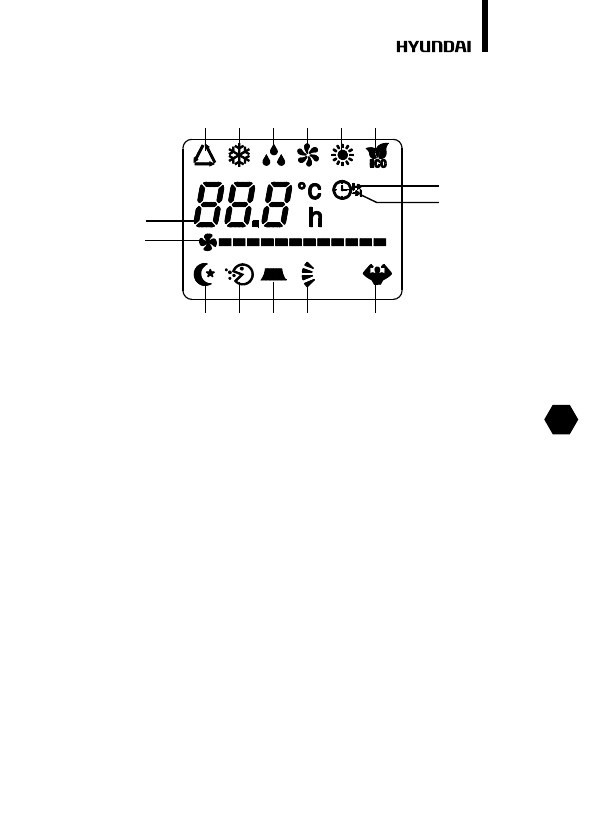

Remote control display

а) FEEL mode indicator
b) COOLING indicator
c) DEHUMIDIFYING indicator
d) FAN ONLY OPERATION indicator
e) HEATING indicator
f) ECO indicator
g) CLOCK indicator
h) TIMER OFF indicator
i) TIMER ON indicator

j) FAN indicator:
AUTO;
LOW/ MIDDLE/ HIGH FAN SPEED
k) SLEEP indicator
l) HEALTH indicator
m) FLAP SWING indicator
n) FLAP SWING indicator
o) TURBO

 indicator
