Electric  air conditioner (split system)

EN

5. DELIVERY SET

Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation – 1 piece
Conditioner unit for outdoor installation – 1 piece
Remote control – 1 piece
Batteries for remote control board – 2 pcs.
Operator’s manual with warranty card – 1 piece
Packing of indoor-installation unit – 1 piece
Packing of outdoor-installation unit – 1 piece

6. DEVICE CONTROL

Description of indoor unit control board

The conditioner is controlled from a remote control board or from a control

panel of the indoor unit. Control and indication board of your conditioner may

visually differ from a layout view shown below. Its functions will remain the same.
Emergency control shall be used if the remote control board is lost or

broken, or batteries are low. Using an emergency control button situated

on the indoor unit control panel you may select COOL or AUTO mode of the

conditioner work. Pressing this button, select a mode of the conditioner work:

AUTO, COOL, the conditioner is OFF, AUTO again, etc.
1. Auto mode. The operation indicator lights up and the air conditioner works

in the forced automatic mode. The remote controller can be used.

2. Forced cooling. The operation indicator blinks and the air conditioner

works in the forced cooling mode. The fan speed is high for 30 min. The

remote controller cannot be used.

3. Off mode. The indicator is extinguished and the air conditioner does not

work. The remote controller can be used.

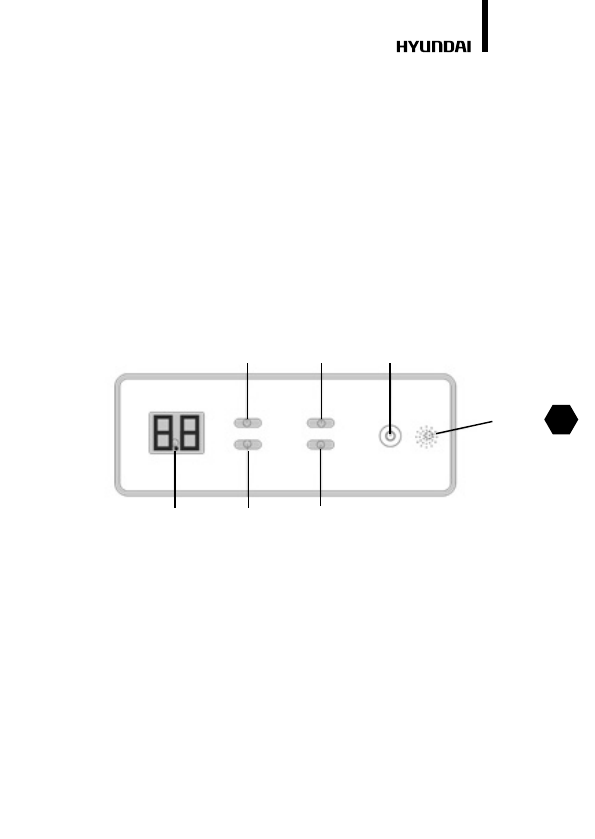

Fig. 2

RUN

DEFROST

TIMER

FAULT

Operation indicator

Temperature

Indicator

defrosting/preheat light

Warning light

Timing light

On/Off

Infrared

signal

receiver
