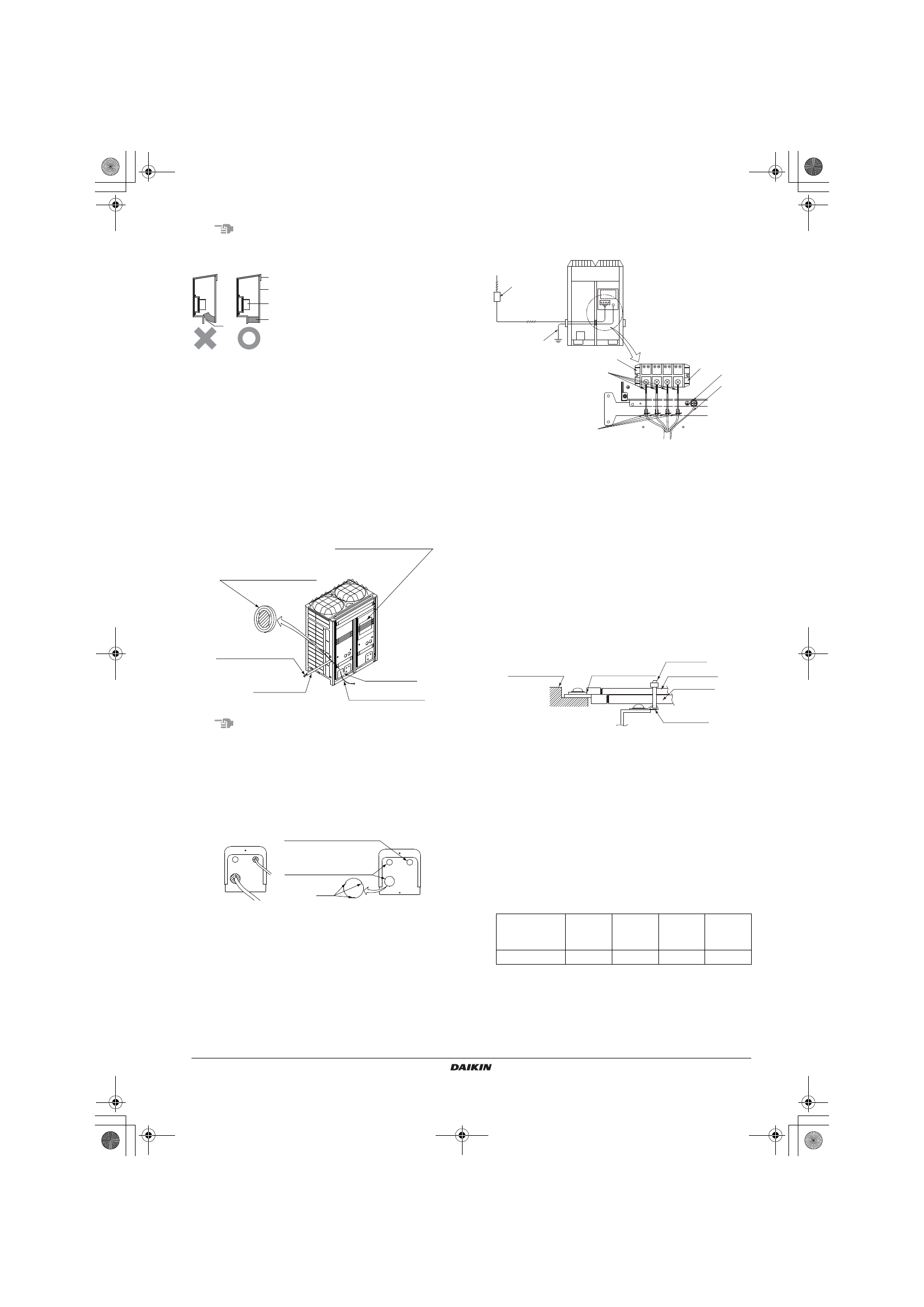

LRYEQ16A7Y1

CONVENI-PACK

4P448939-1A – 2016.07

Installation manual

14

Note

When closing the unit the electrical component box cover, make sure
that the sealing material on the lower back side of the cover is not
caught and bend towards the inside.

1 Electrical component box cover
2 Front side
3 Power supply terminal block
4 Sealing material
5 Moisture and dirt could enter
X Not allowed
O Allowed

8-3 Procedure for Incoming Wiring

• Route high-voltage wiring (power supply wiring, earth wires, and

warning/alarm/operation wiring) through wiring openings located
on the side or front of the unit (knock holes) or on the bottom frame
(knock holes).

• Route low-voltage wiring (for remote operating switches) through

wiring openings (knock holes) located on the front of the unit or
through wiring intakes.

Note

• Open the knock holes with a hammer or the like.
• After knocking out the holes, we recommend you remove any burrs

and paint them using the repair paint to prevent rusting.

• When passing electrical wiring through the knock holes, protect the

wiring with a conduit or bushings, making sure not to damage the
wiring.

• If small animals might enter the unit, block off any gaps (hatching

parts) with material (field supply).

8-4 Procedure for Power Supply Wiring



Procedure for Power Supply Wiring



1 Power supply (3 phase 380~415)
2 Overcurrent circuit breaker (earth leakage circuit breaker), all pole

disconnection switch

3 Earth wire
4 Power supply terminal block
5 Mount insulation sleeves
6 Fix the power supply wiring for phases L1, L2, L3, and N, respec-

tively, to the resin clamp.

7 Earth wire

Perform wiring so that the earth wire will not come in contact with
lead wires of the compressor. Otherwise, noise generated may
have a bad influence on other equipment.

8 Ground terminal
9

• When two wires are connected to a single terminal, connect

them so that the rear sides of the crimp contacts face each
other.

• Also, make sure the thinner wire is on top, securing the two

wires simultaneously to the resin hook using a clamp.

Power circuit, safety device, and cable requirements (X1M~X4M
terminal block)

• A power circuit (see the following table) must be provided for con-

nection of the unit. This circuit must be protected with the required
safety devices, i.e. a main switch, a slow blow fuse on each phase
and an earth leakage circuit breaker.

• When using residual current operated circuit breakers, be sure to

use a high-speed type (1 second or less) 200 mA rated residual
operating current.

• Use copper conductors only.
• Use insulated wire for the power cord.
• Select the power supply cable type and size in accordance with rel-

evant local and national regulations.

• Specifications for local wiring are in compliance with IEC60245.
• Use wire type H05VV when protected pipes are used.
• Use wire type H07RN-F when protected pipes are not used.

1
2

3

4

5

Through-hole cover

Cut the shaded area

Electric wiring label

(Rear side of control
box lid)

Conduit

Piping outlet

High-voltage wiring

Low-voltage wiring

Knockout hole
(For low-voltage wiring)

Knockout hole
(For high-voltage wiring)

Burr

Phase and

frequency

Voltage

Minimum

circuit

amp.

Recom-

mended

fuses

LRYEQ16A7Y1

φ

3, 50Hz

380-415V

35.2A

40A

N

L 1

L 2

L 3

B

1

2

3

4

5

6

8

9

7

Terminal block

Crip style terminal

Wire: narrow

Clamp

Wire: thick

Resin hook
