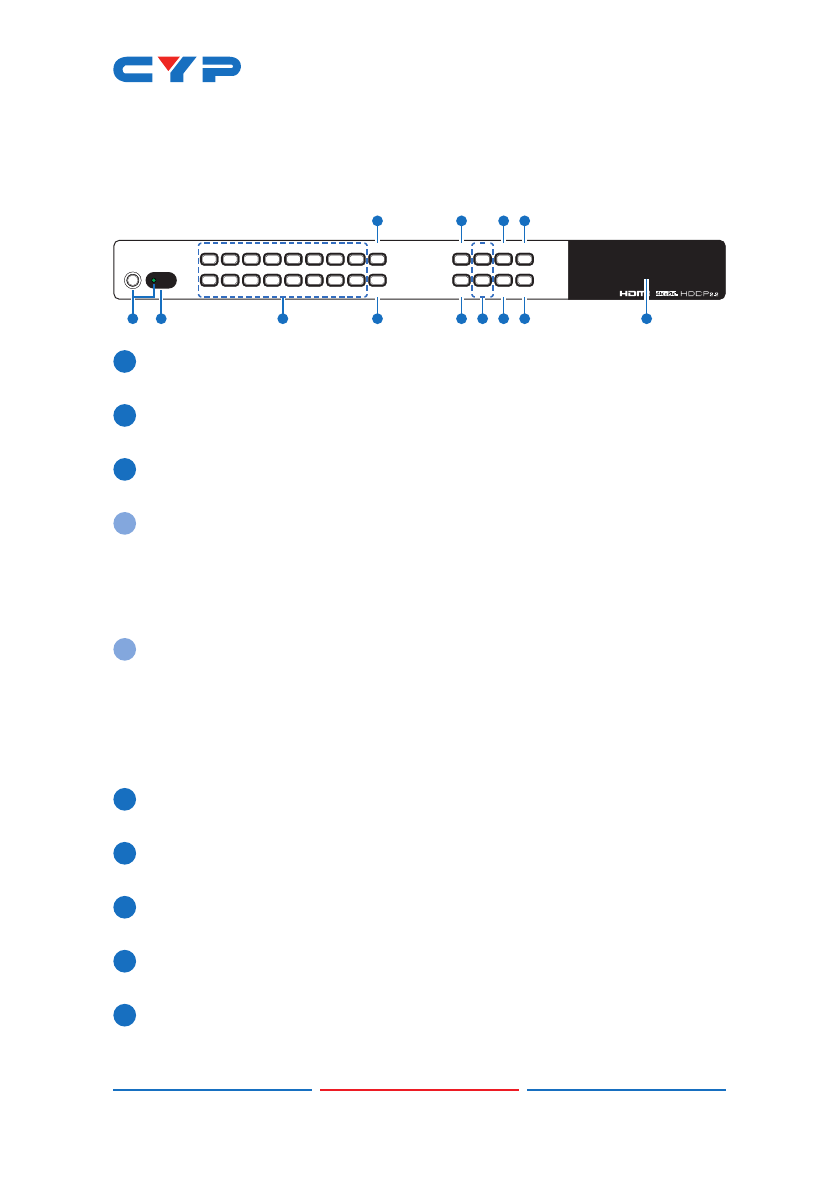

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER
8x8 4K UHD+ Matrix
IN 1
IN 2
IN 3
IN 4
OUT A
OUT B
OUT C
OUT D
CANCEL
IN 5
OUT E
IN 6
OUT F
IN 7
OUT G
IN 8
OUT H
CONFIRM
ENTER
MENU
PRESET
ALL
LOCK
+
-
MUTE
+
1
2
3
5
7
9
11
4
6
8
10
12
13
1
POWER:
Press this button to power the unit on (green LED) or place
it into stand-by mode (red LED).
2
IR WINDOW:
Accepts IR signals from the included IR remote for
control of this unit only.
3
IN 1~8 & OUT A~H:
Press these buttons to configure the video
routing. Behavior depends on the selected Keypad Action Mode.
3a
In Standard Mode:
Press the “OUT” buttons (A~H) of the outputs
you wish to route a source to (the letters will flash in the LCD to
indicate selection). Next, press the “IN” button of the input (1~8)
you wish to route to the selected outputs. Finally, press “CONFIRM”
to confirm your selection and execute the routing change.
3b
In User Mode:
Press the “OUT” button (A~H) of an output you wish
to route a source to (the letter will flash in the LCD to indicate
selection). Next, press the “IN” button of the input (1~8) you wish
to route to the selected output. Repeat this process as many times
as needed to select all new routes. Finally, press “CONFIRM” to
confirm your selections and execute the routing changes.
4
CONFIRM:
Press this button to confirm newly made input/output
routing selections.
5
CANCEL:
Press this button to cancel newly made input/output
routing selections before they have been confirmed.
6
ENTER:
Press to confirm a selection within the LCD menu or to go
deeper into a menu item.
7
MENU:
Press to enter the LCD menu, or to back out from menu
items.
8
PLUS (+) & MINUS (−):
Press to move up and down or adjust
selections within menus.
