5

line-of-sight of the IR Extender.

5

 CONTROL:

Connect directly, or through a network switch, to your

PC/laptop to control the unit via Telnet/WebGUI.

6

 RS-232:

Connect directly to a PC, laptop or other serial control

device to send RS-232 commands to control the unit.

7

 SERVICE:

This slot is reserved for firmware update use only.

8

  DC 24V:

Plug the 24V DC power adapter into the unit and connect

it to an AC wall outlet for power.

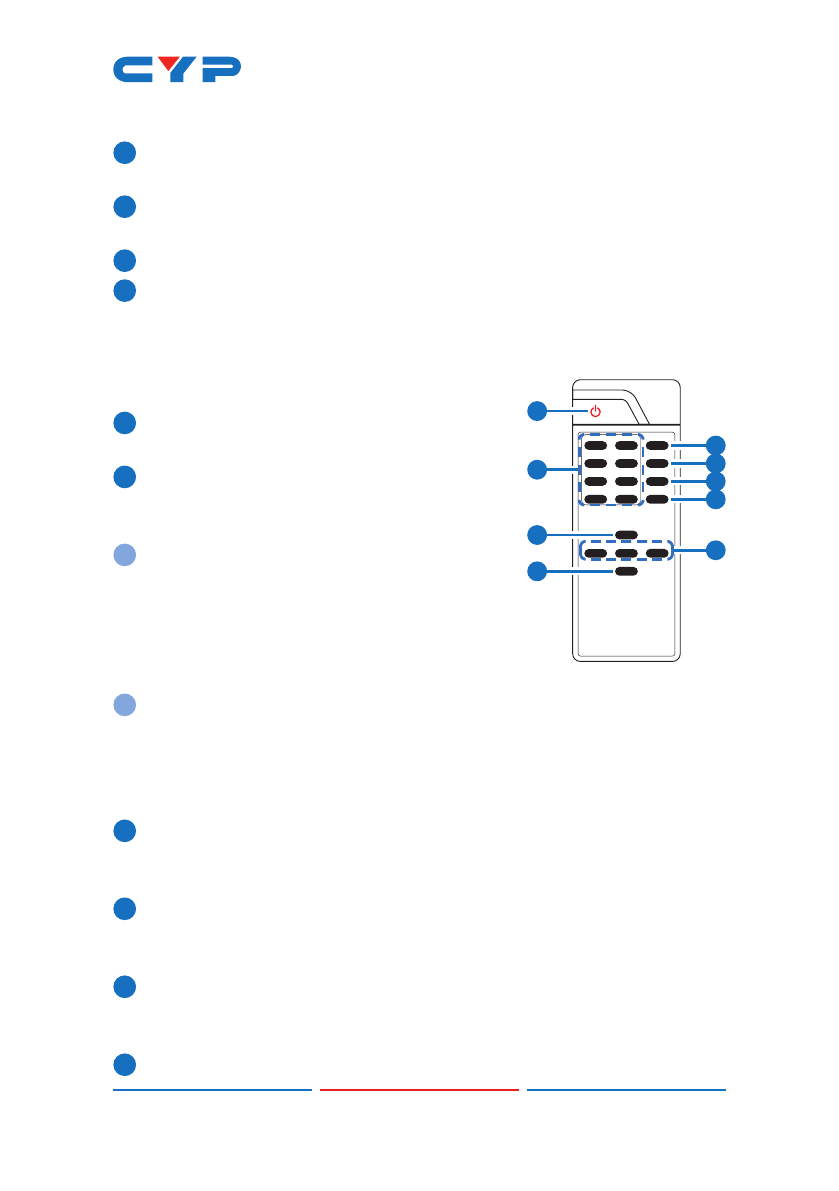

6.3 Remote Control

1

 POWER:

Press to power the unit on or place

it into stand-by mode.

2

  1/A ~ 8/H:

Press these keys to configure the

video routing. Behavior depends on the

selected Keypad Action Mode.

2a

  In Standard Mode:

Press the “OUT” key

followed by the keys (A~H) of the outputs

you wish to route to. Next, press the “IN”

key followed by the input (1~8) you wish to

route to the selected outputs. Finally, press

“ENTER” to confirm your selection.

2b

  In User Mode:

Press the “OUT” key followed by the key (A~H) of the

output you wish to route to. Next, press the “IN” key followed by

the input (1~8) you wish to route to the selected output. Repeat

this process as many times as needed. Finally, press “ENTER” to

confirm your selection.

3

 INFO:

Switches the information displayed on each output’s OSD

between the user customized text and the current video/Ethernet

details.

4

 MUTE:

The “MUTE” button functions as a blank audio/video source.

To use it, follow the standard matrix routing instructions, but use the

“MUTE” button as the input to blank out the selected outputs.

5

 PRESET:

Press to enter the preset call menu in the LCD window.

Press the “+/-” buttons followed by the “ENTER” button to select

and activate the preferred preset.

6

 ALL:

Press this key to select all outputs simultaneously for routing.

PRESET

ALL

INFO

MUTE

- /

 OUT

+ /

IN

ENTER

CANCEL

MENU

CR-177

1 / A

2 / B

3 / C

4 / D

8 / H

5 / E

6 / F

7 / G

1

2

8

9

3

4

5

6

7
