 English |

27

Bosch Power Tools

2 609 141 206 | (14.8.14)

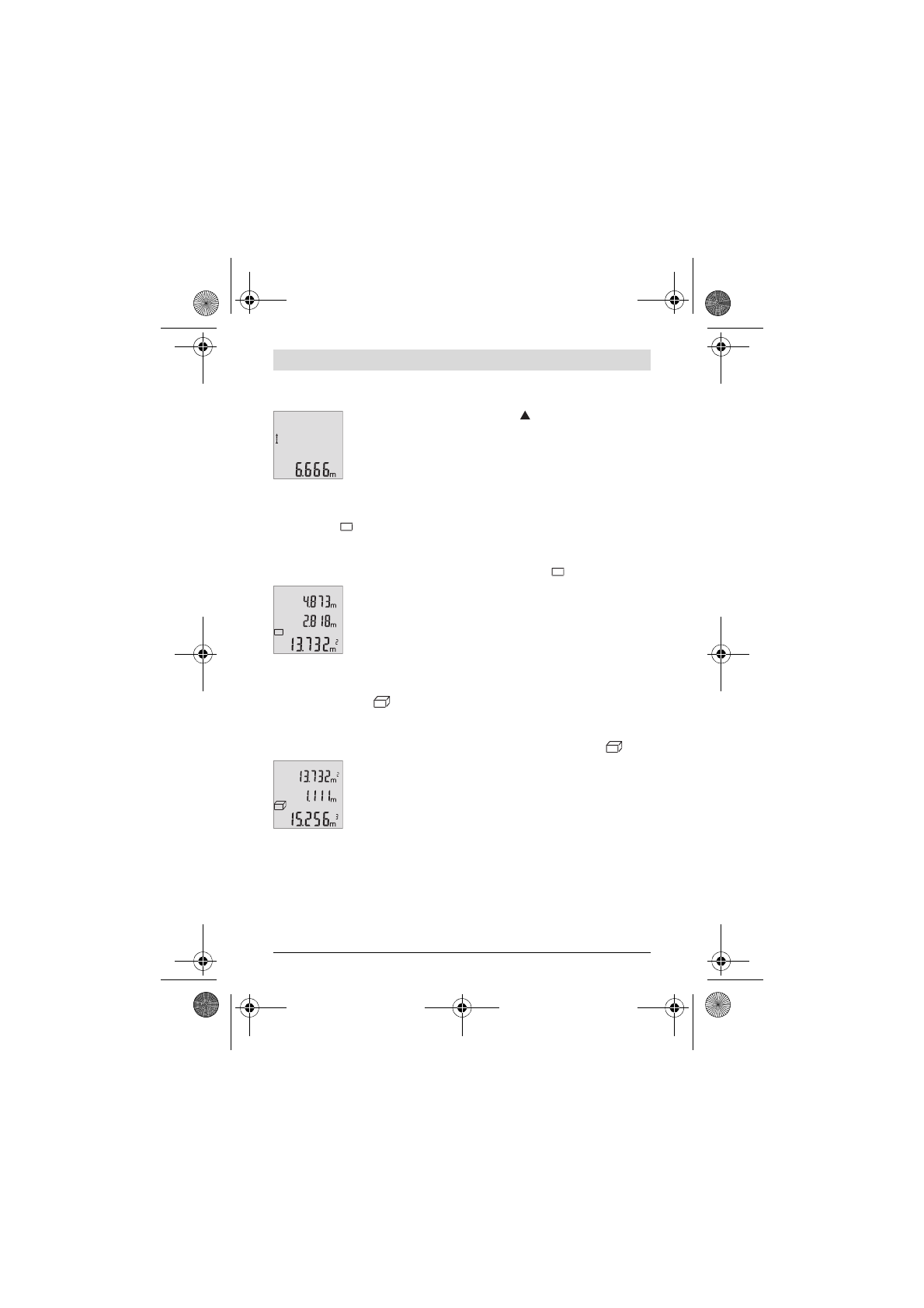

Move the measuring tool until the required distance value is indicated in the bottom
of the display.

Briefly press the measuring button

2

 [

] to end continuous meas-

urement. The last measured value will be shown at the bottom of the
display.

Continuous measurement automatically switches off after 5 mins.

Area Measurement

For area measurements, repeatedly press button

4

 [

Func

] until the indicator for area

measurement

 appears on the display

1

.

Then measure the width and length one after the other as with a length measurement.
The laser beam remains switched on between the two measurements. The distance
to be measured flashes in the indicator for area measurement

.

The first measured value is shown at the top of the display.
After the second measurement has been completed, the area will be
automatically calculated and displayed. The end result is shown at
the bottom of the display, while the individual measured values are
shown above it.

Volume Measurement

For volume measurements, repeatedly press button

4

 [

Func

] until the indicator for

volume measurement

 appears on the display

1

.

Then measure the width, length and depth one after the other as with a length meas-
urement. The laser beam remains switched on between the three measurements. The
distance to be measured flashes in the indicator for volume measurement

.

The first measured value is shown at the top of the display, while the
second measured value is shown below it. After the third measure-
ment has been completed, the calculated area from the two previous
measurements will be displayed at the top of the display.
The end result of the volume measurement is shown at the bottom of
the display, while the last measured value is shown above it.

Simple Pythagoras Measurement (see figure B)

The indirect height measurement is used to measure distances that cannot be meas-
ured directly because an obstacle would obstruct the laser beam or no target surface
is available as a reflector. Correct results are achieved only when the right angles re-
quired for the respective measurement are exactly adhered to (Pythagorean Theo-
rem).
