Note

u

Clean the appliance (see 6.2) .

If  the  appliance  is  installed  in  a  very  damp  environment,

condensate may form on the outside of the appliance.

u

Always see to good ventilation at the installation site.

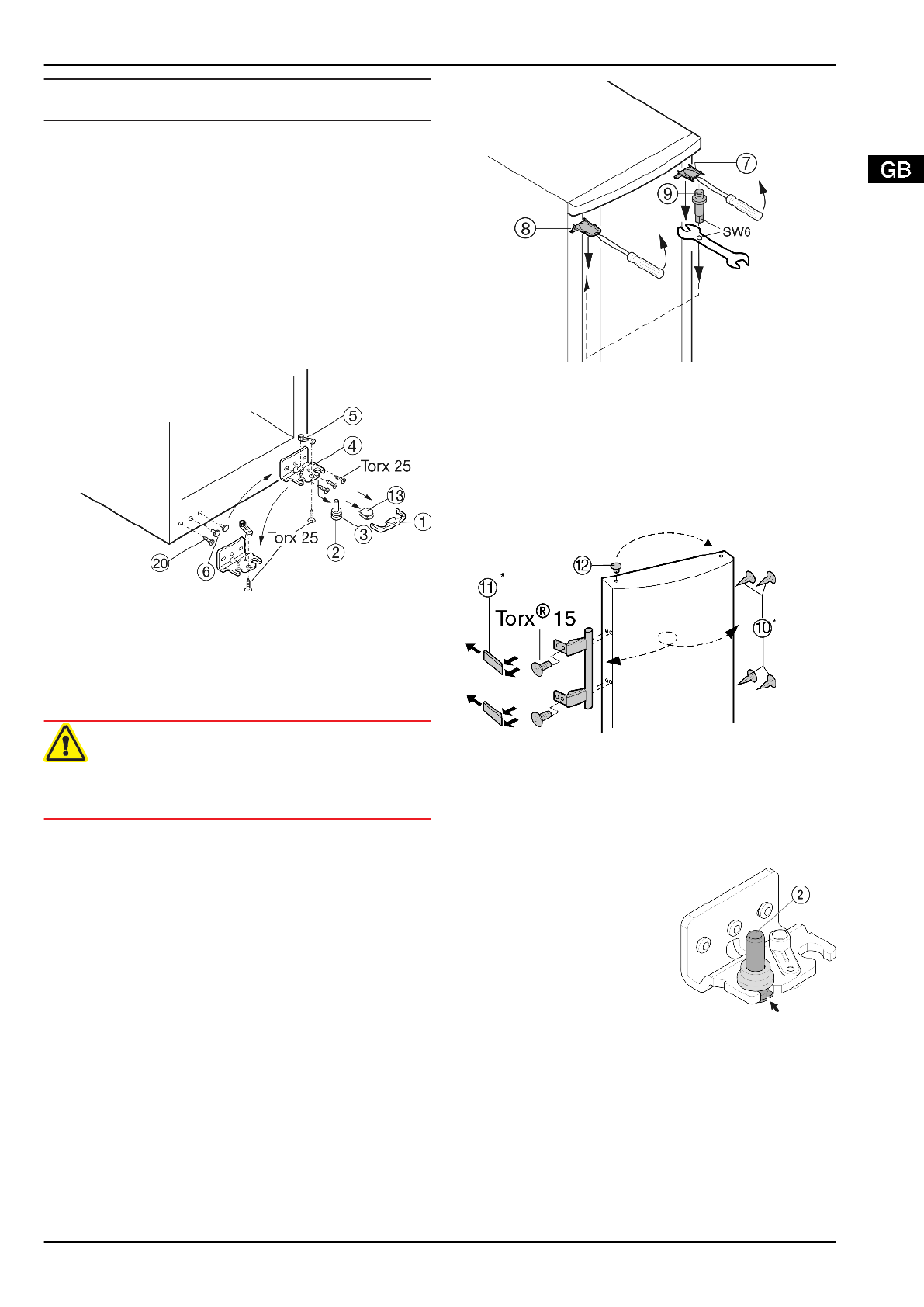

4.3 Changing over the door hinges

You can change over the door hinges if necessary.
Ensure that the following tools are to hand:

q

Torx 25

q

Torx 15

q

Screwdriver

q

Accompanying open-end spanner

q

Second person for fitting work, if needed

Fig. 4

u

Draw safety lock

 Fig. 4 (1) forwards for removal.

u

Remove the cover

 Fig. 4 (13).*

u

If  necessary,  tip  the  appliance  back  a  little  with  the  assis-

tance of a second person for removal of the bearing pin.

u

Pull  out  the  bearing  pin

 Fig. 4 (2) downwards and forwards.

In so doing, pay attention to the hinge bush

 Fig. 4 (3).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the door, tip it at the bottom for removal and detach it.

u

Unscrew the turn hinge

 Fig. 4 (4).

u

Unscrew  the  bearing  part

  Fig.  4  (5),  transfer  it  to  the  oppo-

site hole in the turn hinge and screw it down again.

u

Carefully lift out the plugs

 Fig. 4 (6) and insert them into the

opposite side.

u

Unscrew the screw

 Fig. 4 (20) and insert it into the opposite

side.

u

Screw the bearing bracket

 Fig. 4 (4) onto the new hinge side

tightly (4 Nm) or retighten with the aid of a cordless screw-

driver if necessary.

Fig. 5

u

Disengage  the  top  cover

  Fig.  5  (7)  and  cover  Fig.  5  (8)  in  a

forward  direction  using  a  screwdriver  and  remove  them

downwards at an angle.

u

Unscrew  the  bearing  pin

  Fig.  5  (9)  and  screw  it  into  the

opposite  side  tightly  (4  Nm).  To  do  this,  use  the  Allen

screw on the spanner wrench provided.

u

To re-fit the cover

 Fig. 5 (7) to the side where the bearing pin

is located: insert it at the back and engage it at the front.

u

To  re-fit  the  cover

  Fig.  5  (8)  at  the  opposite  side:  insert  it  at

the back and engage it at the front.

Fig. 6

u

Lift the stopper

 Fig. 6 (12) out of the door bearing bush and

transfer it.

u

Detach  door  handle,  stoppers

  Fig.  6  (10)  and  pressure

plates

 Fig. 6 (11) and transfer to the opposite side.

u

When  fitting  the  pressure  plates,  pay  attention  that  they

engage properly.

u

Attach  the  door  to  the  bearing  pin

  Fig.  5  (9)  and  close  the

door.

u

Slightly  tip  the  appliance

backwards  again  and  rein-

sert

the

bearing

pin

Fig.  4  (2)  together  with  the

hinge  bush

  Fig.  4  (3).  The

notch  on  the  bearing  pin

must face forward.

u

Place  the  cover

  Fig.  4  (13)

on the opposite side.*

Fig. 7

Putting into operation

5
