u

Remove  the  protective  film  from  the  decorative  trims  and

drawer fronts.*

u

Remove all transit supports.

u

Dispose of packaging material (see 4.5) .

NOTICE

Risk of damage due to condensate!

u

Do  not  install  the  appliance  directly  alongside  a  further

refrigerator/freezer.

u

Align  the  appliance  so  that  it

stands firmly and on a level by

applying  the  accompanying

spanner  to  the  adjustable-

height  feet  (A)  and  using  a

spirit level.

u

Then support the door: Extend

the  adjustable  foot  at  the  turn

hinge  (B)  until  it  rests  on  the

floor  and  then  make  a  further

90° turn.

Note

u

Clean the appliance (see 6.2) .

If  the  appliance  is  installed  in  a  very  damp  environment,

condensate may form on the outside of the appliance.

u

Always see to good ventilation at the installation site.

4.3 Changing over the door hinges

You can change over the door hinges if necessary.
Ensure that the following tools are to hand:

q

Torx® 25

q

Torx® 15

q

Screwdriver

q

Cordless screwdriver, if necessary

q

Second person for fitting work, if needed

4.3.1 Detaching the upper door

Note

u

Remove  any  food  from  the  door  racks  before  removing  the

door, so that no food falls out.

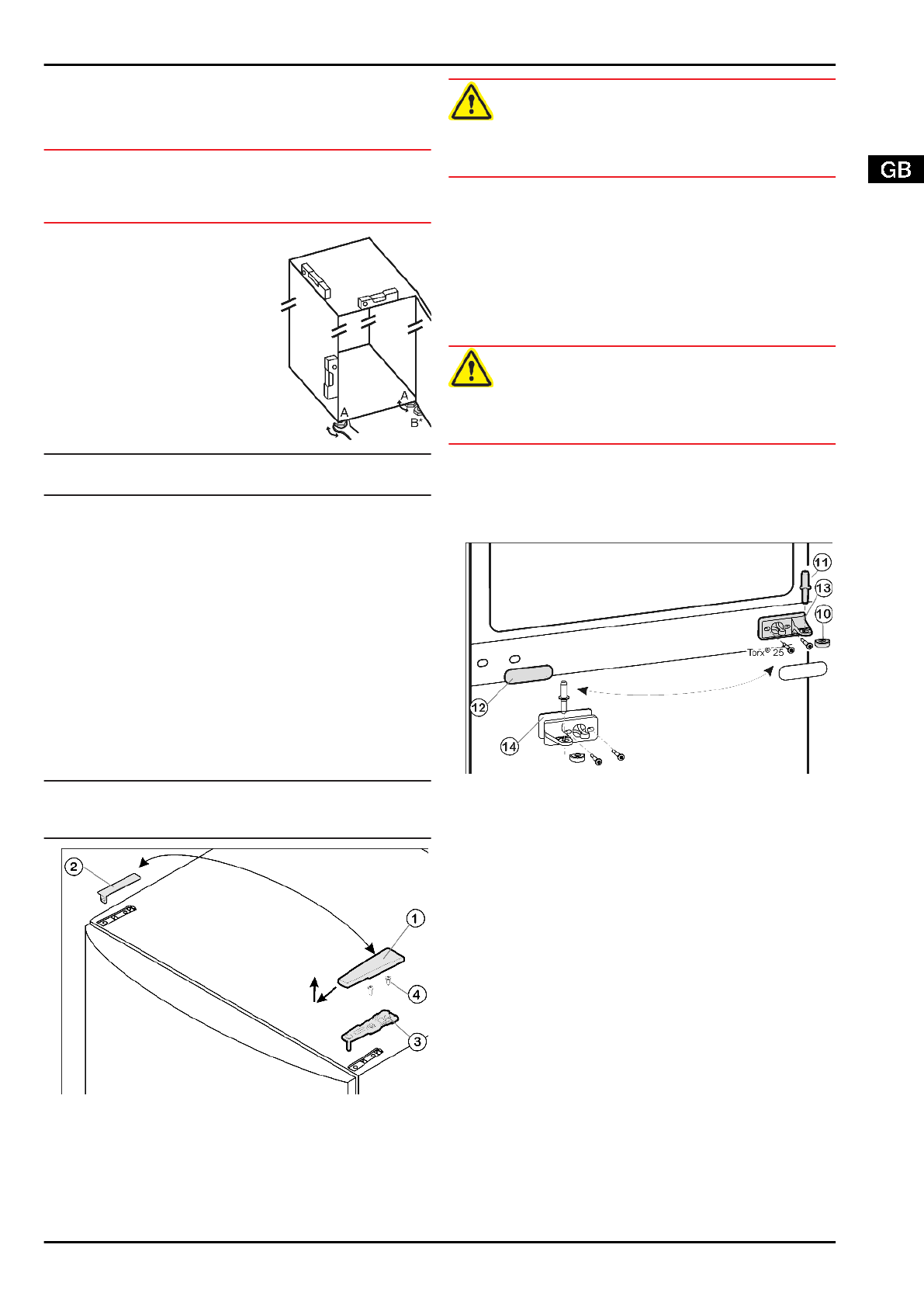

Fig. 4

u

Close the upper door.

u

Pull off the cover

 Fig. 4 (1) forwards and upwards.

u

Lift off the cover

 Fig. 4 (2).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Unscrew  the  upper  turn  hinge

  Fig.  4  (3)(2x  Torx®  25)

Fig. 4 (4) and lift it off.

u

Lift up the upper door and set it aside.

4.3.2 Detaching the lower door

u

Close the lower door.

u

Draw the middle bearing pin

 Fig. 5 (11) out of the turn hinge

and lower door.

u

Remove the plastic cap

 Fig. 5 (10).

CAUTION

Risk of injury if the door tips!

u

Take good hold of the door.

u

Set down the door carefully.

u

Open the lower door.

u

Unscrew the middle turn hinge (2x Torx® 25).

 Fig. 5 (13)

u

Lift up the door and set it aside.

4.3.3 Transferring the middle bearing elements

Fig. 5

u

Carefully detach the cover panel

 Fig. 5 (12).

u

Turn  the  middle  turn  hinge

  Fig.  5  (13)  with  the  washer

Fig. 5 (14) through 180° and screw it firmly into place on the

new hinge side (with 4 Nm).

u

Turn  the  cover  panel

  Fig.  5  (12)  through  180°  and  snap  it

into place again on the new handle side.
