4.4 Insertion into a row of kitchen units

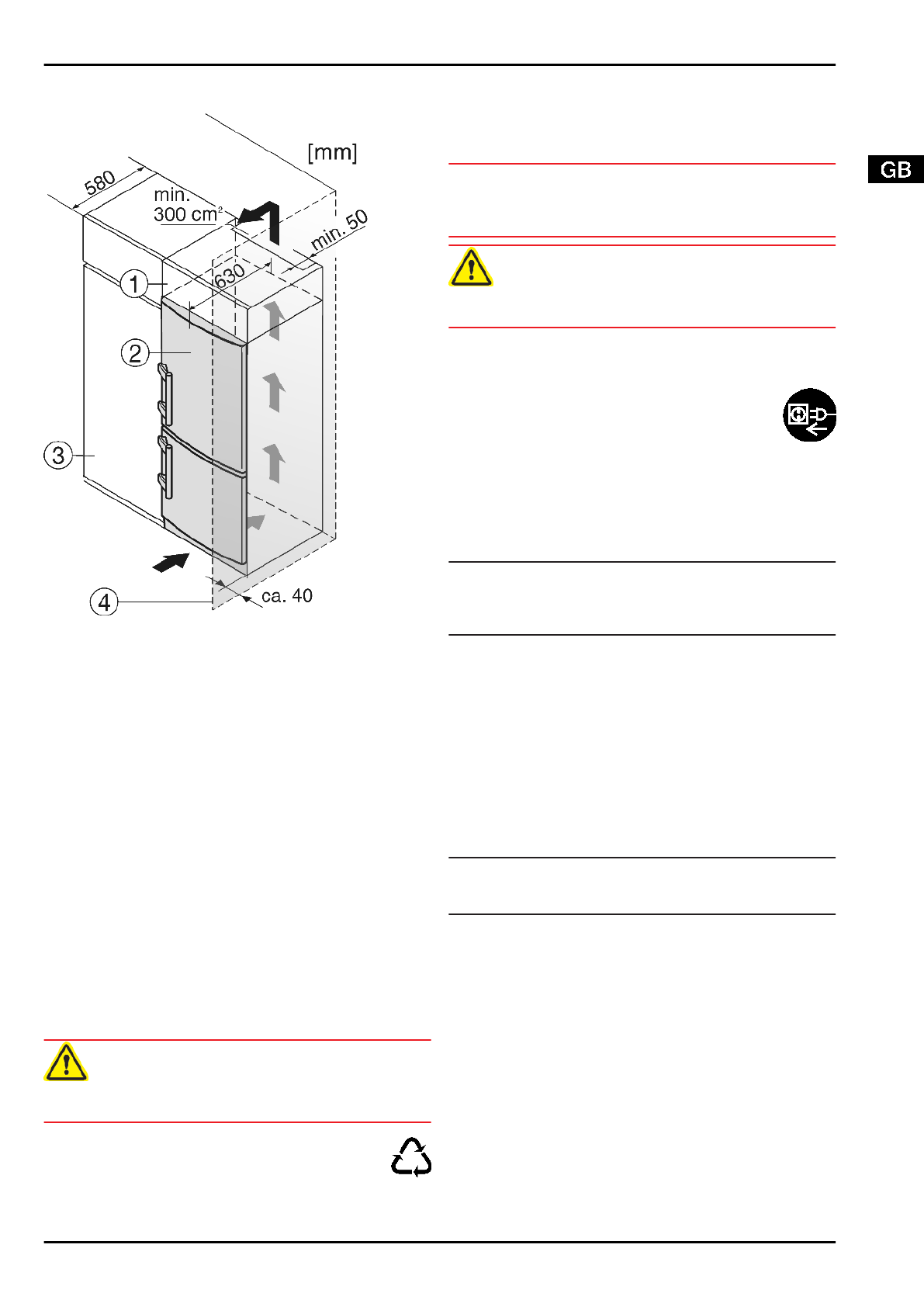

Fig. 9

(1) Stack cabinet

(3) Kitchen cabinet

(2) Appliance

(4) Wall

The  appliance  can  be  inserted  into  a  row  of  kitchen  units.  To

match the appliance

 Fig. 9 (2) to the height of the row of units,

a suitable stack cabinet

 Fig. 9 (1) can be fitted above the appli-

ance.
When  inserting  the  appliance  into  a  row  of  kitchen  units  (max.

depth  580  mm),  the  appliance  can  be  installed  directly  next  to

the  kitchen  unit

  Fig.  9  (3).  The  appliance  door  projects  relative

to  the  front  of  the  kitchen  unit  by  34  mm   at  the  side  and  by

50  mm  in  the  middle  of  the  appliance.  It  can  be  opened  and

closed perfectly as a result.
Important for the ventilation:

-

At the back of the stack cabinet there has to be a ventilation

duct  of  at  least  50  mm  depth  throughout  the  width  of  the

stack cabinet.

-

The  ventilation  space  under  the  ceiling  has  to  be  at  least

300 cm

2

.

If  the  appliance  is  installed  with  the  hinges  next  to  a  wall

Fig. 9 (4), the distance between appliance and wall has to be at

least  40  mm.  This  corresponds  to  the  projection  of  the  handle

when the door is open.

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

u

Do not allow children to play with packing material.

The packaging is made of recyclable materials:

-

corrugated board/cardboard

-

expanded polystyrene parts

-

polythene bags and sheets

-

polypropylene straps

-

nailed wooden frame with polyethylene panel*

u

Take the packaging material to an official collecting point.

4.6 Connecting the appliance

NOTICE

Risk of damage to the electronic control system!

u

Do  not  use  stand-alone  inverters  (conversion  of  d.c.  to  a.c./

three-phase) or energy saving plugs.

WARNING

Fire and overheating hazard!

u

Do not use extension cables or multiple socket outlets.

The  type  of  current  (alternating  current)  and  voltage  at  the

installation site have to conform with the data on the type plate

(see Appliance at a glance).

Connect  the  appliance  only  with  a  properly  installed

socket outlet with earthing contact. The socket outlet

must be fused with 10 A or higher.
It must be easily accessible so that the appliance can

be quickly disconnected from the supply in an emer-

gency.

u

Check the electrical connection.

u

Plug in the power plug.

4.7 Switching on the appliance

Note

u

To  switch  on  the  entire  appliance  it  is  necessary  only  to

switch on the freezer compartment. In so doing, the refriger-

ator compartment is automatically switched on as well.

Put  the  appliance  into  operation  about  2  hours  before  first

loading food to be frozen.

4.7.1 Switching on the freezer compartment

u

PressOn/Off button, freezer compartment

 Fig. 3 (8).

w

The appliance is switched on. The refrigerator compartment

temperature  display  indicates  the  set  temperature.  The

freezer  compartment  temperature  display  and  the  alarm

button flash until the temperature is sufficiently low.

4.7.2 Switching on the refrigerator compart-

ment

Note

u

When  the  refrigerator  compartment  is  switched  on,  the

freezer compartment is automatically switched on as well.

u

Press On/Off button, refrigerator compartment

 Fig. 3 (1).

w

The interior light is on when the door is open.

w

The  temperature  display  shines.  Refrigerator  compartment

and freezer compartment are switched on.

5 Control

5.1 Door alarm

If the door is open longer then 60 s, the audible alarm sounds.
The  audible  alarm  is  automatically  silenced  when  the  door  is

closed.

5.1.1 Muting the door alarm

The  audible  alarm  can  be  muted  when  the  door  is  open.  The

sound  switch-off  function  is  active  as  long  as  the  door  is  left

open.
